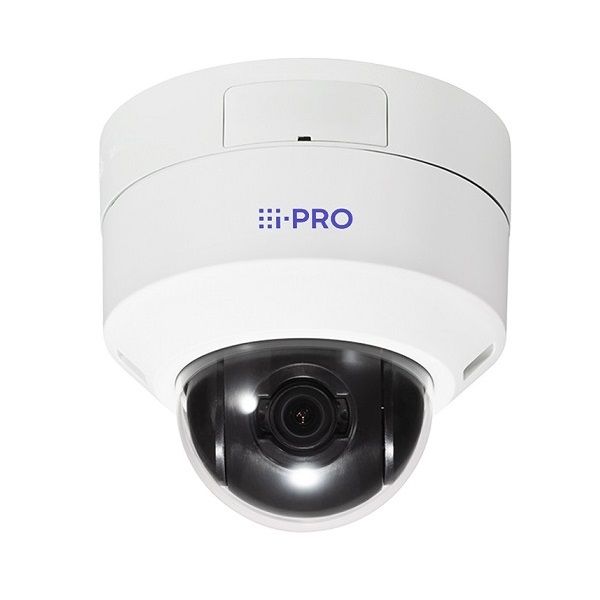

Camera IP Dome 2.0 Megapixel I-PRO WV-U61300-ZY
- Cảm biến hình ảnh: Approx. 1/2.8 type CMOS image sensor.
- Độ phân giải: 2.0 Megapixel.
- Độ nhạy sáng tối thiểu:
+ Color: 0.01 lx (50IRE, F1.3, 1/30s);
+ Color: 0.001 lx (50IRE, F1.3, 16/30s);
+ BW: 0.004 lx (50IRE, F1.3, 1/30s);
+ BW: 0.0003 lx (50IRE, F1.3, 16/30s).
- Chuẩn nén hình ảnh: H.265/H.264/JPEG.
- Hỗ trợ các tính năng camera: BLC, HLC, Super Dynamic 144dB.
- Zoom quang: 3.1x.
- Hỗ trợ tính năng iA (intelligent Auto).
- Nhiệt độ hoạt động: -10°C to +50°C.
Thông số kỹ thuật
| Camera | |
| Image Sensor | Approx. 1/2.8 type CMOS image sensor |
| Minimum Illumination | Color: 0.01 lx (50IRE, F1.3, 1/30s) Color: 0.001 lx (50IRE, F1.3, 16/30s) BW: 0.004 lx (50IRE, F1.3, 1/30s) BW: 0.0003 lx (50IRE, F1.3, 16/30s) |
| White Balance | ATW1/ATW2/AWC |
| Shutter Speed | [60 fps Mode] 1/60 Fix to 1/10000 Fix [30 fps/15 fps mode] 1/30 Fix to 1/10000 Fix [50 fps Mode] 1/50 Fix to 1/10000 Fix [25 fps/12.5 fps mode] 1/25 Fix to 1/10000 Fix |
| Intelligent Auto | On/Off |
| Super Dynamic | On / Off, The level can be set in the range of 0 to 31. |
| Dynamic Range | Max.144 dB (Super Dynamic: On, Level 31) |
| Adaptive Black Stretch | The level can be set in the range of 0 to 255. |
| Back light compensation/High light compensation | BLC (Back light compensation)/HLC (High light compensation)/Off The level can be set in the range of 0 to 31 (only when Super dynamic/Intelligent Auto: Off) |
| Fog compensation | On/Off, The level can be set in the range of 0 to 8 (only when Intelligent auto/auto contrast adjust: Off) |
| Maximum gain (AGC) | The level can be set in the range of 0 to 11. |
| Color/BW (ICR) | Off/On/Auto1/Auto2/Auto3 (SCC) |
| Digital Noise Reduction | The level can be set in the range of 0 to 255. |
| Video Motion Detection (VMD) | On/Off, 4 areas available |
| Scene Change Detection (SCD) | On/Off, 1 areas available |
| Audio Detection | On/Off |
| Privacy Zone | On/Off, Up to 8 zones available |
| VIQS | On/Off, Up to 8 zones available |
| Image Stabilizer | On/Off (Built-in gyro sensor) |
| Camera Title (OSD) | On/Off, Up to 40 characters (alphanumeric characters, marks) |
| Focus Adjustment | Auto focus |
| Lens | |
| Optical zoom | 3.1x (Motorized zoom / Motorized Focus) |
| Extra zoom | Max. 4x (3.1 to 4x: When resolution is 1280 x 720) |
| Focal Length | 2.9 - 9 mm {1/8 inches - 11/32 inches} |
| Angular Field of View | [16 : 9 mode] Horizontal : 36° (TELE) – 113° (WIDE), Vertical : 20° (TELE) – 60° (WIDE) [4 : 3 mode] Horizontal : 26° (TELE) – 82° (WIDE), Vertical : 20° (TELE) – 60° (WIDE) |
| Maximum Aperture Ratio | 1 : 1.3 (WIDE) – 1 : 2.5 (TELE) |
| Focus Range | 0.3 m {11-13/16 inches} – ∞ |
| DORI | |
| Detect (25ppm/8ppf) | Wide: 25.4m / 83.4 ft, Tele: 118.2 m / 387.7 ft |
| Observe (62.5ppm / 19ppf) | Wide: 10.2 m / 33.4 ft, Tele: 47.3 m / 155.1 ft |
| Recognize (125ppm / 38ppf) | Wide: 5.1 m / 16.7 ft, Tele: 23.6 m / 77.5 ft |
| Identify (250ppm/76ppf) | Wide: 2.5m / 8.3 ft, Tele: 11.8 m / 38.8 ft |
| System on Chip (SoC) | |
| System on Chip (SoC) | Ambarella CV25M |
| Adjusting Angle | |
| Adjusting Angle | Horizontal : 0 to +350°, Vertical : 0 to +90°, Yaw : 0° |
| Pan/tilt | |
| Panning Range | 0 – +350° |
| Panning Speed | Manual: Approx. 0.065°/s – 150°/s , Preset: Up to approx. 150°/s |
| Tilting Range | Operational 0 – +90° |
| Tilting Speed | Manual: Approx. 0.065°/s –150°/s Preset: Up to approx. 150°/s |
| Preset Positions | 256 positions |
| Auto Mode | Auto pan/Preset sequence/Patrol |
| Self Return | 10s/20s/30s/1 min/2 min/3 min/5 min/10 min/20 min/30 min/60 min |
| Browser GUI | |
| Camera Control | Brightness, AUX On/Off |
| Audio | Mic (Line) Input: On/Off Volume adjustment: Low/Middl /High Audio Output: On/Off Volume adjustment: Low/Middl/High |
| GUI/Setup Menu Language | English, Italian, French, German, Spanish, Portuguese, Russian, Chinese, Japanese |
| Browser | Microsoft Edge, Firefox, Google Chrome |
| Network | |
| Network IF | 10 Base-T/100 Base-TX, RJ45 connector |
| Resolution H.265/ H.264 JPEG (MJPEG) | [16 : 9 mode (60 fps mode)] , [16 : 9 mode (30 fps mode)], [16 : 9 mode (50 fps mode)] , [16 : 9 mode (25 fps mode)] 1920x1080, 1280x720, 640x360, 320x180 [4 : 3 mode (30 fps mode)], [4 : 3 mode (25 fps mode)] 1280x960, VGA, QVGA [4 : 3 mode (15 fps mode)], [4 : 3 mode (12.5 fps mode)] 2048x1536 , 1280x960, VGA, QVGA |
| H.265/H.264 | [Transmission Mode] Constant bit rate/VBR/Frame rate/Best effort [Transmission Type] Unicast port (AUTO) / Unicast port (MANUAL)/Multicast |
| JPEG | [Image Quality] 10 steps |
| Smart Coding | GOP (Group of pictures control): Off/Low (Variable GOP 1s-8s)/Mid (Variable GOP 4s-16s)/ Advanced (Fixed GOP 60s w/1s key-frame)/Frame rate control (Variable GOP 4s-16s with frame rate control) *Advanced and Frame rate control are only available with H.265. Smart VIQS: On(High)/On(Low)/Off, Smart P-picture control: On/Off |
| Audio Compression | G.726 (ADPCM): 16 kbps/32 kbps G.711: 64 kbps AAC-LC: 64 kbps/96 kbps/128 kbps |
| Audio Transmission Mode | Off/Mic (Line) input/Audio output/Interactive (Half duplex)/Interactive (Full duplex) |
| Supported Protocol | IPv6: TCP/IP, UDP/IP, HTTP, HTTPS, SSL/TLS, SMTP, DNS, NTP, SNMPv1/v2/v3, DHCPv6, RTP, MLD, ICMP, ARP, IEEE 802.1X, DiffServ, SFTP, MQTT, LLDP IPv4: TCP/IP, UDP/IP, HTTP, HTTPS, SSL/TLS, RTSP, RTP, RTP/RTCP, SMTP, DHCP, DNS, DDNS, NTP, SNMPv1/v2/v3, UPnP, IGMP, ICMP, ARP, IEEE 802.1X, DiffServ, SRTP, SFTP, MQTT, LLDP, NTCIP |
| No. of Simultaneous Users | Up to 14 users (Depends on network conditions) |
| Secure | FIPS 140-2 level 3 Certified Secure Element (NXP® EdgeLock® SE050F), Device Certificate GlobalSign® pre-installed, User authentication, Host authentication, HTTPS, 802.1X Support, Data encryption |
| SDXC/SDHC/SD Memory Card (Option) | H.265/H.264 recording: Manual REC/Alarm REC (Pre/Post)/Schedule REC/Backup upon network failure JPEG recording: Manual REC/Alarm REC (Pre/Post)/Backup upon network failure Compatible SDXC/SDHC/SD Memory Card: microSDXC memory card: 64GB, 128GB, 256GB, 512GB microSDHC memory card: 4GB, 8GB, 16GB, 32GB microSD memory card: 2GB |
| Mobile Terminal Compatibility | iPad, iPhone (iOS 8.0 or later), Android™ terminals |
| ONVIF® Profile | G/S/T |
| Alarm | |
| Alarm Source | 3 terminals input, VMD alarm, Command alarm, Audio detection alarm |
| Alarm Actions | SDXC/SDHC/SD memory recording, E-mail notification, HTTP alarm notification Indication on browser, TCP alarm notification output |
| Input/Output | |
| Audio Input | ø3.5 mm stereo mini jack For microphone input: Recommended applicable microphone: Plug-in power type (Sensitivity of microphone: -5 dB to –38 dB (0 dB=1 V/Pa, 1 kHz)) Input impedance: Approx. 2 kΩ (unbalanced) Supply voltage: 2.5 V ±0.5 V For line input: Input level: Approx. –10 dBV |
| Audio Output | ø3.5 mm stereo mini jack (monaural output) Output impedance : Approx. 600 Ω (unbalanced) Output level : –20 dBV |
| External I/O Terminals | ALARM IN 1 (Alarm input 1/ Black & white input/ Auto time adjustment input) (x1) ALARM IN 2 (Alarm input 2/ ALARM OUT) (x1) ALARM IN 3 (Alarm input 3/ AUX OUT) (x1) |
| General | |
| Safety | UL (UL62368-1), c-UL (CSA C22.2 No.62368-1), CE, IEC62368-1 |
| EMC | FCC (Part15 ClassA), ICES-003 Issue 7 ClassA, EN55032 ClassA, EN55035 |
| Power Source and Power Consumption | DC12V, PoE (IEEE802.3af) DC12V: 890mA/Approx. 10.7W PoE DC 48V: 250mA/ Approx.12.0W (Class 0 device) |
| Ambient Operating Temperature | -10°C to +50°C (+14°F to +122°F) (Power On range: 0°C to +50°C {+32°F to +122°F}) |
| Ambient Operating Humidity | 10 to 90 % (no condensation) |
| Anti-Condensation System | Temish element |
| Water and Dust Resistance | IP66, IEC60529 measuring standard compatible, Type 4X(UL50E), NEMA 4X compliant |
| Shock Resistance | IK10 (IEC 62262) |
| Other standard support | NEMA TS2(2.2.7-2.2.9) |
| Dimensions | ø131 mm x 128 mm (H) |
| Mass (Approx.) | Approx. 0.8 kg |
| Finish | Main body:Resin, i-PRO white Dome section: polycarbonate resin, Clear |
- Bảo hành: 12 tháng.
