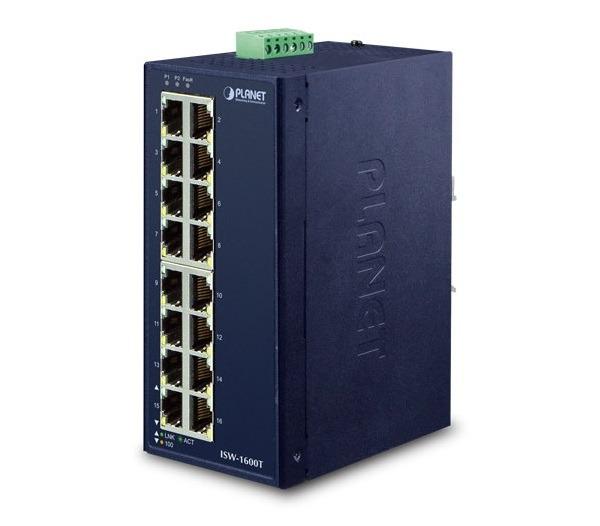

16-Port 10/100TX Fast Ethernet Switch PLANET ISW-1600T
Physical Port
- 16-port 10/100BASE-TX RJ45 with auto MDI/MDI-X function.
Layer 2 Features
- Complies with IEEE 802.3 10BASE-T, IEEE 802.3u 100BASE-TX Ethernet standard.
- Supports auto-negotiation and 10/100Mbps half/full duplex mode.
- Prevents packet loss with back pressure (half-duplex) and IEEE 802.3x pause frame flow control (full-duplex).
- Complies with IEEE 802.3az Energy Efficient Ethernet (EEE).
- IEEE 802.1p CoS.
- Supports 16K MAC address.
- Automatic address learning and address aging.
Industrial Case and Installation
- IP30 metal case.
- DIN-rail and wall-mount designs.
- 12 to 48V DC, redundant power with reverse polarity protection.
- 24V AC power input.
- Supports 6000 VDC Ethernet ESD protection.
- -40 to 75 degrees C operating temperature.
- Free fall, shock-proof and vibration-proof for industries.
Specifications
| Hardware | |
| Fast Ethernet Copper Ports | 16 10/100BASE-TX RJ45 auto-MDI/MDI-X ports |
| Switch Architecture | Store-and-Forward |
| Switch Fabric | 3.2Gbps (non-blocking) |
| Throughput (packet per second) | 2.38Mpps@ 64 bytes |
| Address Table | 16K entries, automatic source address learning and aging |
| Shared Data Buffer | 4Mbits |
| Flow Control | IEEE 802.3x pause frame for full-duplex Back pressure for half-duplex |
| ESD Protection | 6KV DC |
| Enclosure | IP30 metal case |
| Installation | DIN-rail kit and wall-mount kit |
| Connector | Removable 6-pin terminal block for power input Pin 1/2 for Power 1, Pin 3/4 for fault alarm, Pin 5/6 for Power 2 |
| Alarm | One relay output for power failure. Alarm relay current carry ability: 1A @ 24V DC |
| Dimensions (W x D x H) | 66 x 107 x 152 mm |
| Weight | 750g |
| Power Requirements | Dual 12~48V DC, 24V AC |
| Power Consumption | Max. 5.3 watts/18BTU (Ethernet full loading) |
| Standards Conformance | |
| Regulatory Compliance | FCC Part 15 Class A, CE |
| Stability Testing | IEC60068-2-32 (free fall) IEC60068-2-27 (shock) IEC60068-2-6 (vibration) |
| Standards Compliance | IEEE 802.3 10BASE-T IEEE 802.3u 100BASE-TX IEEE 802.3x flow control and back pressure IEEE 802.1p Class of Service IEEE 802.3az Energy Efficient Ethernet (EEE) |
| Environment | |
| Operating Temperature | -40 ~ 75 degrees C |
| Storage Temperature | -40 ~ 85 degrees C |
| Humidity | 5 ~ 95% (non-condensing) |
- Sản xuất tại Đài Loan.
- Bảo hành: 12 tháng.
