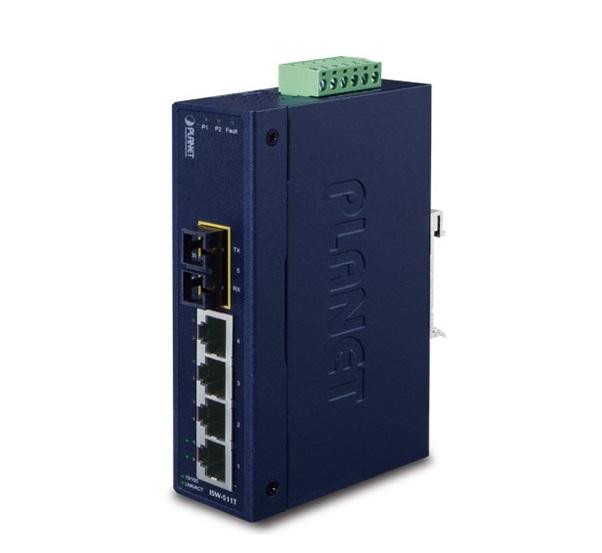

4-Port 10/100Base-TX + 1-Port 100Base-FX Switch PLANET ISW-511TS15
Physical Port
- 1-port 100Base-FX interface for up to 15km (single-mode fiber 9/125µm) transmission distance
Layer 2 Features
- Complies with IEEE 802.3, IEEE 802.3u 10/100Base-TX, 100Base-FX Ethernet standard
- Supports auto negotiation and 10/100Mbps half / full duplex mode for each copper port
- High performance Store and Forward architecture
- Prevents packet loss with back pressure (half-duplex) and IEEE 802.3x pause frame flow control (full-duplex)
- Backplane (Switching Fabric): 1Gbps
- Integrated address look-up engine, supports 2K absolute MAC addresses
- 1Mbit on-chip frame buffer
- Automatic address learning and address aging
- CSMA / CD Protocol
Specifications
| Hardware | |
| Copper | Ports 4 x 10/100Base-TX, auto negotiation, auto-MDI / MDI-X Cable 10Base-T: 2-pair UTP Cat. 3, 4, 5 cable (100meters, max.) 100Base-TX: 2-pair UTP Cat. 5 cable (100meters, max.) |
| Optical | Port: 1 x 100Base-FX Cable: 9/125μm fiber Mode: Single-mode Distance: 15km Frequency: 1310nm Launch Power: Max. 0dBm, Min. -20dBm Receive Sensitivity: -32dBm Max. Input Power: 0dBm |
| Dimensions (W x D x H) | 135 x 97 x 32 mm |
| Weight | 436g |
| Power Requirements | 12~48V DC Redundant power with polarity reverse protection function |
| Power Consumption / Dissipation | 13.7 watts / 46 BTU |
| Installation | DIN rail kit and wall mount ear |
| Alarm | Provides one relay output for power failure Alarm relay current carry ability: 1A @ DC 24V |
| Switch | |
| Switch Processing Scheme | Store-and-Forward |
| Address Table | 2K entries |
| Buffer | 1Mbit |
| Flow Control | Back pressure for half duplex, IEEE 802.3x pause frame for full duplex |
| Switch Fabric | 1Gbps |
| Throughput (Packet Per Second) | 0.74Mpps @ 64Bytes |
| Standards Conformance | |
| Standards Compliance | IEEE 802.3 Ethernet, 10Base-T IEEE 802.3u Fast Ethernet, 100Base-TX, 100Base-FX IEEE 802.3x full-duplex flow control |
| Temperature | Operating: -40~75 degrees C Storage: -40~85 degrees C |
| Humidity Operating | Operating: 5~90% Storage: 5~90% (Non-condensing) |
- Sản xuất tại Đài Loan.
- Bảo hành: 12 tháng.
