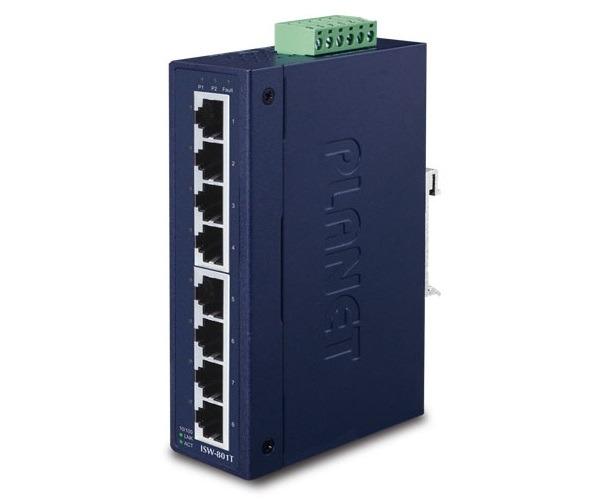

8-Port 10/100TX Fast Ethernet Switch PLANET ISW-801T
Physical Port
- 8-port 10/100BASE-TX RJ45 with auto MDI/MDI-X function
Layer 2 Features
- Complies with IEEE 802.3 10BASE-T, IEEE 802.3u 100BASE-TX Ethernet standard
- Supports auto-negotiation and 10/100Mbps half/full duplex mode
- High performance Store and Forward architecture; runt/CRC filtering eliminates erroneous packets to optimize the network bandwidth
- Prevents packet loss with back pressure (half-duplex) and IEEE 802.3x pause frame flow control (full-duplex)
- Backplane (switching fabric): 1.6Gbps
- Integrated address look-up engine, supporting 1K absolute MAC addresses
- Automatic address learning and address aging
Industrial Case & Installation
- IP30-rated metal case
- DIN rail and wall-mount design
- 12 to 48V DC, redundant power with polarity reverse protection function and connective removable terminal block for master and slave power, 24V AC power support
- Lower Power Consumption device in full load operation mode
- Supports EFT protection for 6000 VDC for power line
- Supports 6000 VDC Ethernet ESD protection
- -40 to 75 degrees C operating temperature
- Free fall, shock-proof and vibration-proof for industries
Specifications
| Hardware | |
| 10/100BASE-TX Auto MDI/MDIX Ports | 8 |
| LED Indicators | 3 x LED for System and Power Green: DC Power 1 Green: DC Power 2 Green: Power Fault 1x LED for each Copper Port Green: 10/100 LNK/ACT |
| Enclosure | IP30-rated metal case |
| Dimensions (W x D x H) | 135 x 87 x 32 mm |
| Weight | 428g |
| ESD Protection | 6KV DC |
| EFT Protection | 6KV DC |
| Power Requirements | 12~48V DC, redundant power with polarity reverse protection function, 24V AC power support |
| Power Consumption/Dissipation | 2.1 watts/7.1BTU |
| Installation | DIN rail kit and wall-mount ear |
| Alarm | Provides one relay output for power failure Alarm relay current carry ability: 3A @ DC 30V |
| Connector | Removable 6-pin terminal block Pin 1/2 for Power 1; Pin 3/4 for fault alarm; Pin 5/6 for Power 2 |
| Switch | |
| Switch Processing Scheme | Store-and-Forward |
| Address Table | 1K |
| Buffer Memory | Embedded 448K bits packet buffer |
| Flow Control | Back pressure for half duplex, IEEE 802.3x pause frame for full duplex |
| Switch Fabric | 1.6Gbps |
| Throughput (packet per second) | 1.19Mpps |
| Network Cables | 10BASE-T: 2-pair UTP Cat. 3, 4, 5, up to 100 meters 100BASE-TX: 2-pair UTP Cat. 5, 5e up to 100 meters |
| Standards Conformance | |
| Standards Compliance | IEEE 802.3 Ethernet IEEE 802.3u Fast Ethernet IEEE 802.3x Full Duplex Flow Control IEEE 802.3az Energy Efficient Ethernet |
| Temperature | Operating: -40~75 degrees C Storage: -40~75 degrees C |
| Humidity | Operating: 5% to 95%, Storage: 5% to 95% (non-condensing) |
- Sản xuất tại Đài Loan.
- Bảo hành: 12 tháng.
