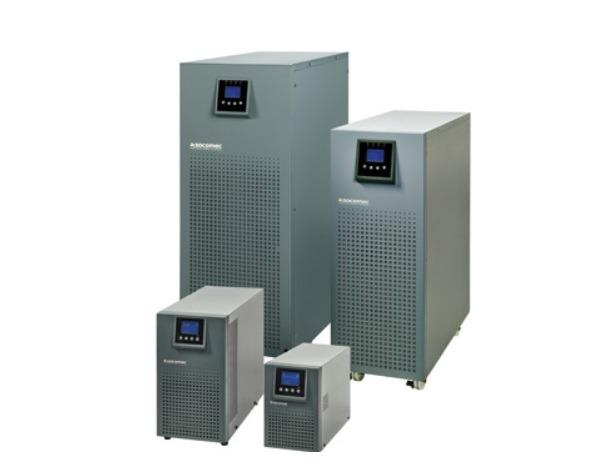

Bộ nguồn lưu điện ITYS 3000VA UPS SOCOMEC ITY2-TW030LB
- Công Nghệ: Online 3000VA/ 2400 Watt.
- Thời gian chuyển mạch khi cúp điện: 0ms.
- Hệ số công suất (Power factor): >0.98.
- Hiệu suất: 92%.
- Khả năng chịu quá tải (Over load): lên tới 150% trong vòng 10 giây
- Outlet: đấu đầu ra PDU terminals.
- Thời gian dự phòng (Back-up time): @ 75% tải Pf= 0.7: Thời gian lưu điện 9 phút.
- Độ ồn: <50dBA.
Đặc tính kỹ thuật
| Model | ITY2-TW030LB |
| Sn | 3000VA |
| Pn | 2400W |
| Input/output | 1/1 |
| Input | |
| Rated voltage | 230 V (110÷300 V) |
| Rated frequency | 50/60 Hz |
| Power factor | 0.98 |
| Output | |
| Rated voltage | 208 / 220 / 230 / 240 V (± 2%) |
| Rated frequency | 50/60 Hz (45÷55 Hz/54÷66 Hz) |
| Overload | Up to 150% for 10 seconds |
| Crest factor | 3:01 |
| Connections | 4 x IEC 320 (C13) + terminals |
| Batteries | |
| Type | Sealed lead-acid maintenance free - expected life 3/5 years |
| Voltage | 96VDC |
| Back-up time | 9 min |
| Battery charger | 8A |
| Communication | |
| Interfaces | RS232 - USB |
| Ethernet adapter | NET VISION (TCP/IP & SNMP) optional card |
| Local communication software | Local View |
| Efficiency | |
| Online mode | up to 92% |
| Environment | |
| Ambient service temperature | 0 °C to +40 °C (15 °C to 25 °C for maximum battery lifetime) |
| Relative humidity | < 95 % non-condensing |
| Maximum altitude | 1000 m without de-rating |
| Noise level at 1 m | < 50 dBA |
| UPS cabinet | |
| Dimensions (W x D x H) | 192 x 460 x 347 mm |
| Weight (models with internal batteries) | 31kg |
| Weight (models without internal batteries) | 13kg |
| Degree of protection | IP20 |
| Standards | |
| Safety | EN 62040-1 |
| EMC | EN 62040-2 |
- Thương hiệu SOCOMEC của Pháp.
- Bảo hành 24 tháng, 1 đổi 1 trong thời gian bảo hành.
