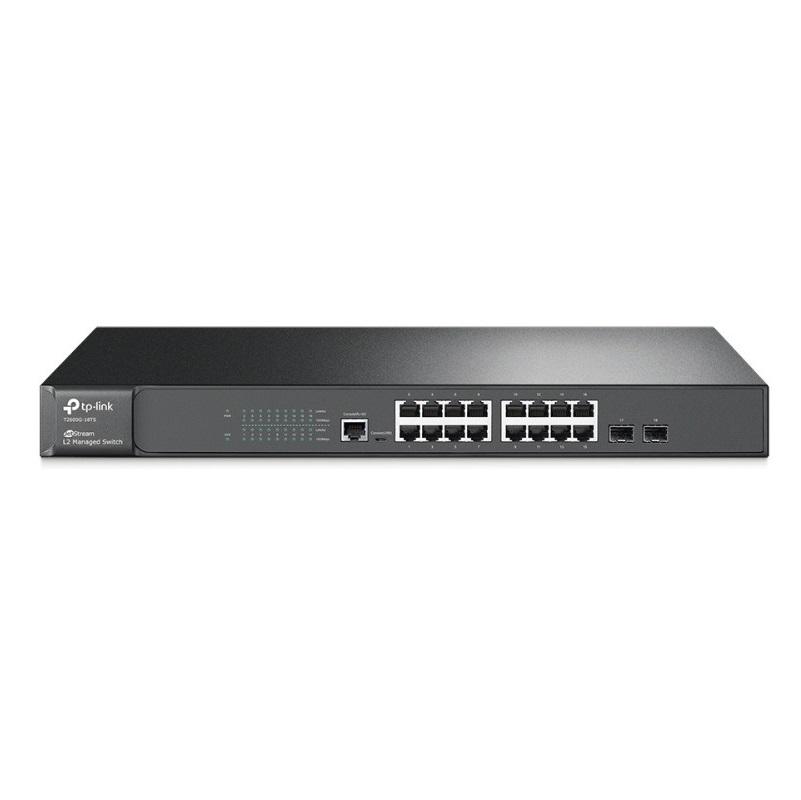

JetStream 16-Port Gigabit L2 Managed Switch with 2 SFP Slots TP-Link T2600G-18TS

JetStream 16-Port Gigabit L2 Managed Switch with 2 SFP Slots TP-Link T2600G-18TS

  • MS 000014785
  • TP-LINK
Giá : Liên hệ

JetStream 16-Port Gigabit L2 Managed Switch with 2 SFP Slots TP-Link T2600G-18TS

JetStream 16-Port Gigabit L2 Managed Switch with 2 SFP Slots TP-Link T2600G-18TS

- 16 Gigabit RJ45 Ports and 2 Gigabit SFP Slots.

- Selectable RJ45 or Micro-USB Console Port.

- L2+ feature - Static Routing, helps route internal traffic for more efficient use of network resources.

- IP-MAC-Port-VID Binding, ACL, Port Security, DoS Defend, Storm control, DHCP Snooping, 802.1X Authentication and Radius provide you with robust security strategies.

- L2/L3/L4 QoS and IGMP snooping that optimize voice and video application.

- DDM provides monitoring of all SFP Modules inserted to the switch.

- IPv6 supported with dual IPv4/IPv6 stack, MLD snooping, IPv6 neighbor discovery.

- Web, CLI (Console Port, Telnet, SSH), SNMP, RMON and Dual Image bring abundant management policies.

Specifications

HARDWARE FEATURES
Standards and ProtocolsIEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE802.3z, IEEE 802.3ad, IEEE 802.3x, IEEE 802.1d, IEEE 802.1s, IEEE 802.1w, IEEE 802.1q, IEEE 802.1x, IEEE 802.1p
Interface16 10/100/1000Mbps RJ45 Ports (Auto Negotiation/Auto MDI/MDIX)
2 100/1000Mbps SFP Slots
1 RJ45 Console Port
1 Micro-USB Console Port
Network Media10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
100BASE-TX/1000Base-T: UTP category 5, 5e or above cable (maximum 100m)
100BASE-FX: MMF, SMF
1000BASE-X: MMF, SMF
Fan Quantity0
Physical Security LockYes
Power Supply100~240VAC, 50/60Hz
Dimensions ( W x D x H )17.3x8.7x1.7 in.(440x220*44 mm)
MountingRack Mountable
Max Power Consumption11.47W (220V/50Hz)
Max Heat Dissipation39.14 BTU/h
PERFORMANCE
Switching Capacity36Gbps
Packet Forwarding Rate26.78Mpps
MAC Address Table8k
Jumbo Frame9216 Bytes
SOFTWARE FEATURES
Quality of ServiceSupport 802.1p CoS/DSCP priority
Support 8 priority queues
Queue scheduling: SP, WRR, SP+WRR
Port/Flow- based Rate Limiting
Voice VLAN
L2 and L2+ FeaturesStatic Routing
DHCP Relay
IGMP Snooping V1/V2/V3
802.3ad LACP (Up to 8 aggregation groups, containing 8 ports per group)
STP/RSTP/MSTP
BPDU Filtering/Guard
TC/Root Protect
Loopback detection
802.3x Flow Control
L2PT
VLANSupports up to 4K VLANs simultaneously (out of 4K VLAN IDs)
802.1Q/MAC/Protocol-based VLAN
GARP/GVRP
Access Control ListL2~L4 package filtering based on source and destination MAC address, IP address, TCP/UDP ports, 802.1p,DSCP, protocol and VLAN ID
Time Range Based ACL
SecurityIP-MAC-Port Binding
AAA
802.1x and Radius Authentication
DoS Defend
Dynamic ARP Inspection (DAI)
SSH v1/v2
SSL v3/TLSv1
Port Security
Broadcast/Multicast/Unknown-unicast Storm Control
IPv6Dual IPv4/IPv6 stack
Multicast Listener Discovery (MLD) Snooping
IPv6 neighbor discovery (ND)
Path maximum transmission unit (MTU) discovery
Internet Control Message Protocol (ICMP) version 6
TCPv6/UDPv6
IPv6 ACL
DHCPv6 Snooping
IPv6 Interface
IPv6 ApplicationsDHCPv6 Client
Ping6
Tracert6
Telnet(v6)
IPv6 SNMP
IPv6 SSH
IPv6 SSL
Http/Https
IPv6 TFTP
IPv6 ACL
IPv6 Interface
IPv6 Routing
DHCPv6 Relay
DHCPv6 Snooping
ManagementWeb-based GUI and CLI management
SNMP v1/v2c/v3,compatible with public MIBs and TP-Link private MIBs
RMON (1, 2, 3, 9 groups)
PPPoE Circuit ID
DHCP Relay
DHCP Server
DHCP/BOOTP Client, DHCP Snooping, DHCP Option82
Dual Image
CPU Monitoring
Port Mirroring
DDM
Time Setting: SNTP
Integrated NDP/NTDP feature
Firmware Upgrade: TFTP & Web
System Diagnose: VCT
SYSLOG & Public MIBS
Password Recovery
OTHERS
CertificationCE, FCC, RoHS
Package ContentsSwitch
Power Cord
Quick Installation Guide
Resource CD
Rackmount Kit
Rubber Feet
System RequirementsMicrosoft® Windows® XP, Vista™, 7, 8, 10, MAC® OS, NetWare®, UNIX® or Linux.
EnvironmentOperating Temperature: 0℃~40℃ (32℉~104℉);
Storage Temperature: -40℃~70℃ (-40℉~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing

- Hàng chính hãng TP-LINK.

- Bảo hành: 12 tháng.
