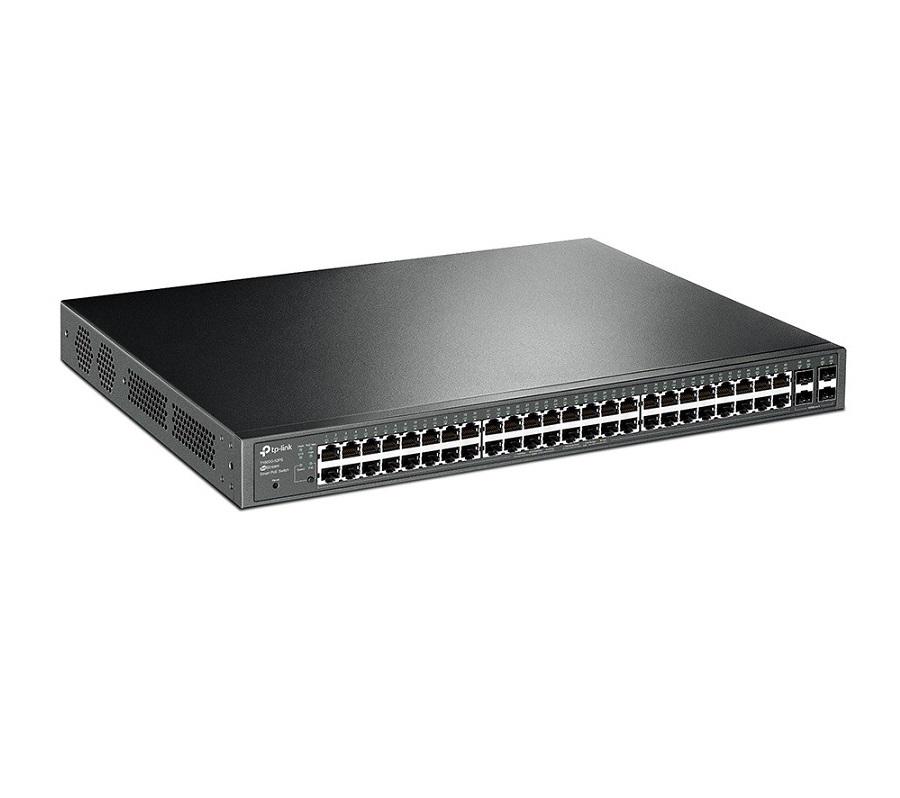

JetStream 48-Port Gigabit Smart PoE+ Switch with 4 SFP Slots TP-LINK T1600G-52PS
- Supports 48 802.3at/af-compliant PoE+ ports with a total power supply of 384W.
- L2+ Feature-Static Routing, helps route internal traffic for more efficient use of network resources.
- IP-MAC-Port Binding, ACL, Port Security, DoS Defend, Storm control, DHCP Snooping, 802.1X and Radius Authentication provide you robust security strategies.
- L2/L3/L4 QoS and IGMP snooping optimize voice and video applications.
- IPv6 support with the IPv4/IPv6 dual stack, MLD snooping, IPv6 neighbor discovery.
- WEB/CLI managed modes, SNMP, and RMON bring abundant management features.
Specifications
| HARDWARE FEATURES | |
| Standards and Protocols | IEEE 802.3i IEEE 802.3u IEEE 802.3ab IEEE802.3z IEEE 802.3ad IEEE 802.3x IEEE 802.1d IEEE 802.1s IEEE 802.1w IEEE 802.1Q IEEE 802.1p IEEE 802.1x |
| Interface | 48 10/100/1000Mbps RJ45 Ports (Auto Negotiation/Auto MDI/MDIX) 4 Gigabit SFP Slots |
| Network Media | 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) 100BASE-TX/1000Base-T: UTP category 5, 5e or above cable (maximum 100m) 1000BASE-X: MMF, SMF |
| Fan Quantity | 3 |
| Physical Security Lock | Yes |
| PoE+ Ports(RJ45) | Standard: 802.3at/af compliant PoE+ Ports: 48 Ports Power Supply: 384W |
| Dimensions ( W x D x H ) | 17.3 × 13 × 1.7 in. (440 × 330 × 44 mm) |
| Mounting | 19inch 1U rack mountable |
| Max Power Consumption | 47.6W ( with no power device connected) 485.7W (with 384W power device connected) |
| Max Heat Dissipation | 162.3 BTU/h (with no power device connected) 1,657.2 BTU/h (with 384W power devices connected) |
| PERFORMANCE | |
| Bandwidth/Backplane | 104Gbps |
| Packet Forwarding Rate | 77.4Mpps |
| MAC Address Table | 16K |
| Jumbo Frame | 9KB |
| SOFTWARE FEATURES | |
| Quality of Service | Support 802.1p CoS/DSCP priority Support 8 priority queues Queue scheduling: SP, WRR, SP+WRR Port/Flow- based Rate Limiting IPv6 QoS Voice VLAN |
| L2 and L2+ Features | Static Routing DHCP Relay IGMP Snooping V1/V2/V3 802.3ad LACP (Up to 14 aggregation groups, containing 8 ports per group) Spanning Tree STP/RSTP/MSTP BPDU Filtering/Guard TC/Root Protect Loopback detection 802.3x Flow Control LLDP, LLDP-MED |
| VLAN | Supports up to 4K VLANs simultaneously (out of 4K VLAN IDs) MAC/Protocol-based VLAN |
| Access Control List | L2～L4 package filtering based on source and destination MAC address, IP address, TCP/UDP ports |
| Security | AAA Port Security DHCP Snooping IP-MAC-Port Binding ARP Inspection 802.1x and Radius Authentication SSH v1/v2 SSL v3/TLSv1 Broadcast/Multicast/Unknown-unicast Storm Control DoS Defend |
| IPv6 | Dual IPv4/IPv6 stack Multicast Listener Discovery (MLD) Snooping IPv6 neighbor discovery (ND) Path maximum transmission unit (MTU) discovery Internet Control Message Protocol (ICMP) version 6 TCPv6/UDPv6 |
| IPv6 Applications | DHCPv6 Client Ping6 Tracert6 Telnet (v6) IPv6 SNMP IPv6 SSH IPv6 SSL Http/Https IPv6 TFTP |
| Management | Web-based GUI and CLI management SNMP v1/v2c/v3, compatible with public MIBs and TP-LINK private MIBs RMON (1, 2, 3, 9 groups) CPU Monitoring Port Mirroring Firmware Upgrade: TFTP & Web System Diagnose: VCT SYSLOG & Public MIBS Dual Image |
| OTHERS | |
| Certification | CE, FCC, RoHS |
| Package Contents | T1600G-52PS Power Cord Installation Guide Resource CD Rackmount Kit Rubber Feet |
| Environment | Operating Temperature: 0℃~40℃ (32℉~104℉); Storage Temperature: -40℃~70℃ (-40℉~158℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
- Hàng chính hãng TP-LINK.
- Bảo hành: 12 tháng.
