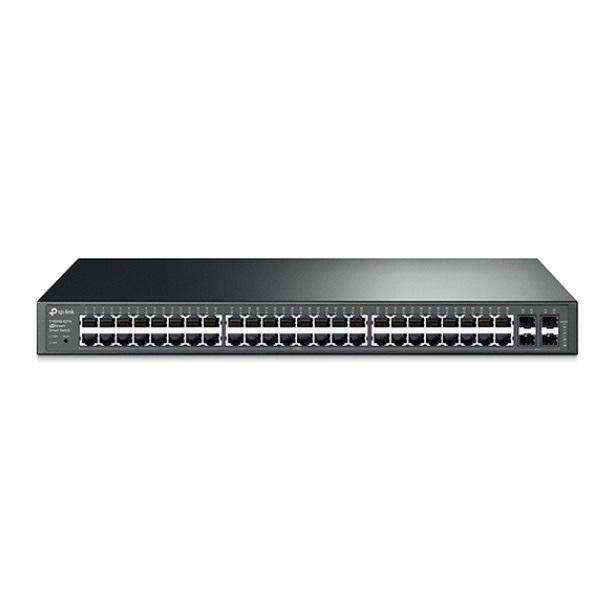

JetStream 48-Port Gigabit Smart Switch with 4 SFP Slots TP-LINK T1600G-52TS
- Gigabit Ethernet connections on all ports provide full speed of data transferring.
- L2+ Feature Static Routing, helps route internal traffic for more efficient use of network resources.
- Integrated security strategy including 802.1Q VLAN, Port Security and Storm control help protect LAN area investment.
- L2/L3/L4 QoS and IGMP snooping optimize voice and video applications.
- IPv6 support with dual IPv4/IPv6 stack, MLD snooping, IPv6 neighbor discovery.
- WEB/CLI managed modes, SNMP, RMON and Dual Image bring abundant management features.
Specifications
| HARDWARE FEATURES | |
| Standards and Protocols | IEEE 802.3i,IEEE 802.3u,IEEE 802.3ab, IEEE802.3z,IEEE 802.3x,IEEE 802.1d, IEEE 802.1s,IEEE 802.1w,IEEE 802.1q,IEEE 802.1p |
| Interface | 48 10/100/1000Mbps RJ45 Ports (Auto Negotiation/Auto MDI/MDIX) 4 Gigabit SFP Slots |
| Network Media | 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) 100BASE-TX/1000Base-T: UTP category 5, 5e or above cable (maximum 100m) 1000BASE-X: MMF, SMF |
| Fan Quantity | Fanless |
| Physical Security Lock | Yes |
| Dimensions ( W x D x H ) | 17.3x8.7x1.7 in.(440x220x44 mm) |
| Mounting | Rack Mountable |
| Max Power Consumption | 32.8W (220V/50Hz) |
| Max Heat Dissipation | 111.91 BTU/h |
| PERFORMANCE | |
| Bandwidth/Backplane | 104Gbps |
| MAC Address Table | 16k |
| Packet Buffer Memory | 77.4Mpps |
| Jumbo Frame | 9216 Bytes |
| SOFTWARE FEATURES | |
| Quality of Service | Support 802.1p CoS/DSCP priority Support 8 priority queues Queue scheduling: SP, WRR, SP+WRR Port/Flow- based Rate Limiting IPv6 QoS Voice VLAN |
| L2 and L2+ Features | Static Routing DHCP Relay IGMP Snooping V1/V2/V3 802.3ad LACP (Up to 8 aggregation groups, containing 8 ports per group) Spanning Tree STP/RSTP/MSTP BPDU Filtering/Guard TC/Root Protect Loopback detection 802.3x Flow Control LLDP, LLDP-MED |
| VLAN | Supports up to 4K VLANs simultaneously (out of 4K VLAN IDs) MAC/Protocol-based VLAN |
| Access Control List | L2～L4 package filtering based on source and destination MAC address, IP address, TCP/UDP ports IPv6 ACL |
| Security | SSH v1/v2 SSL v3/TLS v1 AAA Port Security DHCP Snooping IP-MAC-Port Binding ARP Inspection 802.1x and Radius Authentication Broadcast/Multicast/Unknown-unicast Storm Control Dos Defend |
| IPv6 | Dual IPv4/IPv6 stack Multicast Listener Discovery (MLD) Snooping IPv6 neighbor discovery (ND) Path maximum transmission unit (MTU) discovery Internet Control Message Protocol (ICMP) version 6 TCPv6/UDPv6 |
| IPv6 Applications | DHCPv6 Client Ping6 Tracert6 Telnet (v6) IPv6 SNMP IPv6 SSH IPv6 SSL Http/Https IPv6 TFTP |
| Management | Web-based GUI and CLI management SNMP v1/v2c/v3,compatible with public MIBs and TP-LINK private MIBs RMON (1, 2, 3, 9 groups) CPU Monitoring Port Mirroring Firmware Upgrade: TFTP & Web System Diagnose: VCT SYSLOG & Public MIBS Dual Image |
| OTHERS | |
| Certification | CE, FCC, RoHS |
| Package Contents | T1600G-52TS Power Cord; Installation Guide; Resource CD; Rackmount Kit; Rubber Feet |
| System Requirements | Microsoft® Windows® XP, Vista™ or Windows 7, Windows 8, MAC® OS, NetWare®, UNIX® or Linux. |
| Environment | Operating Temperature: 0℃~40℃ (32℉~104℉); Storage Temperature: -40℃~70℃ (-40℉~158℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
- Hàng chính hãng TP-LINK.
- Bảo hành: 12 tháng.
