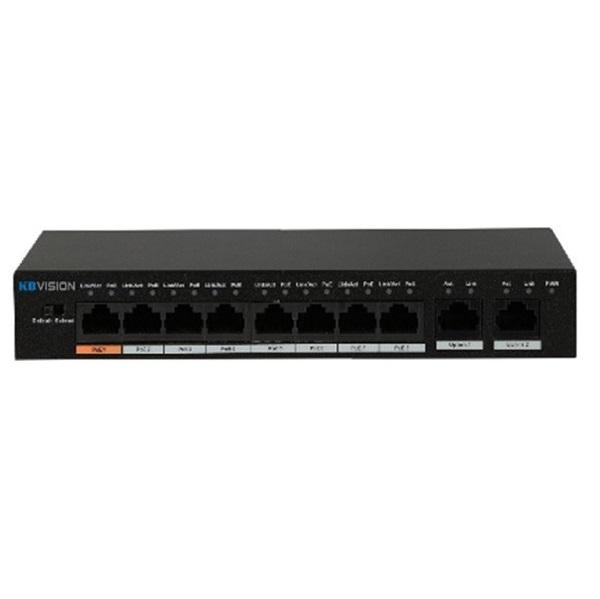

8-port 10/100Mbps PoE Switch KBVISION KX-ASW08-P2
- Layer two commercial switch
- Supports PoE power management
- Support wall-mount installation
- Support anti-theft lock hole
- MAC auto learning and aging, MAC address capacity is 16K
- Supports IEEE802.3, IEEE802.3u and IEEE802.3X standards
- RJ45 port supports 10/100Mbps self-adaptation
- Supports 250 meters long distance PoE transmission
- Conforms to IEEE802.3af and IEEE802.3at power supply standard. Port 1 supports Hi-PoE 60W power supply
Specifications
| Model | KX-ASW08-P2 |
| Ethernet Port | 8*10/100Mbps PoE ports 2*10/100/1000Mbps ports |
| PoE Power Consumption | Port1≤60W, Port2-8≤30W, Total≤96W |
| PoE PIN Assignment | 1, 2, 4, 5 (V+), 3, 6, 7, 8 (V-) |
| PoE Power Management | Support |
| PoE Protocol | IEEE802.3af (PoE), IEEE802.3at (PoE+), Hi-PoE |
| Switching Capacity | 5.6Gbps |
| Packet Forwarding Rate | 4.17Mpps |
| Packet Buffer Memory | 4Mb |
| MAC Table Size | 16K |
| Flow Control | Enable by default |
| Application Humidity | 5%~95% |
| Power | 48~57VDC power adapter |
| Lightning Protection | Common Mode 2KV Differential Mode 1KV |
| ESD | Air Discharge 8KV Contact Discharge 6KV |
| Working Temperature | -10°C~55°C |
| Weight | 490g |
| Dimensions | 190 x 100 x 30 mm |
- Thương hiệu KBVISION của Mỹ.
- Sản xuất tại Trung Quốc.
- Bảo hành: 24 tháng.
