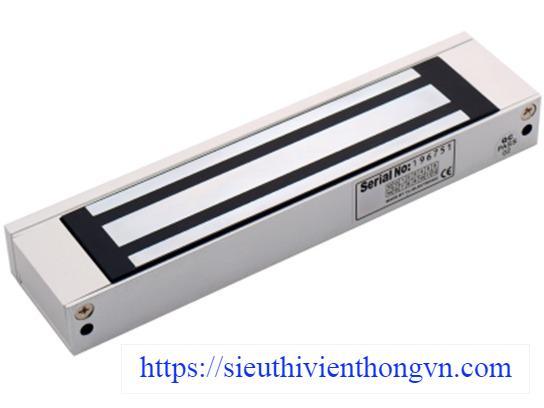

Khóa điện từ HIKVISION DS-K4H250S
-Khóa điện từ chịu lực lên đến 300kg.
-Nguồn điện cung cấp: 12VDC (500mA)/ 24VAC (250mA).
-Trọng lượng: 2.1 kg.
-The magnetic lock supports static linear thrust of 300kg;
-The power supply can be customized to be 12VDC or 24VDC, and the default voltage is 12VDC.
-It is equipped with internal voltage dependent resistor (MOV).
-It is applied to wooden door, glass door, metal door and fireproof door.
-LED indicator displays the status of door lock;
-Signal output of door lock status (NONCCOM).
-Anti-residual magnetism design.
-Abrasion-proof materials.
-The shell is made up ofaldural and is hard anodizing electroplated.
-No mechanical failure, and the magnetic lock works by electromagnetism force.
Đặc tính kỹ thuật
| Dimension of Lock Body | 240 x 49 x 25.5mm |
| Dimension of Armature Plate | 180 x 38 x 11mm |
| Maximum Thrust | 300kg Linear Thrust |
| Input Voltage | 12VDC/ 24VAC |
| Working Current | 12V/500mA, 24V/250mA |
| Signal Output | Dry Contact Signal Output, Support Maximum Power Rate of 3A, NO |
| Output While Locking and NC Output While Unlocking | |
| LED Indicator | Red (Door is Unlocked), Green (Door is Locked) |
| Suitable Door | Wooden Door, Glass Door, Metal Door, Fireproof Door |
| Working Temperature | -10°C to +55°C (14°F to 131°F) |
| Working Humidity | 0 to 95% (Relative Humidity) |
| Shell | Hard Anodizing Electroplating Operated |
| Lock Body | Eco-friendly Zinc with Electroplating Operated |
| Armature Plate | Eco-friendly Zinc withElectroplating Operated |
| Weight | 2.1kg |
-Bảo hành: 24 tháng.
