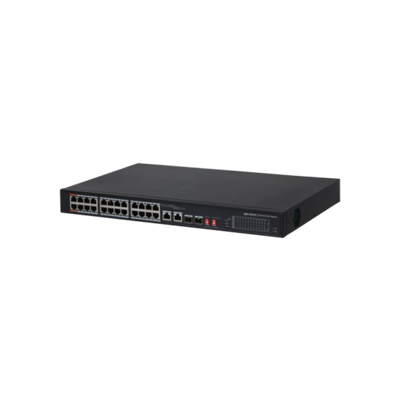

24-port 10/100Mbps PoE Switch KBVISION KX-CSW24-PFL
- Intelligent PoE
- PD Alive (PoE Watchdog)
- Long Distance PoE Transmission
- Smooth Transmission
- Wide Working Temperature: -10 to 55°C (14°F to 131°F)
- Port Isolation
Đặc tính kỹ thuật
| Performance | |
| Layer | Layer 2 |
| Managed | No |
| Switching Capacity | 8.8 Gbps |
| Packet Forwarding Rate | 6.5472 Mpps |
| Packet Buffer Memory | 4 Mbit |
| MAC Table Size | 8K |
| Standards Compliance | IEEE802.3, IEEE802.3u, IEEE802.3x, IEEE802.3ab, IEEE802.3z |
| Hardware Feature | |
| Standard Power Supply | Yes |
| PoE | Yes |
| Ethernet Port | 24 |
| Optical Port | 2 |
| Ethernet Port Rate | 100 Mbps |
| Optical Port Rate | 1 Gbps |
| Number of Bussiness Card Slots | Port 1–24: 24 × RJ45 10/100 Mbps Port 25–26: 2 × RJ45 10/100/1000 Mbps (uplink) Port 25–26: 2 × SFP 1000 Mbps (uplink) (combo) |
| Power Supply | 100V AC–240V AC |
| Operating Temperature | –10°C to 55°C (14°F to 131°F) |
| Operating Humidity | 10%–90% |
| Storage Humidity | 5%–95% |
| Power Consumption | Idling: 5W Full load: 240W |
| PoE | |
| PoE Standard | IEEE802.3af, IEEE802.3at, Hi-PoE |
| PoE Budget | Port 1–2≤60W, Port 3–16≤30W, total≤240W |
| PoE Pin Assignment | PoE/Hi-PoE: 1, 2, 4, 5 (V+), 3, 6, 7, 8 (V-) |
| Long Distance PoE Transmission | Yes |
| Function | |
| VLAN | Port Isolation |
| QoS | Yes |
| System Maintenance | PD Alive |
| General | |
| ESD | Air discharge: 8kV Contact discharge: 6kV |
| Thunderproof | Common mode: 4kV Differential mode: 2kV |
| Dimensions | 440 mm × 300 mm × 44 mm |
- Thương hiệu KBVISION của Mỹ.
- Bảo hành: 24 tháng.
