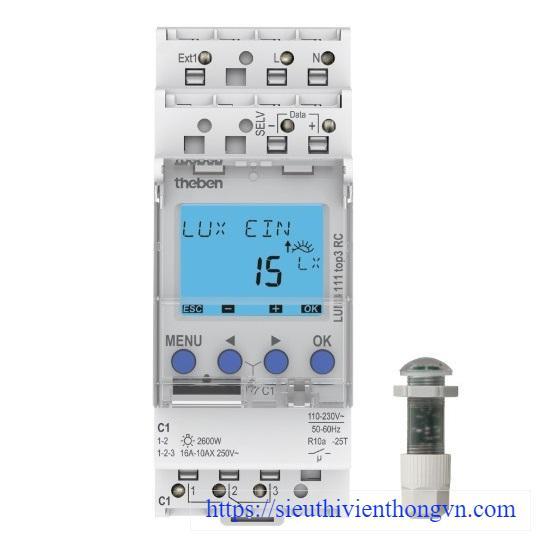

Light Level Controller THEBEN LUNA 111 top3 EL
- Part Number: 1110230.
- Light level controller.
- External light sensor included in delivery.
- 1 channel.
- External input.
- Programming by app possible.
- Safe transfer via optional Bluetooth Low Energy OBELISK top3.
- Maximum manipulation security, programs can only be transferred from the app to the time switch when the Bluetooth OBELISK top3 is plugged into the device.
- Switching brightness digitally adjustable.
- Adjustable On and Off switching delay.
- Switching brightness and switching delay can be set separately for switching On and Off.
- Onscreen display of channel and switching status as well as current lux value.
- DuoFix spring terminals.
- Zero-cross switching for relay-saving switching and high lamp loads.
- Up to 4 sensors can be attached.
- Up to 10 devices can be connected to a digital sensor.
- Interface for OBELISK top2 memory card (PC programming).
- Extended brightness range.
- Permanent switching ON/OFF.
- Test function.
- Switching preselection.
- Display back light (can be turned off).
- PIN coding.
- Operating hour counter.
Đặc tính kỹ thuật
| Model | LUNA 111 top3 EL |
| Operating voltage | 110 – 230 V AC |
| Frequency | 50 – 60 Hz |
| Number of channels | 1 |
| External inputs | 1 |
| Stand-by consumption | ~0.8 W |
| Setting range brightness | 1 – 99000 lx |
| Preset brightness value | 15 lx |
| Switch-on delay | 0 – 59 min |
| Switch-off delay | 0 – 59 min |
| Type of contact | Changeover contact |
| Width | 2 modules |
| Installation type | DIN rail |
| Type of connection | DuoFix spring terminals |
| Display | LCD-Display |
| Keyboards | 4 touch buttons |
| Switching capacity | 16 A at 250 V AC, cos φ = 1, 10 A at 250 V AC, cos φ = 0.6 |
| Incandescent/halogen lamp load | 2600 W |
| Halogen lamp load | 2600 W |
| Fluorescent lamp load (conventional) not corrected | 2600 VA |
| Fluorescent lamp load (conventional) parallel-corrected | 130 µF |
| LED lamp < 2 W | 50 W |
| LED lamp 2-8 W | 600 W |
| LED lamp > 8 W | 600 W |
| Lichtsensor | Flush-mounted light sensor |
| Housing and insulation material | High-temperature resistant, self-extinguishing thermoplastic |
| Ambient temperature | -25°C ... 55°C |
| Type of protection | IP 20 |
| Protection class | II, Sensor III |
| Max. cable length to sensor | 100 m |
- Hãng sản xuất THEBEN của Đức.
- Bảo hành: 12 tháng.
