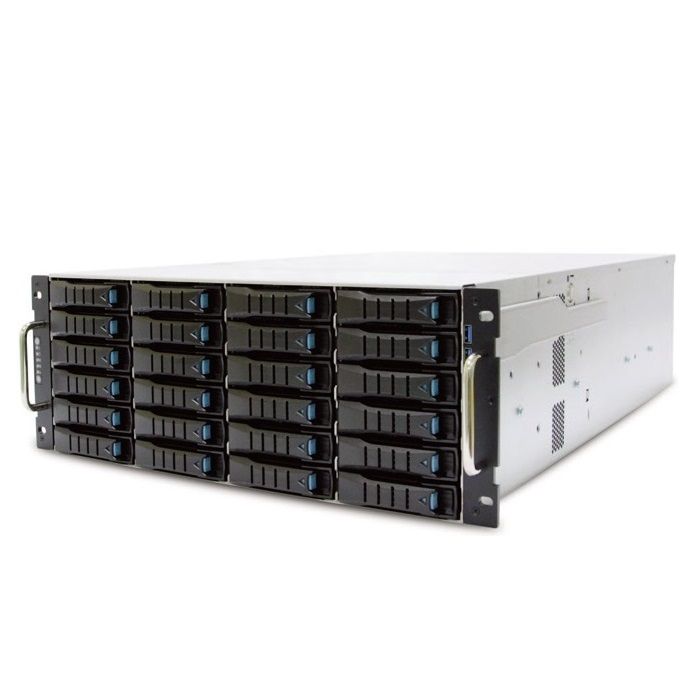

Đầu ghi hình NAV 108 kênh LILIN NAV24108E
- Đầu ghi hình NAV (Network Attached Video) là một thiết bị được sử dụng trong hệ thống giám sát và an ninh để ghi lại và quản lý video từ các camera IP.
- Hỗ trợ lên đến 108 kênh 1080P/3M/4M/5M/8M/12M truyền tải, ghi hình qua mạng.
- Tích hợp 1 × 500GB 2.5-inch SATA SSD (OS).
- Hỗ trợ 24 ổ cứng Hot-swap 3.5-inch SATA HDD (ghi hình)
- Hỗ trợ chuyển đổi dự phòng lên đến 36 kênh mỗi máy chủ.
- Hỗ trợ chế độ giải mã luồng kép.
- Hỗ trợ 2 màn hình lên đến tổng cộng 36 kênh (480P 15fps).
- Hỗ trợ phát lại đồng bộ nhiều kênh (từ xa hoặc cục bộ).
- Hỗ trợ chỉnh sửa hình ảnh camera Fisheye.
- Tích hợp 2 port 2.5GbE Ethernet RJ45.
- Tích hợp bộ nguồn dự phòng PSU 1200W 1+1.
- Kích thước 4U cho tủ rackmount.
Đặc tính kỹ thuật
| Model | NAV24108E |
| Network video support | LILIN IP camera, LILIN IP camera over HTTPS, LILIN Fisheye camera, LILIN IP speed dome, LILIN DVR/NVR, LILIN DHD recorder, NAV live streaming, P2P live streaming, ONVIF camera, manual RTSP, screen capture, USB video input, picture capture |
| Chassis | 4U Chassis |
| IP Video Input | Up to 108 channels 1080P / 3M / 4M / 5M / 8M / 12M |
| Network video Format | H.264 / H.265 / MJPEG |
| Maximum Network Throughput | Upload: up to 1250Mbps, Download: up to 1250Mbps |
| Internal HDD / Swap Drive Bay | built-in 1 × 500GB 2.5 Inch SATA SSD (OS) Support up to 24 × Hot-swap 3.5 Inch SATA HDD (recording) |
| Video input (Support quantity) | Max. 108 channels |
| Camera name | 20 characters |
| Channel editing | Mouse drag-n-drop |
| Fisheye Dewarp Mode | Ceiling and ground mounted, 1 R One Region, 3 R1O Three Regions One Fisheye, 4 R Four Regions, 2 R1P Two Regions One Panoramic 360, 2 P Two Panoramics 180, 8 R1O Eight Regions One Fisheye, Wall mounted, 1 R One Region, 3 R1O Three Regions One Fisheye, 4 R Four Regions, 2 R1P Two Regions One Panoramic 180, 1 WP One Wall Panoramic 180, 8 R1O Eight Regions One Fisheye |
| Digital zoom | Yes, ePTZ supported |
| Privacy Mask | Supported |
| Remote monitoring (Video input) | Yes, web and NAV Client |
| HDMI output | 2 × HDMI Port 2.0b, (4096 × 2160@60Hz) |
| DVI output | 2 × DVI-D Port, (1920 × 1080@60Hz) |
| VGA output | No support |
| DisplayPort output | 2 × DisplayPort 1.4, (4096 × 2304@60Hz) |
| Split Screen | 4, 9, 16, 25, 36 |
| Dual stream technology (Video output) | Multi-channel displays D1 and full screen displays 1080P / 3M / 4M / 5M / 8M / 12M resolution |
| Multi-screen (Video output) | 2 monitors support up to 36 channels in total (480P 15fps) |
| Application/ Recording Mode | Alarm, motion, schedule, and manual |
| Recording schedule | 7 days × 24 hrs time table, recording mode configurable |
| Recording resolution & framerate | Max 12MP@20fps, 8MP@30fps, 5MP@30fps, 4MP@30fps, 3MP@30fps, 1080p@120fps, and ROI recording supported |
| Motion recording | 72ch |
| Alarm recording | Remote digital input, remote IVS detection, remote face detection, remote tamper detection, remote audio detection, external IO, motion detection, NAV CGI Triggering, video loss detection, speed measurement detection, ANPR detection, facial recognition, remote LPR detection, QR code detection, aida behavior detection |
| Audio Recording | Yes |
| Circular recording | Yes / size customizable |
| Limited recording | Yes / days customizable |
| Failover | Supported |
| Video Archiving | Yes |
| Low bitrate recording | Yes |
| Remote network NAS | Support NAS (SMB/CIFS), iSCSI |
| Playback Search | Date, time, Smart search, Alarm search, POS, ANPR search, Face search, Face trace search (in FR server only), Tagging search |
| Playback resolution and framerate | Max 12MP@20fps, 8MP@30fps, 5MP@30fps, 4MP@30fps, 3MP@30fps, 1080p@120fps |
| Playback Speed | Fast Rewind: 1/8, 1/4, 1/2, 1X, 2X, 4X, 8X, 16X, 32X Fast Forward: 1/8, 1/4, 1/2, 1X, 2X, 4X, 8X, 16X, 32X |
| Backup / Video input | Max. 36 channels, AVI & MP4 file format supported |
| Remote video (Playback) | NAV Server / Navigator Client / DVR / NVR / IP camera SD card supported up to 36 channels |
| Alarm Management | Play audio file, send email notification, PTZ preset, digital output triggering, full screen, post alarm record, pre-alarm record, advanced alarm digital output, send customizable HTTP POST CGI URL to third party device, alarm ACK, alarm snapshot, text overlay, App cloud push notification, NCC TV wall ACK, NCC eMap Center Alarm, NCC play sound, NCC global alarm setting, all these action can be automatic or scheduled |
| Alarm recording(Alarm / event) | Pre-alarm:1 ~ 10 seconds and post-alarm: 1 sec ~ 59 minutes |
| Alarm scheduling | Up to four alarm tables with AND logic |
| Alarm event actions | Various alarm log including video loss, stop recording, schedule, logon, operation log |
| Digital Output | Controllable via IP cameras |
| Video archiving & sync. | Individual camera configurable, scheduling and instant archiving, sync recording data with NAV server / NVR / DVR / IP camera SD card. |
| Keyboard Keypad | PIH-931D keyboard controllable via rs-485 to usb converter for PTZ, ePTZ, and ROI features |
| Audio | PCM/G.711/AAC, two-way audio, audio recording |
| POS | Third party TCP/IP/ RS-232 / Bluetooth supported / HID USB Barcode scanner |
| Protocols | ARP / TCP/IP / RTSP / ONVIF / HTTP / HTTPS / SMTP / DNS / PPPoE / SDDP |
| Mobile Application | Integrated to LILIN mobile app (LILIN Pro) iPhone, iPad, Android support |
| IP Scan | Supported, easy-to-setup for IP address |
| VMS support | Support NAV Client software |
| eMap | Supported |
| CPU | Intel® Core™ i9-12900E |
| RAM | 64GB (2 × DDR4 32GB) |
| Chipset | Intel® Q670 |
| Display card | 2 × GTX 1650 |
| Ethernet Ports | 1 x Intel® I225LM with 2.5GbE 1 x Intel® I225LM with 2.5GbE |
| Audio (Hardware) | 3 × Audio jack(s) |
| Rear panel USB port | 5 x USB 3.2 (Gen2) Type-A 1 x USB 3.2 (Gen2x2) Type-C |
| Front panel USB port | 2 x USB 3.0 Type-A |
| System FAN | 3 × System Cooling |
| Hot spare | support |
| Raid control | LSI SAS 9362-8i RAID |
| Raid mode | RAID 0, 1, 5, 6, 10, 50 |
| SSD HDD | built-in 1 × 500GB 2.5 Inch SATA SSD (OS) Support up to 24 × Hot-swap 3.5 Inch SATA HDD (recording). |
| OS | Windows 11 IoT Enterprise 22H2 GAC |
| Daylight Saving | Daylight saving time by Windows OS |
| Power Consumption | 1200W |
| Power Supply | 110V ~ 240V Redundant Power Supply |
| Operating Temperature | 0°C ~ 50°C(32°F ~ 122°F) |
| Storage Temperature | -20°C ~ 70°C(-4°F ~ 158°F) |
| Relative Humidity | 10% ~ 90% (non-condensing) |
| Dimensions | 177 (H) × 430 (W) × 680 (D) mm |
| Color | Black |
| Weight | 37kg - Gross |
- Bảo hành: 36 tháng.
