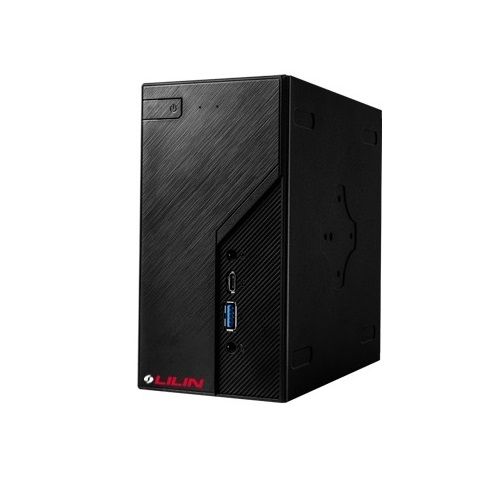

Control Server 12 kênh LILIN NCS1200A
- Up to 12 channels 1080P/3M/4M/5M/8M/12M Network streaming
- Support 2 channels fisheye camera dewarping
- 1 monitor support up to 12 channels (480P 15FPS)
- Can be used as 12 channel video decoder
- Built-in 1 × 500GB 2.5 Inch SATA SSD (OS)
- Built-in 1 × 1TB 2.5 Inch SATA HDD
- Built-in Gigabit Ethernet Port, RJ-45 × 1
- Built-in 120W Power Supply
Thông số kỹ thuật
| Model | NCS1200A |
| Network video support | LILIN IP camera, LILIN IP camera over HTTPS, LILIN Fisheye camera, LILIN IP speed dome, LILIN DVR/NVR, LILIN DHD recorder, NAV live streaming, P2P live streaming, ONVIF camera, manual RTSP, screen capture, USB video input, picture capture |
| Chassis | MINI PC |
| IP Video Input | Up to 12 channels 1080P / 3M / 4M / 5M / 8M/12M |
| Network video Format | H.264 / H.265 / MJPEG |
| Maximum Network Throughput | Upload: up to 500Mbps, Download: up to 500Mbps |
| Internal HDD / Swap Drive Bay | built-in 1 × 128GB M.2 2280 SSD (OS) built-in 1 × 1TB 2.5 Inch SATA HDD (recording) |
| Video input (Support quantity) | Max. 12 channels |
| Camera name | 20 characters |
| Channel editing | Mouse drag-n-drop |
| Fisheye Dewarp Mode | Yes |
| Digital zoom | Yes, ePTZ supported |
| Privacy Mask | Supported |
| Remote Live Video | Yes, web and NAV Client |
| HDMI output | 1 × HDMI Port 1.2 (4096 × 2160@60Hz) |
| DisplayPort output | 1 × mini DisplayPort 1.2, (4096 × 2160@60Hz) |
| Split Screen | 4, 9, 16 |
| Dual stream technology (Video output) | Multi-channel displays D1 and full screen displays 1080P / 3M / 4M / 5M / 8M / 12M resolution |
| Multi-screen (Video output) | 1 monitor support up to 12 channels (480P 15FPS) |
| Application/ Recording Mode | Alarm, motion, schedule, and manual |
| Recording schedule | 7 days × 24 hrs time table, recording mode configurable |
| Recording resolution & framerate | Max 12MP@20fps, 8MP@30fps, 5MP@30fps, 4MP@30fps, 3MP@30fps, 1080p@120fps, and ROI recording supported |
| Alarm recording | Remote digital input, remote IVS detection, remote face detection, remote tamper detection, remote audio detection, external IO, motion detection, NAV CGI Triggering, video loss detection, speed measurement detection, ANPR detection, facial recognition, remote LPR detection, QR code detection, aida behavior detection |
| Audio Recording | Yes |
| Circular recording | Yes / size customizable |
| Limited recording | Yes / days customizable |
| Failover | Supported |
| Video Archiving | Yes |
| Low bitrate recording | Yes |
| Remote network NAS | Support NAS (SMB/CIFS), iSCSI |
| Playback Search | Date, time, Smart search, Alarm search, POS, ANPR search, Face search, Face trace search (in FR server only), Tagging search |
| Playback resolution and framerate | Max 12MP@20fps, 8MP@30fps, 5MP@30fps, 4MP@30fps, 3MP@30fps, 1080p@120fps |
| Playback Speed | Fast Rewind: 1/8, 1/4, 1/2, 1X, 2X, 4X, 8X, 16X, 32X Fast Forward: 1/8, 1/4, 1/2, 1X, 2X, 4X, 8X, 16X, 32X |
| Backup / Video input | Max. 12 channels, AVI & MP4 file format supported |
| Remote video (Playback) | NAV Server / Navigator Client / DVR / NVR / IP camera SD card, maximum can support up to 12 channels playback and backup |
| Alarm Management | Play audio file, send email notification, PTZ preset, digital output triggering, full screen, post alarm record, pre-alarm record, advanced alarm digital output, send customizable HTTP POST CGI URL to third party device, alarm ACK, alarm snapshot, text overlay, App cloud push notification, NCC TV wall ACK, NCC eMap Center Alarm, NCC play sound, NCC global alarm setting, all these action can be automatic or scheduled |
| Alarm recording(Alarm / event) | Pre-alarm:1 ~ 10 seconds and post-alarm: 1 sec ~ 59 minutes |
| Alarm scheduling | Up to four alarm tables with AND logic |
| Alarm event actions | Various alarm log including video loss, stop recording, schedule, logon, operation log |
| Digital Output | Controllable via IP cameras |
| Video archiving & sync. | Individual camera configurable, scheduling and instant archiving, sync recording data with NAV server / NVR / DVR / IP camera SD card. |
| Keyboard Keypad | PIH-931D keyboard controllable via rs-485 to usb converter for PTZ, ePTZ, and ROI features |
| Audio | PCM/G.711/AAC, two-way audio, audio recording |
| POS | Third party TCP/IP/ RS-232 / Bluetooth supported / HID USB Barcode scanner |
| Protocols | ARP / TCP/IP / RTSP / ONVIF / HTTP / HTTPS / SMTP / DNS / PPPoE / SDDP |
| Mobile Application | LILINPro&Home, iPhone and Android |
| IP Scan | Supported, easy-to-setup for IP address |
| VMS support | Support NAV Client software |
| eMap | Supported |
| eMap live monitoring | Each map can see 4 live video at the same time |
| Auto Switch to the Map of Alarm Event | Supported |
| Snapshot | Motion detection / external alarm / audio detection alarm / face detection |
| (eMap)Central management | Centralized monitoring channels from multiple server |
| (eMap)Online Maps | Google map and Baidu map up to 128 eMap, GPS devices supported |
| Number of Mark for Online Map | Each online map can support 5000 camera mark |
| Number of Mark for Offline Map | Each offline map can support 500 camera mark |
| CPU | Intel® Core™ i3-10100 |
| RAM | 8GB (1 × DDR4 4GB) |
| Chipset | Intel® H470 |
| Display card | Intel® UHD Graphics 630 |
| Ethernet Ports | 1 x Intel® I219V with 1GbE |
| Audio (Hardware) | 2 × Audio jack(s) |
| Rear panel USB port | 1 × USB 3.2 Gen1 Type-C |
| Front panel USB port | 1 × USB 3.2 Gen1 Type-C, 1 × USB 3.2 Gen2 Type-A |
| Hot spare | Not supported |
| SSD HDD | built-in 1 × 128GB M.2 2280 SSD (OS) built-in 1 × 1TB 2.5 Inch SATA HDD (recording) |
| OS | Windows 10 embedded SAC 21H2 |
| Daylight Saving | Daylight saving time by Windows OS |
| Power Consumption | 120W |
| Power Supply | 110V ~ 240V |
| Operating Temperature | 0°C ~ 40°C (32°F ~ 104°F) |
| Storage Temperature | -10°C ~ 60°C (14°F ~ 140°F) |
| Relative Humidity | 10% ~ 90% (non-condensing) |
| Dimensions | 155 (H) × 155 (W) × 80 (D) mm |
| Color | Black |
| Weight | 1.4kg |
- Bảo hành: 36 tháng.
