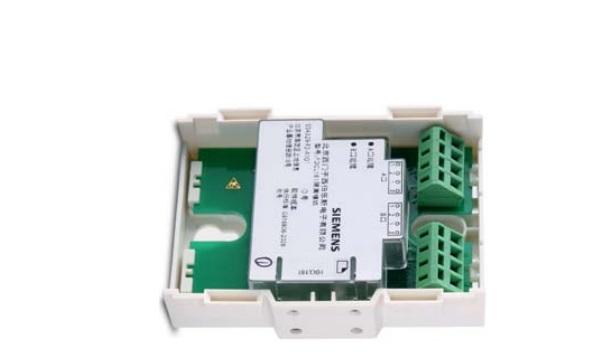

Line Separator Module SIEMENS FDCL181
- FDCL181 Line Separator is used to detect and isolate the short-circuit part of the FD18-BUS. It‘s also connected to prevent different branches from breaking down at the same time due to a short circuit.
- Protection of FD18-BUS from short-circuit.
Characteristic
- For T branches of FD18-BUS.
- Indicates conditions by LED indicator.
- Automatic address setting without encoder settings or Dip-switch.
- Communication via FD18-BUS (separate address).
- Directly applicable in dry areas. Applicable in humid and dusty areas with FDCH221 housing.
- “Sticker Method” easy for commissioning.
Function
- Embedded in a FD18-BUS same function as a electronic switch to isolate the short circuit part of the line and ensure the normal operation of other parts.
- Connected to the detection bus by two four-entry terminals.
- Indication of short circuit isolation by a yellow LED.
Application
- Protection of different branches from breaking down at the same time due to a short circuit.
- In a loop line connection, up to 32 devices can be connected between two separators.
- In a stub line connection, up to 32 devices can be connected to one separator
Thông số kỹ thuật
| Model | FDCL181 |
| Operating voltage | 12 … 32 VDC |
| Operating current (Quiescent) | 0.25 mA |
| Activation current | 0.45 mA |
| Operating temperature | 0 ... +42 °C |
| Storage temperature | -20 ... +75 °C |
| Humidity | ≤95 % |
| Communication protocol | FD18-BUS |
| Load factor | 1 |
| Connection terminals | 1.0 ... 1.5 mm2 |
| Color | - Housing: white, RAL 9010 - Cover: transparent |
- Xuất xứ: Trung Quốc.
- Bảo hành: 12 tháng.
