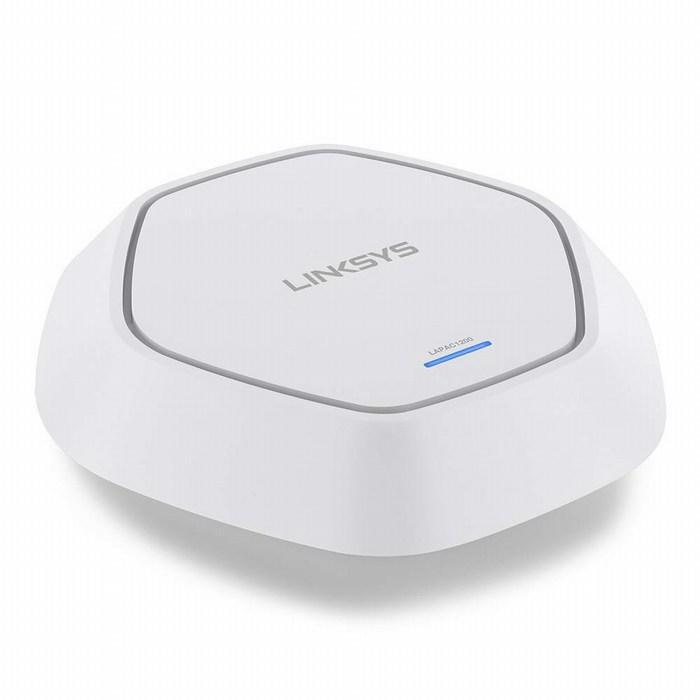

Business Access Point Wireless AC1200 Dual-band with PoE LINKSYS LAPAC1200
- Wireless Access Point chuẩn N/AC, hoạt động đồng thời với 2 tần số 2.4 GHz và 5GHz.
- Cổng kết nối LAN Gbit hỗ trợ cấp nguồn PoE.
- Hỗ trợ 16 SSID, 16 VLAN, mỗi SSID hỗ trợ tối đa kết nối 64 Users.
- Anten 2x2 internal high power với kỹ thuật MIMO gia tăng vùng phủ sóng và loại bỏ điểm chết.
- Hỗ trợ tính năng Repeater, Bridge.
- Sẵn sàng hỗ trợ thoại IP và video streaming chất lượng cao.
- Thiết kế để bàn hoặc treo trần nhà gọn đẹp
- Delivers the next generation of Wi-Fi technology (802.11ac) to provide data rates up to AC1200 Mbps.
- Dual-Band AC1200 Speed, 3X 11N Speed
- Single Point Control: Clustering
- Range Boost with High-Power Antennas
- Captive Portal for Customized Wi-Fi Hotspot
UP TO AC1200 MBPS
Delivers next-generation 802.11ac wireless technology, at data rates up to 3x faster than 802.11n.
SINGLE POINT CONTROL: CLUSTERING
Simplifies administration and management efforts with a Single Point Control, reducing the costs and complexity of managing multiple wireless access points.
CAPTIVE PORTAL
Supports secure and customized guest Wi-Fi access that can be used at many Wi-Fi hotspots to control wireless access in the area.
3-IN-1 ACCESS POINT, WDS & WORKGROUP BRIDGE
Extends wired and wireless range with three modes: traditional access point, wireless distribution system (WDS), or wireless bridge.
EASY TO USE WITH POE+
Integrated with 802.3at Power over Ethernet Plus (PoE+) capability to eliminate external adapters and facilitate optimal placement.
COMPREHENSIVE NETWORK SECURITY
Protect and secure your wireless network with business-class security features including Wi-Fi Protected Access (WPA/WPA2), 802.1X Supplicant, MAC-based ACL, Rogue AP Detection, SSID-to-VLAN Mapping, and more.
Technical specifications
- Network Standards:
o IEEE 802.11a, 802.11b, 802.11g, 802.11n, 802.11ac
o WMM - Wireless Multimedia Prioritization
o Power over Ethernet Plus (PoE+) IEEE 802.3at
- Radio Frequency Bands:
2.4GHz and 5GHz (Concurrent)
- Ports:
o 1 x Gigabit LAN Port with IEEE 802.3at PoE+
o 1 x 12V/1.5A power port
- LEDs:
1 x System LED
- Buttons:
Reset Button
- MIMO:
2x2
- Antenna Type:
Internal PCBA Antenna
- Antenna Gain:
1.7dBi @2.4G, 1.9dBi @5G
- RF Transmit Power:
High Power PA
- Radio Frequency Channels:
o 2.412 to 2.462 GHz, 11 channels
o 5.180 to 5.240 GHz: 4 channels
o 5.745 to 5.825 GHz: 5 channels
- Receiver Sensitivity:
o 802.11b @11Mbps: -85dBm
o 802.11a/g@54Mbps: -73dBm
o 802.11n@HT20 MCS7: -67dBm
o 802.11n@HT40 MCS7: -65dBm
o 802.11n@HT40 MCS7: -65dBm
- Maximum Power Consumption:
13W
- Dimensions (LxWxH):
9.57 x 9.33 x 1.72 inches
- Weight:
1.12lb
- Operating Temperature:
0° to 40°C (32° to 104°F)
- Storage Temperature:
-20° to 70°C (-4° to 158°F)
- Operating Humidity:
10% to 85% non-condensing
- Storage Humidity:
10% to 90% non-condensing
- Mounting:
o Ceiling
o Wall
- Security Features:
o Multiple SSIDs (16)
o SSID Broadcast
o SSID to VLAN Mapping
o Wi-Fi Protected Access (WPA/WPA Mixed, WPA2) Personal and Enterprise
o RADIUS
o Mac-Based Access Control
o Rogue AP Detection
o 802.1X Supplicant
o Channel Isolation
- Security Lock:
Kensington Security Lock
- Quality Of Service:
o WMM
o Bandwidth Management
- Management Interface:
o SNMP
o HTTP
o HTTPS
- Regulatory Compliance:
FCC, CE, IC
- Advanced Features:
o Wireless Distribution System (WDS)
o Workgroup Bridge
o IGMP/MLD Snooping
o Scheduler
o Band Steering
o IPv6 Interface
o Dual Image Support
o Captive Portal
o Clustering
- Event Notification:
Local Log, Remote Syslog, and Email Alert
- Network Diagnostics:
Log, Ping, Packet Capture
- Warranty and Support:
Limited Lifetime Warranty
- Centralized Management System:
Clustering
-Bảo hành chính hãng: 12 tháng.
