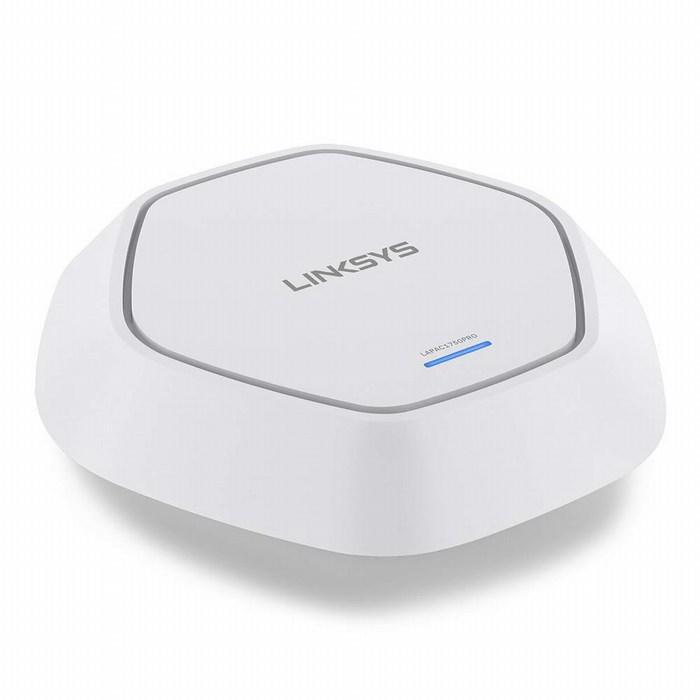

Business Access Point Wireless AC1750 Pro Dual-band with PoE LINKSYS LAPAC1750PRO

Business Access Point Wireless AC1750 Pro Dual-band with PoE LINKSYS LAPAC1750PRO

  • MS 000009015
  • LINKSYS
Giá : Liên hệ

Business Access Point Wireless AC1750 Pro Dual-band with PoE LINKSYS LAPAC1750PRO

Business Access Point Wireless AC1750 Pro Dual-band with PoE LINKSYS LAPAC1750PRO

-      Wireless Access Point chuẩn N/AC, hoạt động đồng thời với 2 tần số 2.4 GHz và 5GHz.

-      Cổng kết nối LAN Gbit hỗ trợ cấp nguồn PoE.

-      Hỗ trợ 16 SSID, 16 VLAN, mỗi SSID hỗ trợ tối đa kết nối 64 Users.

-      Anten 3x3 internal high power với kỹ thuật MIMO gia tăng vùng phủ sóng và loại bỏ điểm chết.

-      Hỗ trợ tính năng Repeater, Bridge.

-      Sẵn sàng hỗ trợ thoại IP và video streaming chất lượng cao.

-      Hỗ trợ: SINGLE POINT CONTROL (CLUSTER MANAGEMENT SYSTEM) và CAPTIVE PORTAL.

-      Thiết kế để bàn hoặc treo trần nhà gọn đẹp.

-      Delivers enterprise-grade software features and data rates up to 1750Mbps.

-      Dual Band AC1750 Speed, 3X11N Speed.

-      Single Point Control: Clustering.

-      Captive Portal for Customized Wi-Fi Hotspot.

-      User-Defined Client QoS for Every Connected Device.

UP TO AC1750 MBPS

Delivers next-generation 802.11ac wireless technology, at data rates up to 3x faster than 802.11n.

SINGLE POINT CONTROL: CLUSTERING

Simplifies administration and management efforts with a Single Point Control, reducing the costs and complexity of managing multiple wireless access points.

CAPTIVE PORTAL

Supports secure and customized guest Wi-Fi access that can be used at many Wi-Fi hotspots to control wireless access in the area.

3-IN-1 ACCESS POINT, WDS & WORKGROUP BRIDGE

Extends wired and wireless range with three modes: traditional access point, wireless distribution system (WDS), or wireless bridge.

EASY TO USE WITH POE+

Integrated 802.3at Power over Ethernet Plus (PoE+) capability eliminates external adapters and facilitate optimal placement.

COMPREHENSIVE NETWORK SECURITY

Protect and secure your wireless network with business class security features including Wi-Fi Protected Access (WPA/WPA2), 802.1X Supplicant Authentication, MAC-based ACL, Rogue AP Detection, SSID-to-VLAN Mapping, and more.

Technical specifications

-      Network Standards:

o   IEEE 802.11a, 802.11b, 802.11g, 802.11n, 802.11ac

o   WMM - Wireless Multimedia Prioritization

o   Power over Ethernet Plus (PoE+) IEEE 802.3at

-      Radio Frequency Bands:
2.4GHz and 5GHz (Concurrent)

-      Ports:

o   1 x Primary Gigabit LAN Port with IEEE 802.3at PoE+

o   1 x Secondary Gigabit LAN Port for Link Aggregation

o   1 x 12V/2A power port

-      LEDs:
1 x System LED

-      Buttons:
Reset Button

-      MIMO:
3x3

-      Antenna Type:
Internal PCBA Antenna

-      Antenna Gain:
4.4 dBi @2.4GHz; 5.2. dBi @5GHz

-      RF Transmit Power:
High Power PA

-      Radio Frequency Channels:

o   2.412 to 2.462 GHz, 11 channels

o   5.180 to 5.240 GHz: 4 channels

-      Receiver Sensitivity:

o   802.11b @11Mbps: -85dBm

o   802.11a/g@54Mbps: -73dBm

o   802.11n@HT20 MCS7: -67dBm

o   802.11n@HT40 MCS7: -65dBm

o   802.11n@HT40 MCS7: -65dBm

-      Maximum Power Consumption:
24W

-      Dimensions (LxWxH):
9.57 x 9.33 x 1.72 inches

-      Weight:
1.15lb

-      Operating Temperature:
0° to 40°C (32° to 104°F)

-      Storage Temperature:
-20° to 70°C (-4° to 158°F)

-      Operating Humidity:
10% to 85% non-condensing

-      Storage Humidity:
10% to 90% non-condensing

-      Mounting:

o   Ceiling

o   Wall

-      Security Features:

o   Multiple SSIDs (16)

o   SSID Broadcast

o   SSID to VLAN Mapping

o   Wi-Fi Protected Access (WPA/WPA Mixed, WPA2) Personal and Enterprise

o   RADIUS

o   IP and Mac-Based Access Control

o   Rogue AP Detection

o   802.1X Supplicant

o   Channel Isolation

-      Security Lock:
Kensington Security Lock

-      Quality Of Service:

o   WMM

o   Bandwidth Management

o   Client QoS

o   DiffServ Policy (IPv4 and IPv6)

-      Management Interface:

o   HTTP

o   HTTPS

o   SNMP

-      Regulatory Compliance:
FCC, CE, IC

-      Advanced Features:

o   Wireless Distribution System (WDS)

o   Workgroup Bridge

o   IGMP/MLD Snooping

o   Scheduler

o   Band Steering

o   IPv6 Interface

o   Link Aggregation

o   Dual Image Support

o   Captive Portal

o   Clustering

-      Event Notification:
Local Log, Remote Syslog, and Email Alerts

-      Network Diagnostics:
Log, Ping and Packet Capture

-      Warranty and Support:
Limited Lifetime Warranty

-      Centralized Management System:
Single Point Control: Clustering

-      Bảo hành chính hãng: 12 tháng.
