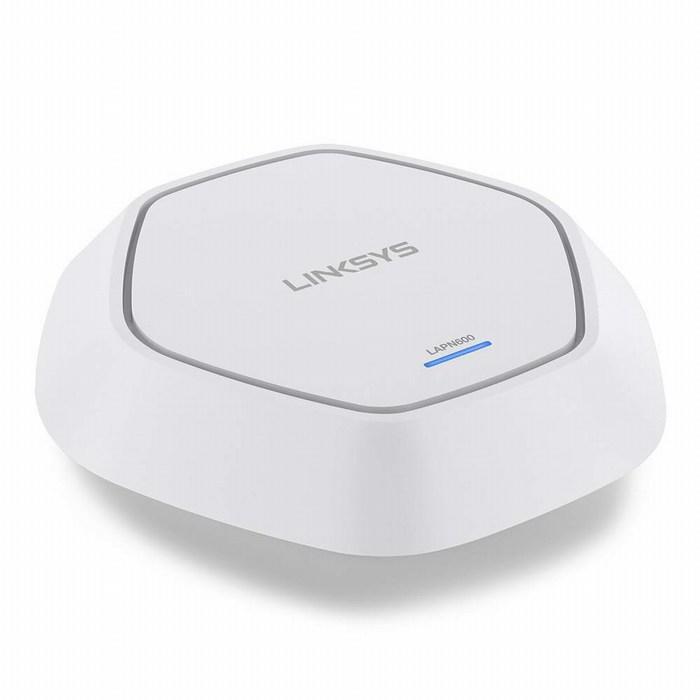

Business Access Point Wireless N600 Dualband with PoE LINKSYS LAPN600
- Wireless Access Point chuẩn N, Hoạt động đồng thời với 2 tần số 2.4 GHz và 5GHz.
- Cổng kết nối LAN Gbit hỗ trợ cấp nguồn PoE.
- Hỗ trợ 16 SSID, 16 VLAN, mỗi SSID hỗ trợ tối đa kết nối 64 Users.
- Anten 2x2 internal high power với kỹ thuật MIMO gia tăng vùng phủ sóng và loại bỏ điểm chết.
- Hỗ trợ tính năng Repeater, Bridge.
- Sẵn sàng hỗ trợ thoại IP và video streaming chất lượng cao.
- Thiết kế để bàn hoặc treo trần nhà gọn đẹp
- Employs Wi-Fi technology (802.11n) to provide a fast, powerful wireless network at a transfer rate of up to 600 Mbps.
- Integrated Power over Ethernet
- Dual Band (2.4 GHz + 5 GHz) capability and speeds up to 600 Mbps.
- Industrial-strength Wi-Fi Protected Access (WPA, WPA2) security and data encryption
- IPv6 Support
- High Power PA for better Wi-Fi coverage
UP TO N600 MBPS
Provides high-speed connectivity for notebooks, smartphones, tablets, and other Wi-Fi enabled devices
HIGH POWER WIRELESS COVERAGE
High power offers better, wider wireless coverage for you and your business, strengthening your network connection in hard-to-reach areas.
GIGABIT ETHERNET PORT
Wireless clients can enjoy faster speeds by maximizing wireless-to-wired performance. Gigabit Ethernet is 10x faster than Fast Ethernet.
3-IN-1 ACCESS POINT, WDS & WORKGROUP BRIDGE
Extends wired and wireless range with three modes: traditional access point, wireless distribution system (WDS), or wireless bridge.
EASY TO USE WITH POE+
Integrated with 802.3at Power over Ethernet Plus (PoE+) capability to eliminate external adapters and facilitate optimal placement.
ADVANCED NETWORK SECURITY
Protect your network with advanced security features including Rogue AP detection, SSID to VLAN mapping, and 802.1X Supplicant.
Technical specifications
- Network Standards:
o IEEE 802.11n
o IEEE 802.11g
o IEEE 802.11b
- Radio Frequency Bands:
Concurrent Dual-Band 2.4 GHz and 5 GHz
- 802.1q VLAN:
Yes, 802.1q-based VLAN
- Ports:
1 Gigabit Ethernet Port
- PoE:
802.3at
- LEDs:
One system LED
- MIMO:
2x2
- Antenna Type:
Internal
- Antenna Gain:
o 1.8 dBi @ 2.4 GHz;
o 3.5 dBi @ 5 GHz
- RF Transmit Power:
o 802.11b @ 11 Mbps: 21 dBm
o 802.11g @ 54 Mbps: 20 dBm
o 802.11n @ HT20/HT40 MCS7/15: 19 dBm
- Radio Frequency Channels:
o 2.412 to 2.462 GHz; 11 channels
o 5.180 to 5.240 GHz; 4 channels
o 5.745 to 5.825 GHz; 5 channels
- Receiver Sensitivity:
o 802.11b @ 11 Mbps: -85 dBm
o 802.11a/g @ 54 Mbps: -70 dBm
o 802.11n @ HT20 MCS7/15: -65 dBm
o 802.11n @ HT40 MCS7/15: -62 dBm
- Maximum Power Consumption:
17W
- Dimensions (LxWxH):
243.08 x 236.98 x 43.69 mm (9.57 x 9.33 x 1.72 in)
- Weight:
498.95 g (1.10 lb)
- Operating Temperature:
0° to 40°C (32° to 104°F)
- Storage Temperature:
-20° to 70°C (-4° to 158°F)
- Operating Humidity:
10% to 85% (non-condensing)
- Storage Humidity:
10% to 90% (non-condensing)
- Mounting:
o Ceiling
o Wall
o Desktop
- Number of VLANs Supported:
17, 1 management VLAN plus 16 VLANs for SSID
- Security Lock:
Kensington lock slot
- Access Control:
Yes, MAC based ACL with local or remote RADIUS server authentication
- Management Interface:
o HTTP
o HTTPS
o SNMP
- Regulatory Compliance:
o Class B, Wireless;
o FCC, CE, IC
- Rate Limiting:
Yes, Bandwidth Management per SSID
- Event Notification:
Local Log, Remote Syslog, and Email Alert
- Network Diagnostics:
Log, Ping, Packet Capture
- Warranty and Support:
Limited Lifetime
- 802.1X Supplicant:
Yes
- Band Steering:
Yes
- External Power Amplifier:
High Power PA
- Isolation of Wireless Clients in the Same SSID:
Yes
- Reset Button:
Yes
- Rogue AP Detection:
Yes
- Scheduler:
Yes, Time-based profiles per SSID
- SSID to VLAN Mapping:
Yes
- Wireless Security:
o WEP
o 802.1X RADIUS
- WMM:
Yes
- Workgroup Bridge:
Yes
