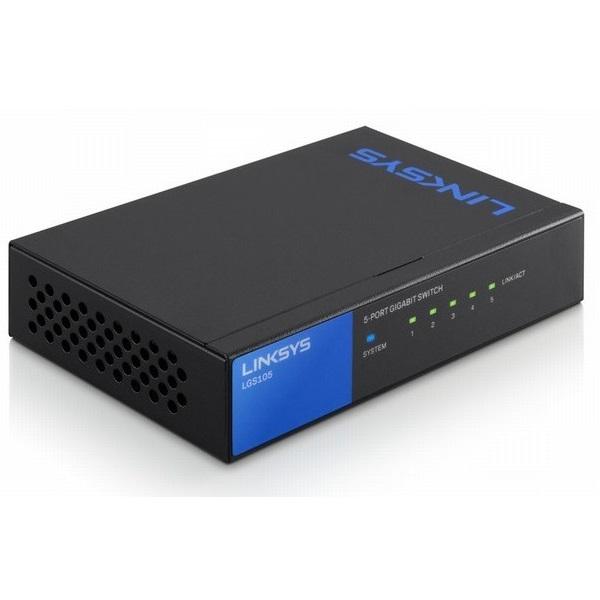

5-Port Business Desktop Gigabit Switch LINKSYS LGS105
Accelerate your performance and productivity when you send large files to network servers, drives, and printers at Gigabit speeds.
- 5 Port 10/100/1000 Mbps with MDI and MDI crossover (MDI-X); auto negotiated port.
- Bandwidth: 16 Gbps (non-blocking).
- Performance: Full line rate and forwarding rate of 64B frame at: 1.488Mpps for 1000M port; 0.1488Mpps for 100M port; 0.01488Mpps for 10M port.
- Wired connection speed up to 1000 Mbps
- 5 Gigabit Ethernet auto-sensing ports.
- Easy plug & play connection.
- QoS
- Meets EEE (Energy Efficient Ethernet) 802.3az standard.
GIGABIT PERFORMANCE
Minimize transfer times and interference while streaming high-bandwidth files to connected devices.
PLUG-AND-PLAY CONVENIENCE
Instantly extend your office network with a quick and easy installation.
AUTO-SENSING PORTS
Automatically optimize speed for each connected device.
POWER-SAVING FEATURES
The auto power-down feature disables unused ports, smart power is ideal for short cable runs, and the port status switch controls LED lights.
Technical specifications
- Network Standards:
o IEEE 802.3
o IEEE 802.3u
o IEEE 802.3x
o IEEE 802.3ab
o IEEE 802.3az
- Ports:
5 Gigabit Ethernet (10/100/1000) Ports
- LEDs:
Link and activity indicators
- Performance:
o Full line rate and forwarding rate of 64B frame at:
o 1.488Mpps for 1000M port
o 0.1488Mpps for 100M port
o 0.01488Mpps for 10M port
- MAC Address Table Size:
8,000 entries
- Bandwidth:
10 Gbps (non-blocking)
- Fans:
None
- Minimum System Requirements:
Connected devices need Ethernet connectivity and Ethernet cables.
- Dimensions (LxWxH):
121 x 75 x 26 mm (4.76 x 2.95 x 1.02 in.)
- Weight:
0.248 kg (0.55 lbs)
- Power:
110-240V AC, 50/60Hz, 5V DC, 1.0A
- Power Consumption:
0.73W / 2.22W
- Power Saving:
Cable connected detection, sleep mode
- Power Supply:
External
- Operating Temperature:
0–40°C (32–104°F)
- Storage Temperature:
-20–70°C (-4–158°F)
- Operating Humidity:
10–90% (non-condensing)
- Storage Humidity:
10–90% (non-condensing)
- Mounting:
Wall
- Regulatory Compliance:
FCC Class B, CE
