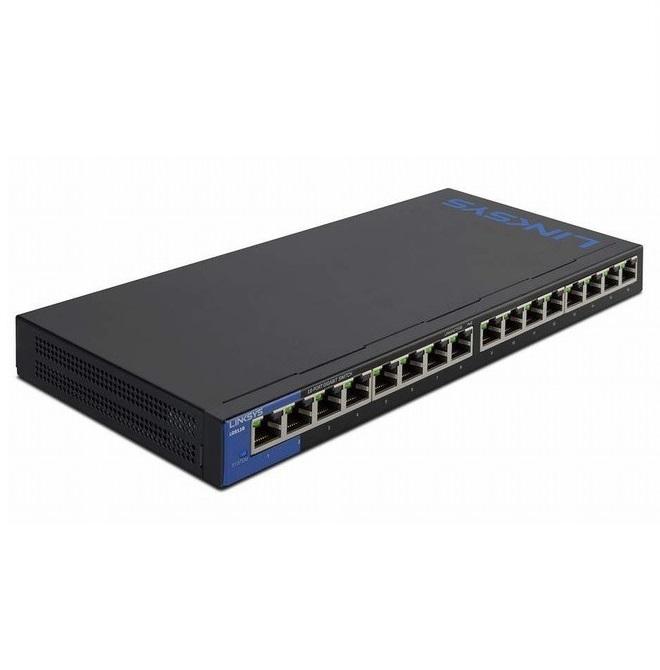

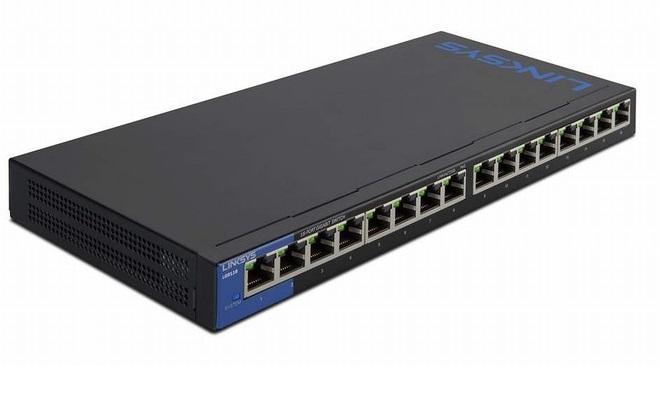

16-Port Business Desktop Gigabit Switch LINKSYS LGS116
- Accelerate your performance and productivity when you send large files to network servers, drives, and printers at Gigabit speeds.
- 16 Port 10/100/1000 Mbps with MDI and MDI crossover (MDI-X); auto negotiated port.
- Bandwidth: 32 Gbps (non-blocking).
- Performance: Full line rate and forwarding rate of 64B frame at: 1.488Mpps for 1000M port; 0.1488Mpps for 100M port; 0.01488Mpps for 10M port.
- Wired connection speed up to 1000 Mbps
- 16 Gigabit Ethernet auto-sensing ports
- Easy plug & play connection
- Meets EEE (Energy Efficient Ethernet) 802.3az standard
Minimize transfer times and stream high-bandwidth files to connected devices without interference.
Instantly extend your office network with a quick and easy installation.
QUALITY OF SERVICE (QOS) TRAFFIC PRIORITIZATION
Prioritize traffic to particular devices or activities & maintain mission-critical data throughput regardless of network congestion.
Automatically optimize speed for each connected device.
The auto power-down feature disables unused ports, smart power is ideal for short cable runs, and the port status switch controls LED lights.
- Network Standards:
o IEEE 802.3
o IEEE 802.3u
o IEEE 802.3x
o IEEE 802.3ab
o IEEE 802.3az
16 Gigabit Ethernet (10/100/1000) Ports
Link, speed, and activity indicators
o Full line rate and forwarding rate of 64B frame at:
o 1.488Mpps for 1000M port
o 0.1488Mpps for 100M port
o 0.01488Mpps for 10M port
- MAC Address Table Size:
32 Gbps (non-blocking)
- Minimum System Requirements:
Connected devices need Ethernet connectivity and Ethernet cables
- Dimensions (LxWxH):
280 x 120 x 25 mm (109.2 x 46.8 x 9.75 in.)
0.774 kg (1.71 lbs)
12 VDC, 1 A
- Power Consumption:
2.66 W / 9.32 W
- Power Saving:
Cable connected detection, sleep mode
- Power Supply:
- Operating Temperature:
- Storage Temperature:
- Operating Humidity:
- Storage Humidity:
- Quality Of Service:
802.1p and DSCP
- Regulatory Compliance:
FCC Class A, CE
- Bảo hành chính hãng: 12 tháng.
