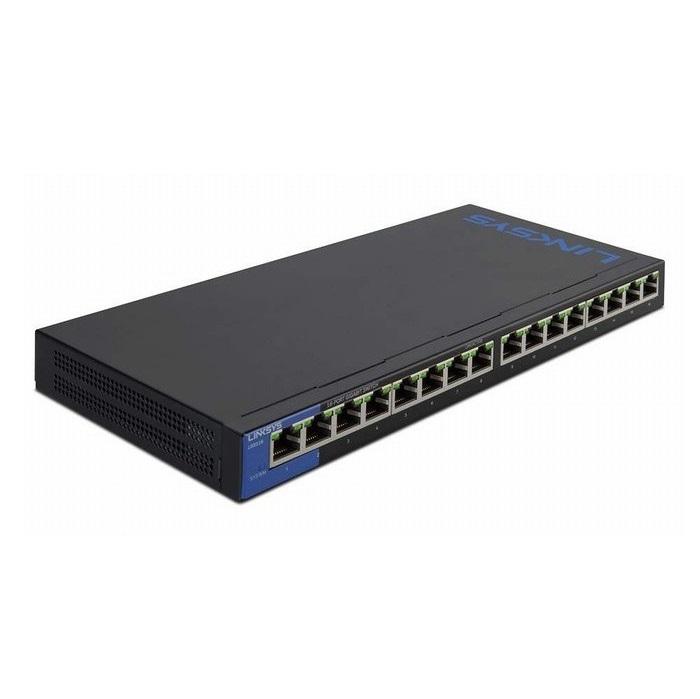

16-Port Business Desktop Gigabit PoE+ Switch LINKSYS LGS116P

-      Upgrade the data paths of your local wired network to information superhighways with 16-port desktop Gigabit PoE switches.

-      16-port GB switch with 8 ports PoE+ (Port 1-8), PoE power budget of 80W.

-      Bandwidth: 32 Gbps (non-blocking).

-      Performance: Full line rate and forwarding rate of 64B frame at: 1.488Mpps for 1000M port; 0.1488Mpps for 100M port; 0.01488Mpps for 10M port.
Wired connection speed up to 1,000 Mbps

-      16 Gigabit Ethernet autosensing ports

-      Power over Ethernet Plus (PoE+) support

-      Easy plug & play connection

-      QoS

-      Meets EEE (Energy Efficient Ethernet) 802.3az standard

GIGABIT PERFORMANCE

Minimize transfer times and stream high-bandwidth files to connected devices without interference.

PLUG-AND-PLAY CONVENIENCE

Instantly extend your office network with a quick and easy installation.

QUALITY OF SERVICE (QOS) TRAFFIC PRIORITIZATION

Prioritize traffic to particular devices or activities & maintain mission-critical data throughput regardless of network congestion.

AUTO-SENSING PORTS

Automatically optimize speed for each connected device.

INTEGRATED POWER OVER ETHERNET PLUS (POE+)

Makes installation simple and inexpensive by eliminating the need for additional power cables and nearby power outlets. Backwards compatible with 802.3af (PoE) standard.

Technical specifications

-      Network Standards:

o   IEEE 802.3

o   IEEE 802.3u

o   IEEE 802.3x

o   IEEE 802.3ab

o   IEEE 802.3az

o   IEEE 802.3af

o   IEEE 802.3at (PoE+)

-      Ports:
16-port switch with 8 PoE+ ports (first 1–8 ports) and dedicated PoE power budget of 80 W

-      LEDs:
Link, speed, activity, and PoE indicators

-      Performance:

o   Full line rate and forwarding rate of 64B frame at:

o   1.488 Mpps for 1000M port

o   0.1488 Mpps for 100M port

o   0.01488 Mpps for 10M port

-      MAC Address Table Size:
8,000 entries

-      Bandwidth:
32 Gbps (non-blocking)

-      Fans:
None

-      Minimum System Requirements:
Connected devices need Ethernet connectivity and Ethernet cables.

-      Dimensions (LxWxH):
280 x 120 x 25 mm (11.0 x 4.7 x 1.0 in.)

-      Weight:
0.822 kg (1.81 lbs)

-      Power:
54 VDC, 1.66 A

-      Power Consumption:
4.52 W / 11.31 W

-      Power Saving:
Cable connected detection, sleep mode

-      Power Supply:
External

-      Operating Temperature:
0–50°C (32–122°F)

-      Storage Temperature:
-40–70°C (-40–158°F)

-      Operating Humidity:
10–90% (non-condensing)

-      Storage Humidity:
10–90% (non-condensing)

-      Mounting:
Wall

-      Quality Of Service:
802.1p and DSCP

-      Regulatory Compliance:
FCC Class A, CE

-      Bảo hành chính hãng: 12 tháng.
