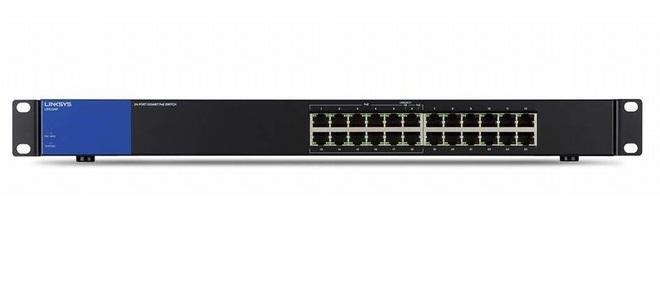

24-Port Business Desktop Gigabit PoE+ Switch LINKSYS LGS124p
- Upgrade the data paths of your local wired network to information superhighways with 24-port desktop Gigabit PoE+ switches.
- 24-port GB switch with 12 ports PoE+ (Port 1-6, 13-18), PoE power budget of 120W.
- Bandwidth: 48 Gbps (non-blocking).
- Performance: Full line rate and forwarding rate of 64B frame at: 1.488Mpps for 1000M port; 0.1488Mpps for 100M port; 0.01488Mpps for 10M port.
- Wired connection speed up to 1,000 Mbps
- 24 Gigabit Ethernet autosensing ports
- Power over Ethernet Plus (PoE+) support
- Easy plug & play connection
- QoS
- Meets EEE (Energy Efficient Ethernet) 802.3az standard
GIGABIT PERFORMANCE
Minimize transfer times and stream high-bandwidth files to connected devices without interference.
PLUG-AND-PLAY CONVENIENCE
Instantly extend your office network with a quick and easy installation.
QUALITY OF SERVICE (QOS) TRAFFIC PRIORITIZATION
Prioritize traffic to particular devices or activities & maintain mission-critical data throughput regardless of network congestion.
AUTO-SENSING PORTS
Automatically optimize speed for each connected device.
INTEGRATED POWER OVER ETHERNET PLUS (POE+)
Makes installation simple and inexpensive by eliminating the need for additional power cables and nearby power outlets. Backwards compatible with 802.3af (PoE) standard.
Technical specifications
- Network Standards:
o IEEE 802.3
o IEEE 802.3u
o IEEE 802.3x
o IEEE 802.3ab
o IEEE 802.3az
o IEEE 802.3af
o 802.3at (PoE+)
- Ports:
24-port switch with 12 PoE+ ports (ports 1–6 and 13–18) and dedicated PoE power budget of 120 W
- LEDs:
Link, speed, activity, and PoE indicators
- Performance:
o Full line rate and forwarding rate of 64B frame at:
o 1.488 Mpps for 1000M port
o 0.1488 Mpps for 100M port
o 0.01488 Mpps for 10M port
- MAC Address Table Size:
8,000 entries
- Bandwidth:
48 Gbps (non-blocking)
- Fans:
One
- Minimum System Requirements:
Connected devices need Ethernet connectivity and Ethernet cables.
- Dimensions (LxWxH):
440 x 200 x 44 mm (17.3 x 7.9 x 1.7 in.)
- Weight:
2.758 kg (6.08 lbs)
- Power Consumption:
7.79 W / 17.65 W
- Power Input:
100–240 VAC, 50/60 Hz
- Power Saving:
Cable connected detection, sleep mode
- Power Supply:
Internal
- Operating Temperature:
0–50°C (32–122°F)
- Storage Temperature:
-40–70°C (-40–158°F)
- Operating Humidity:
10–90% (non-condensing)
- Storage Humidity:
10–90% (non-condensing)
- Mounting:
Rack
- Quality Of Service:
802.1p and DSCP
- Regulatory Compliance:
FCC Class A, CE, UL, CB
- Bảo hành chính hãng: 12 tháng.
