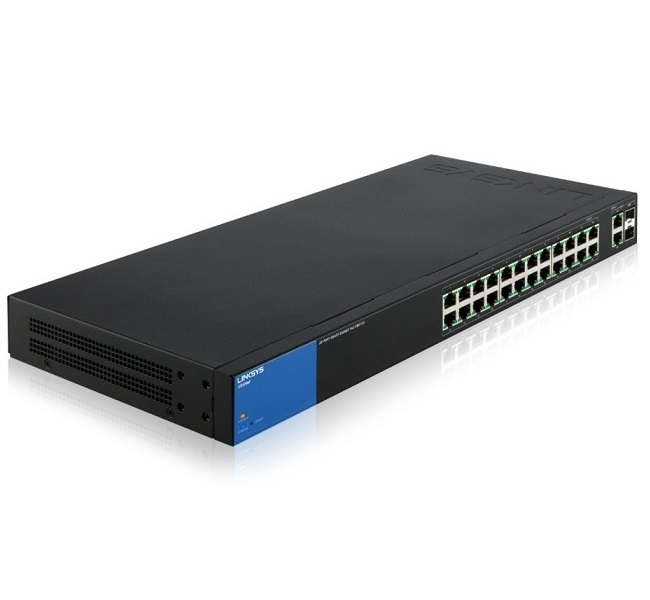

26-Port Smart PoE+ Switch LINKSYS LGS326MP-AP
Ports
- Total System Ports: 26GE
- Copper FE/GE Ports (RJ45): g01–g12, g13–g24
- Combo Ports (RJ45 + SFP): 2 combo on ports g25, g26
- Number of Ports with PoE+ Support: 24
Forwarding Rate
- 38.69 Mpps
Switching Capacity
- 52 Gbps
MAC Address Table Size
- 8K
Link Aggregation
- IEEE 802.3ad LACP, up to 4 groups with up to 8 ports per group
VLAN
- Port-based and 802.1q tag-based VLANs, Management VLAN, Guest VLAN support, Dynamic VLAN assignment via Radius server with 802.1x client authentication
Number of VLANs Supported
- 128 active VLANs (4,096 range)
Auto Voice VLAN
- Voice traffic is automatically assigned by OUI to a voice-specific VLAN and treated with appropriate levels
IGMP Snooping
- IGMP (v1/v2/v3) snooping provides for fast client joins and leaves of multicast streams and limits bandwidth-intensive video traffic to only the requestors; supports 256 multicast groups
HOL Blocking Prevention
- Head of line (HOL) blocking prevention
Port Mirroring
- Traffic on multiple ports (up to 4 ports) can be mirrored to another port for analysis with a network analyzer
Security Features
- 802.1x Radius authentication
- DHCP snooping
- IP-MAC binding
- Port security supports limited dynamic lock and locked MAC address
- Management access control
Storm Control
- Broadcast, flooding, and multicast
Quality Of Service
- Port-based, 802.1p priority-based, IPv4/v6 IP DSCP-based
Quality Of Service
- Port-based, 802.1p priority-based, IPv4/v6 IP DSCP-based
RMON
- Embedded remote monitoring (RMON) software agent support for enhanced traffic management, monitoring, and analysis
Management Interface
- HTTP
- HTTPS
Other Management
- Telnet (menu-driven), DHCP client, system log, configuration unload and backup via HTTP or TFTP, PING, dual images, SNTP
SNMP
- Version 1
- Version 2c
- Version 3
General
- Power Input: 100–240V
- Power Dedicated to PoE+: 384W
- Dimensions (LxWxH): 440 x 200 x 44 mm
- Weight: 3.14kg
- Bảo hành: 36 tháng.
