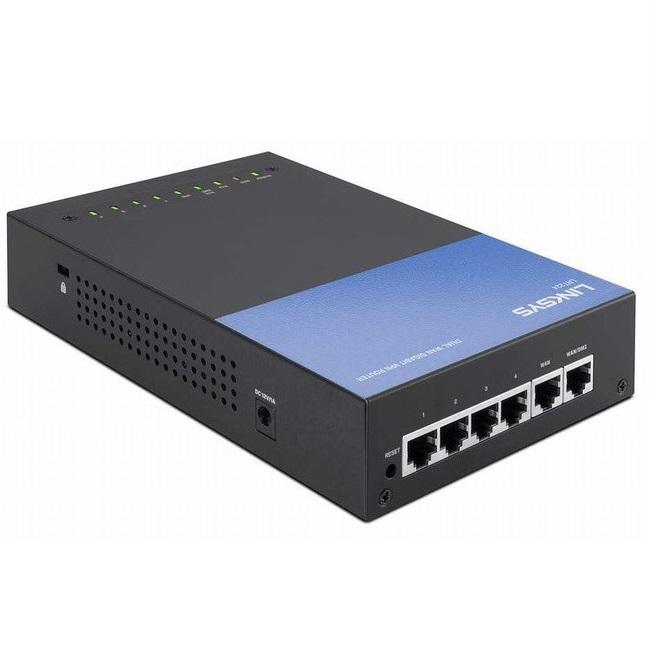

Dual Wan Business Gigabit VPN Router LINKSYS LRT224
-Bao gồm: 2 Port WAN GB 2 Port WAN GB, hoạt động theo cơ chế Load Balancing hoặc SmartLink Backup, 4 Port LAN GB cho kết nối LAN.
-Hỗ trợ Quality of Service (QoS) bao gồm: Application-based priority on WAN port, Rate control or priority, Upstream/ downstream bandwidth can be configured per service...
-Tính năng firewall mạnh giúp công ty bạn kết nối an toàn. Hỗ trợ 50 kết nối VPN Client cho người dùng di động và 50 kết nối Site-Site.
-PERFORMANCE: IPsec VPN throughput (Mbps) 110, Maximum NAT throughput (Mbps) 900, Maximum concurrent connections 30,000.
- Load balancing and WAN failover offer highly reliable Internet connectivity for all your employees, at work or remotely. Learn More
-Open VPN Server Support
-Dual-WAN Load Balancing
- Integrated Firewall
- 802.1q VLAN
- EasyLink VPN for simple VPN Setup
- Superior IP Sec Throughput
OPENVPN SERVER SUPPORT
Allows OpenVPN clients running on employees’ laptops, smartphones, and tablets to connect to the offices using two-factor authentication.
WAN FAILOVER
Supports WAN Failover, which allows a business to continue its network operation when one of its WAN connections to the Internet fails.
DUAL-WAN LOAD BALANCING
Aggregates bandwidths of both WAN connections to achieve a higher Internet bandwidth than what a single WAN connection can provide.
INTEGRATED FIREWALL
Supports URL filtering and access rules that allow administrator to further regulate the traffic within the business network based on the services (i.e. TCP/UDP ports) and source/destination IP addresses.
802.1Q (VLAN TAGGING)
Keeps resources in different SSIDs/VLANs separated, while allowing specified traffic to traverse between VLANs with inter-VLAN routing.
INTUITIVE WEB ADMINISTRATIVE INTERFACE
Allows small business owners to deploy and manage the routers without professional IT staff onsite.
Technical specifications
- Dual-WAN:
o Link failover, load balancing
o Protocol & IP binding to a WAN port
- Firewall:
o SPI (Stateful Packet Inspection)
o DoS (Denial of Service) prevention
o Schedule-based access rules (50)
o Web filtering (URL and keyword blocking)
o Block Java, cookies, ActiveX, http proxy servers
o IGMP proxy
o UPnP
- Site-to-Site VPN:
o 50 IPsec site-to-site tunnels
o Split DNS over site-to-site tunnel
o VPN backup for site-to-site tunne
o DPD (Dead Peer Detection)
o Keep alive
o NAT-traversal
- Remote Access VPN:
o OpenVPN
o PPTP
o Client-to-Site IPsec
- NAT:
o Gateway mode
o Router mode
- NAPT:
o 1-to-1 NAT (10)
o Port forwarding (30)
o Port triggering (30)
o Port address translation (30)
o DMZ host
- DMZ Port:
o DMZ Range
o DMZ Subnet
- 802.1q VLAN:
5 tagged VLANs (supporting inter-VLAN routing, inter-VLAN access rules)
- DHCP Server:
Supports multiple address pools, one pool per VLAN subnet
- DNS:
o DNS Proxy
o DNS Local Database
- Monitoring/Alerting:
o Syslog
o Email Alert
o SNMP Trap
- WAN Connection:
o Dynamic IP
o PPPoE
o PPTP
o L2TP
o Static IP
o Transparent Bridge
- DDNS:
o Dynamic DNS (DynDNS, 3322)
o NOIP
o ChangeIP
- Routing:
Static
- IPv6:
o DHCPv6-PD
o 6to4
o Router Advertisement
- Maintenance:
o Configuration backup and restore
o Dual configurations (startup and mirror)
o Firmware upgrade
o Diagnostics (ping and DNS name lookup)
o Reboot
o Factory defaults
- Status and Statistics:
o WAN connection status
o VPN tunnel/user status
o Port status and statistics
- Ports:
One 10/100/1000 RJ45 WAN port, One 10/100/1000 RJ45 WAN/DMZ port, Four 10/100/1000 RJ45 LAN ports, OpenVPN for mobile platforms (iOS, Android)
- LEDs:
System, DIAG, WAN, DMZ. VPN, LAN 1–4
- Port Management:
o 10/100/1000 Mbps
o Auto negotiation
o Half/Full duplex
- Performance:
o IPsec VPN throughput: 110 Mbps
o Maximum NAT throughput: 900 Mbps
o Maximum concurrent connections: 30,000
- Dimensions (LxWxH):
191 x 130 x 40 mm
- Weight:
722.2 grams (28.43 oz)
- Power:
12 V, 1 A
- Operating Temperature:
0ºC to 40ºC (32ºF to 104ºF)
- Storage Temperature:
0ºC to 70ºC (32ºF to 158ºF)
- Storage Humidity:
5% to 90% non-condensing
- Mounting:
o Wall
o Desktop
- VLAN Trunking:
VLAN trunking allowing connection to access points (with multiple SSIDs) and additional smart or managed switches
- Security Lock:
Kensington Lock
- Regulatory Compliance:
FCC Class B, CE Class B
- Warranty and Support:
Limited Lifetime Warranty
- Bandwidth Management:
Rate control allowing limiting upstream and downstream bandwidth per service and IP; Priority scheme allowing services mapped to 3 levels of priority
- LEDs:
System, DIAG, WAN, DMZ. VPN, LAN 1-4
- Non-operating Temperature:
0ºC to 70ºC (32ºF to 158ºF)
- Reset Button:
Yes
- UPnP:
Yes
- Web-based Administrative Interface:
o Browser supporting IE
o Firefox
o Safari
o Setup wizard
o Remote management over HTTPS
- Bảo hành chính hãng: 12 tháng.
