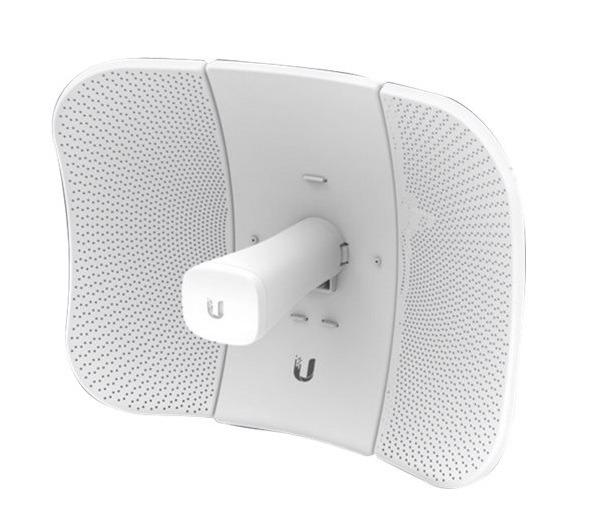

Thiết bị kết nối vô tuyến UBIQUITI Lite Beam AC Gen2
- Chuẩn: IEEE 802.11 a/n/ac.
- Chế độ hoạt động: AP, WDS Point-to-Point, Point-to-MultiPoint.
- Tốc độ: 450+ Mbps.
- Cổng LAN: 1 x 10/100/1000 Mbps port.
- Công suất phát: Mạnh.
- Antenna định hướng: 23 dBi.
- Góc phát sóng: 15°.
Đặc tính kỹ thuật
| Model | LBE-5AC-Gen2 |
| Power Supply | 24V, 0.3A Gigabit PoE Adapter (Included) |
| Max. Power Consumption | 7W |
| Power Method | Passive PoE (Pairs 4, 5+; 7, 8 Return) |
| Supported Voltage Range | 24V ± 10% |
| Gain | 23 dBi |
| Networking Interface | (1) 10/100/1000 Ethernet Port |
| Processor | MIPS 74Kc |
| Memory | 64 MB DDR2 |
| LEDs | Power, Ethernet |
| PtP Mode | 10/20/30/40/50/60/80 MHz |
| PtMP Mode | 10/20/30/40 MHz |
| Enclosure | Reflector (SGCC 0.6T) / Plastic: PC |
| Mounting | Pole-Mounting Kit (Included) |
| Wind Loading | 275 N @ 200 km/h (61.8 lbf @ 125 mph) |
| Wind Survivability | 200 km/h (125 mph) |
| ESD/EMP Protection | ± 24 kV Contact / Air |
| Operating Temperature | 40 to 70° C (-40 to 158° F) |
| Operating Humidity | 5 to 95% Noncondensing |
| Dimensions | 358 x 271.95 x 272.5 mm |
| Weight | 800g |
- Bảo hành: 12 tháng.
