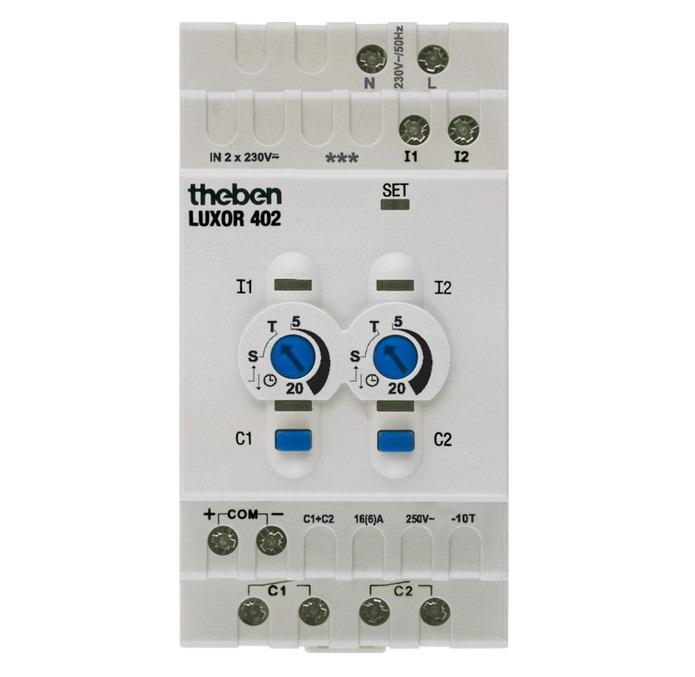

Living Comfort Control THEBEN LUXOR 402
- 2-channel upgrade device for lighting control.
- Modular expandable system with central functions.
- For switching electrical consumers.
- Manual switch on device.
- LEDs to display.
- 2 time functions (staircase light function with switch-off warning, lag function).
- Upgradeable for up to 16 LUXOR modules.
- Central ON/OFF, panic function and presence simulation.
- LUXOR modules are connected via 2-wire bus cable (COM bus).
- Max. input cable length up to 100 m.
- Input separate for connecting FI (RCD).
- Universal voltage input: 8–48 V AC/DC (e. g. for intercoms).
- Control for configuring central functions.
Specifications
| Model | LUXOR 402 |
| Operating voltage | 230 VAC |
| Frequency | 50Hz |
| Width | 2,5 modules |
| Installation type | DIN rail |
| Stand-by consumption | ~1,3 W |
| Capacity loss max | 1,4W |
| Number of channels | 2 |
| Type of contact | NO Contact |
| Connecting cable | 230 V phase-independent supply cable, max. cable length 100 m |
| Connection for COM | EIB/KNX bus line type YCYM or Y(ST)Y or communication line J-Y(ST)Y/length up to 100 m |
| Switching capacity | 16 A (at 250 V AC, cos φ = 1), 6 A (at 250 V AC, cos φ = 0.6) |
| Suitable for SELV | No |
| Ambient temperature | -10°C … +50°C |
| Protection class | II according to EN 60 730-1 |
| Type of protection | IP20 |
