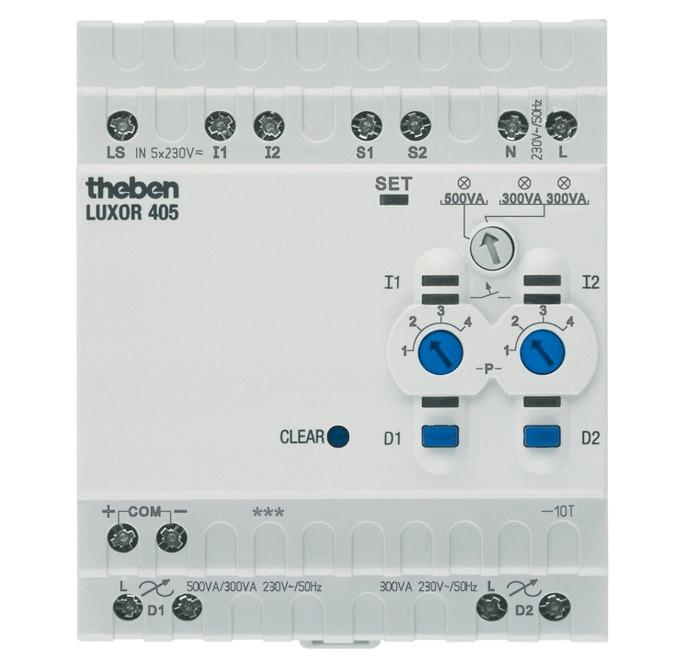

Living Comfort Control THEBEN LUXOR 405
- 2-channel universal dimmer.
- For dimming electric consumers such as incandescent lamps, high-voltage halogen lamps, low-voltage halogen lamps with conventional or electronic transformers.
- 300 W/VA (for 2 channels) or 500 W/VA (for 1 channel).
- For conventional and electronic transformers.
- Can also be used without base module.
- Manual switch on device.
- LEDs to display.
- Upgradeable for up to 16 LUXOR modules.
- LUXOR modules are connected via 2-wire bus cable (COM bus).
- One additional input per channel for motion detector.
- With overcurrent display.
- Input for up to 3 light settings.
- 4 program options for dimming response.
- P1: Button function without memory | P2: Button function with memory | P3: Staircase function can be retriggered with reduced dimming as advance shut-off warning | P4: Night light function switchable ro full light, independently reducing dimming to night light.
- Central functions: Presence simulation, central OFF, panic function, central ON.
Specifications
| Model | LUXOR 405 |
| Operating voltage | 230 VAC |
| Frequency | 50Hz |
| Width | 4 modules |
| Installation type | DIN rail |
| Stand-by consumption | ~1W |
| Number of channels | 2 |
| Type of contact | Triacs |
| Connecting cable | 230 V phase-independent supply cable, max. cable length 100 m |
| Connection for COM | EIB/KNX bus line type YCYM or Y(ST)Y or communication line J-Y(ST)Y/length up to 100 m |
| Functions channels | Universal dimmer with 300 VA |
| Protection class | II according to EN 60 730-1 |
| Type of protection | IP20 |
- Hãng sản xuất THEBEN của Đức.
- Bảo hành: 12 tháng.
