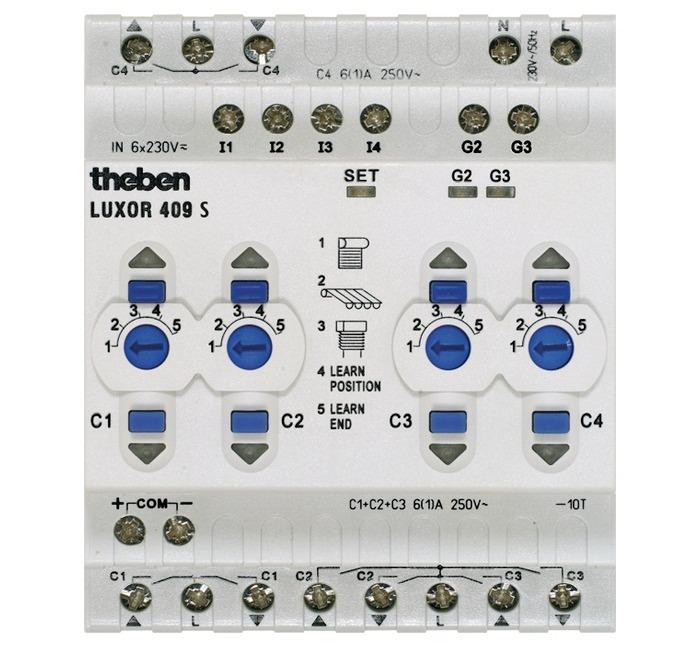

Living Comfort Control THEBEN LUXOR 409 S
- 4-channel shutter upgrade module.
- For controlling shutters, awnings or blinds.
- Separate control of 4 shutters with UP/DOWN/STOP.
- Manual switch on device.
- LEDs to display.
- Controllable via standard shutter sensor.
- Upgradeable for up to 16 LUXOR modules.
- LUXOR modules are connected via 2-wire bus cable (COM bus).
- Setting option for panic function (via LUXOR 400).
- Storable intermediate position and turn for shading and ventilation.
- 2 diode modules (9070367) supplied in delivery.
Specifications
| Model | LUXOR 409 S |
| Operating voltage | 230 VAC |
| Frequency | 50Hz |
| Width | 4 modules |
| Installation type | DIN rail |
| Stand-by consumption | ~1,3W |
| Number of channels | 4 |
| Type of contact | NO contact |
| Connecting cable | 230 V phase-independent supply cable, max. cable length 100 m |
| Connection for COM | EIB/KNX bus line type YCYM or Y(ST)Y or communication line J-Y(ST)Y/length up to 100 m |
| Switching capacity | 6 A (at 250 V AC, cos φ = 1) |
| Functions channels | Shutter, blinds and awning control |
| Suitable for SELV | No |
| Ambient temperature | -10°C … +50°C |
| Protection class | II according to EN 60 730-1 |
| Type of protection | IP20 |
