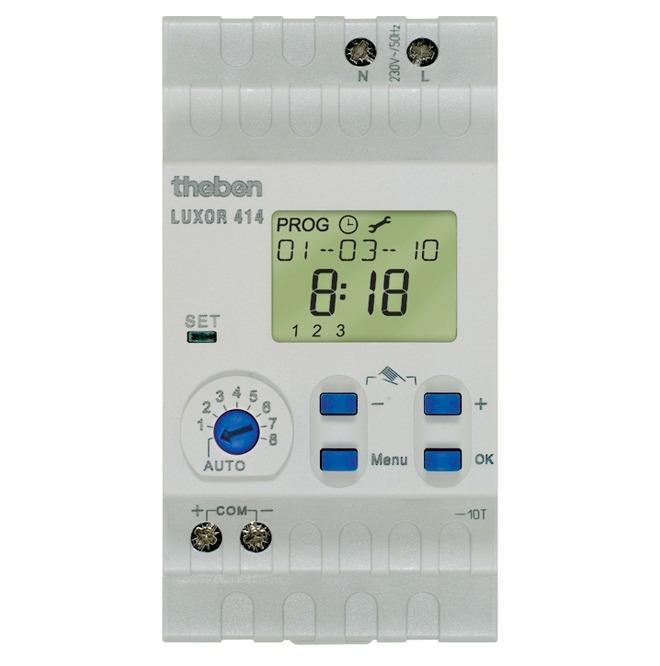

Living Comfort Control THEBEN LUXOR 414
- 8-channel time switch.
- For control of any outputs in LUXOR system, e.g. shutters, blinds and awnings or for lighting control.
- Manual switch on device.
- Daily and weekly programs.
- Astronomical program (dependent on sunrise and sunset).
- Freely programmable switching times as well as pre-programmed astronomical switching times.
- Easy location input via city list.
- Individual link of time switch channels with the outputs via selector switch.
- Positioning of drives (LUXOR 408/LUXOR 409) as well as transmission of dimming values (LUXOR 405) as percentage values.
- Blocking times for suppression of brightness or twilight signals from sensor module (LUXOR 411).
- Astronomical blocking times for time shifts for moving shutters/awnings up and down.
- Automatic summer/winter time changeover.
- LUXOR modules are connected via 2-wire bus cable (COM bus).
Specifications
| Model | LUXOR 414 |
| Operating voltage | 230VAC |
| Frequency | 50 Hz |
| Width | 2,5 modules |
| Installation type | DIN rail |
| Stand-by consumption | 1,3W |
| Number of channels | 8 |
| Connection for COM | EIB/KNX bus line type YCYM or Y(ST)Y or communication line J-Y(ST)Y/length up to 100 m |
| Number of memory locations | 128 |
| Ambient temperature | -10°C … +50°C |
| Protection class | II according to EN 60 730-1 |
| Type of protection | IP20 |
- Hãng sản xuất THEBEN của Đức.
- Bảo hành: 12 tháng.
