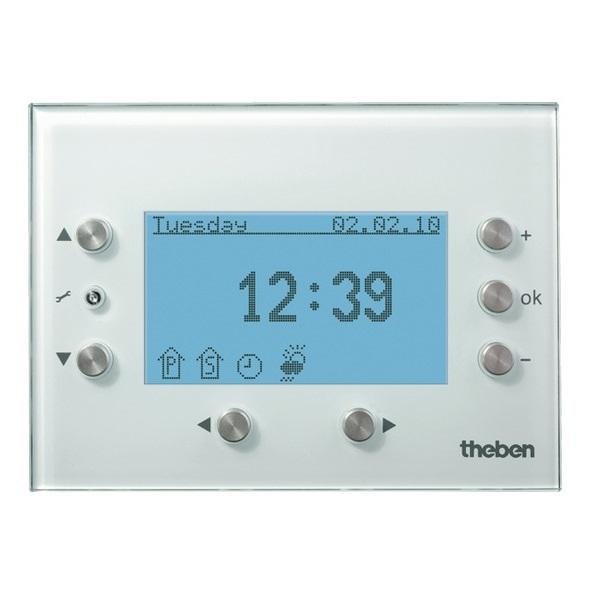

Living Comfort Control THEBEN LUXOR 426
- Central display and control unit for the LUXOR system.
- Time, weekday, date as well as central and automatic functions are displayed.
- Current weather conditions are displayed as well as min./max values.
- Display with back-lighting.
- Favourite sites can be selected from 6 pages.
- 8 channel time switch.
- Heating temperature reduction in combination with a RAMSES room thermostat.
- Manual switching on the device for central and group functions as well as manual and automatic mode.
- Daily and weekly programs.
- Astronomical program (dependent on sunrise and sunset).
- Freely programmable switching times as well as pre-programmed astronomical switching times.
- Offset setting ± 120 min.
- Easy location input via city list.
- Individual link of time switch channels with the outputs.
- Time controlled positioning of drives (LUXOR 408 S/409 S) as well as transmission of dimming values (LUXOR 405) as percentage values.
- Blocking times for suppression of brightness or twilight signals from sensor module (LUXOR 411).
- Astronomical blocking times for time shifts for moving shutters/awnings up and down.
- Automatic changeover summer/winter time.
- PIN code.
- Installation in flush-mounted socket.
Specifications
| Model | LUXOR 426 |
| Operating voltage | 230VAC |
| Frequency | 50 Hz |
| Installation type | Suface mounted |
| Stand-by consumption | ~1,1W |
| Number of channels | 8 |
| Connection for COM | EIB/KNX bus line type YCYM or Y(ST)Y or communication line J-Y(ST)Y/length up to 100 m |
| Number of memory locations | 350 |
| Program | Weekly program, Astronomical program |
| Ambient temperature | -5°C … +45°C |
| Protection class | II according to EN 60 335 |
| Type of protection | IP20 |
- Hãng sản xuất THEBEN của Đức.
- Bảo hành: 12 tháng.
