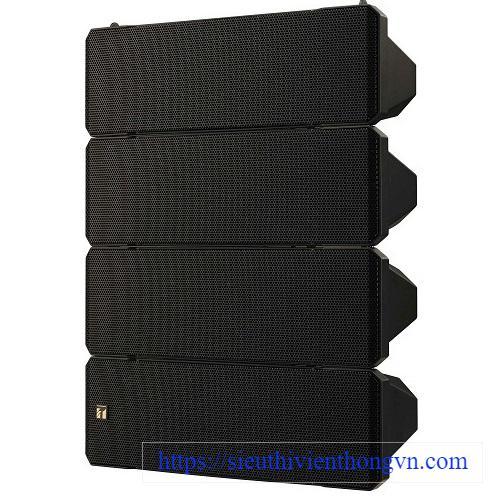

Loa hộp TOA HX-7B-WP
- The HX-7B-WP is a 2-way compact speaker system that permits both constant directivity control over a wide frequency range and changes in vertical directivity.
- Its adopted wave front control technology is ideal for reproducing clear sound in spaces with long reverberation times or high background noise.
- The speaker is designed to be installed under the eaves when used outdoors.
Specifications
| Model | HX-7B-WP |
| Enclosure | Sealed type |
| Power Handling Capacity | Continuous pink noise: 250W (IEC60268-5: 350W) Continuous program: 750W |
| Rated Impedance | 8Ω |
| Sensitivity | 100 dB (1W, 1m) |
| Frequency Response | 75 Hz - 20 kHz |
| Crossover Frequency | 1.7 kHz |
| Directivity Angle | Horizontal: 100º Vertical: Depending on directivity angle mode |
| Speaker Component | Low frequency: 13 cm cone-type x 8 High frequency: Wave front control horn with compression driver x 4 |
| Input Terminal | M4 screw terminal, distance between barriers: 9 mm |
| Water Protection | IPX4 (Install with every speaker module tilted downward from the horizontal.) |
| Finish | Enclosure: Polypropylene, black Punched net: Surface-treated steel plate, black, rust proof coating |
| Dimensions | 497 (W) × 664 (H) × 274 (D) mm |
| Weight | 30kg |
- Sản xuất tại Indonesia.
- Bảo hành: 12 tháng.
