Bộ trộn Stereo kỹ thuật số TOA M-633D

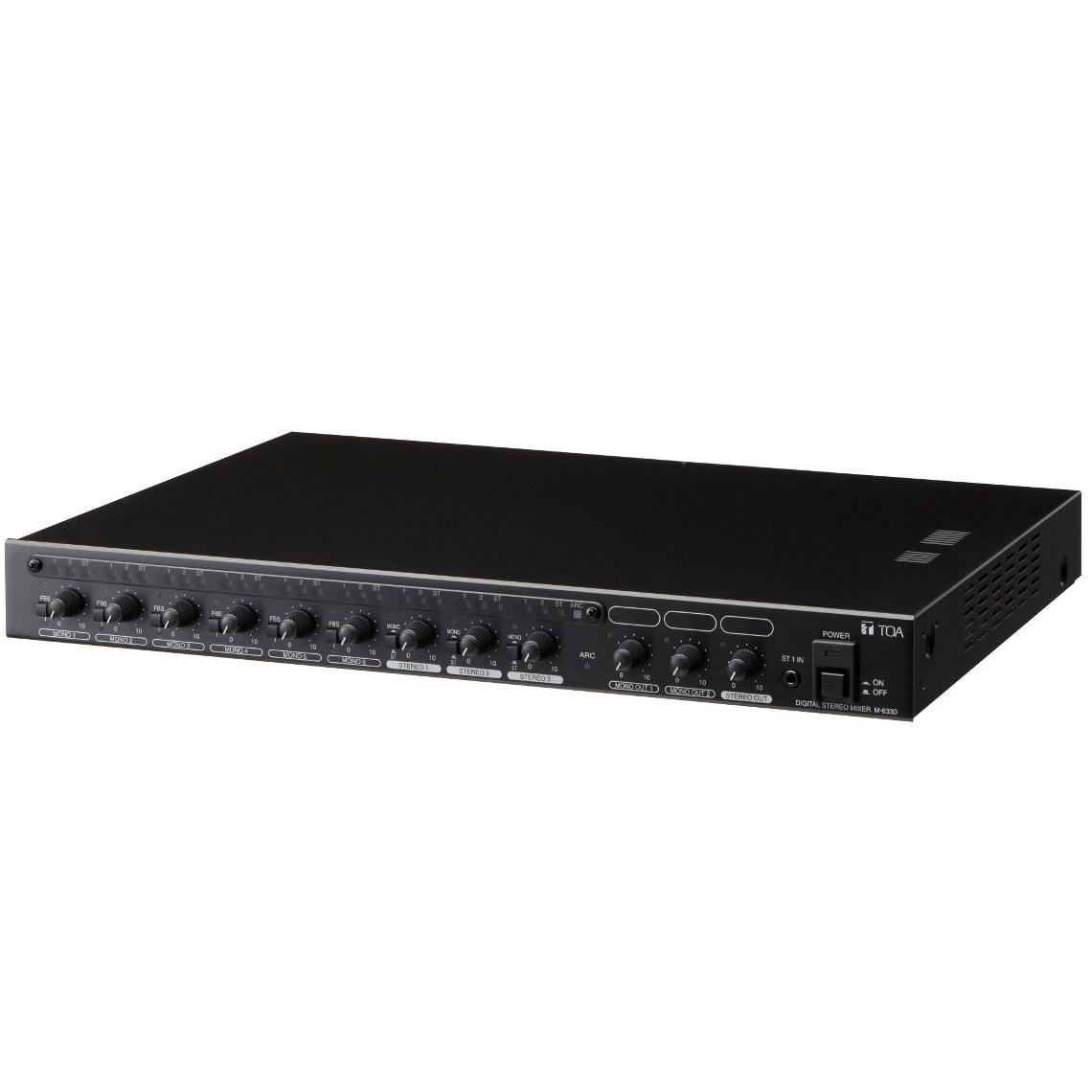

- The M-633D is a stereo mixer equipped with 12 input channels (6 monaural inputs and 3 stereo inputs) and 6 output channels (2 monaural outputs, 1 stereo output, and 1 stereo recording output).
- It has 2 monaural channel and 1 stereo channel bus lines, allowing each input signal to be assigned to each bus line individually.
- It features digital signal processing functions such as: Automatic Resonance Control function (ARC), Feedback Suppressor function (FBS), Automatic Clipguard function (ACG), and Automatic Mute function (AUTO MUTE).
- It performs advanced acoustic compensation by means of automatic processing without the use of an acoustic measuring instrument. It can be mounted in an EIA component rack (1U size).
Specifications
| Model | M-633D |
| Power Source | 220 - 240 V AC, 50/60 Hz |
| Power Consumption | 14 W |
| Frequency Response | 20 Hz - 20 kHz |
| Sampling Frequency | 48 kHz |
| Distortion | 0.03 % or less, 1 kHz, -10 dB input, 0 dB output (20 Hz - 20 kHz BPF) |
| Bus Line | Monaural channel x 2, Stereo channel x 1 |
| AD Converter | 24 bits |
| DA Converter | 24 bits |
| Automatic Resonance Control Function | 3 output channels (each monaural output channel, stereo output L, R), independent settings for each channel, automatic creation of EQ curves (for sound field compensation) ARC measurement start switch x 1, Function ON/OFF check indicator x 1 |
| Feedback Suppression Function | 6 channels (each monaural input channel), independent settings for each channel Function ON/OFF switch x 6, Function ON/OFF check indicator x 6 |
| Automatic Clipguard Function | 6 channels (each monaural input channel), independent settings for each channel |
| Automatic Mute Function | Function ON/OFF switch x 1 |
| Finish | Panel: Aluminum, black, hairline Case: Precoated steel sheet, black, 30% gloss |
| Dimensions | 420 (W) × 44 (H) × 341.3 (D) mm |
| Weight | 4kg |
- Sản xuất tại Nhật Bản.
- Bảo hành: 12 tháng.
