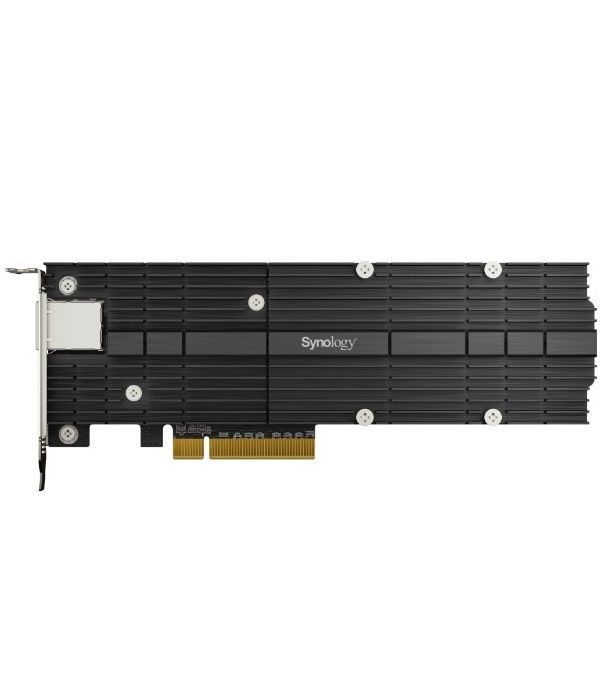

M.2 SSD & 10GbE Combo Adapter SYNOLOGY E10M20-T1
- Synology E10M20-T1 is a combo adapter card that incorporates both M.2 SSD and 10GbE connectivity, providing an effective solution to simultaneously boost I/O performance and networking bandwidth.
- Upgrade Your Synology System: Immediately Boost I/O performance and networking bandwidth simultaneously.
- 10GbE Ready: Single 10GBASE-T port capable of autonegotiating between 10/5/2.5/1Gbps and 100Mbps.
- NVMe SSD Enabled: Dual M.2 22110/2280 NVMe SSD slots for cache acceleration without occupying storage drive bays.
- Reach Optimal Caching Performance: Supports Synology SNV3000 series NVMe SSD with superior performance and reliability.
Đặc tính kỹ thuật
| Hardware | |
| Host Bus Interface | PCIe 3.0 x8 |
| Bracket Height | Low-profile and full-height |
| Size (Height x Width x Depth) | 71.75 mm x 200.55 mm x 17.7 mm |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Storage Temperature | -20°C to 60°C (-5°F to 140°F) |
| Relative Humidity | 5% to 95% RH |
| Storage | |
| Storage Interface | NVMe |
| Supported Form Factor | M.2 22110/2280 |
| Connector Type and Quantity | M-key, 2 slots |
| Network | |
| IEEE Specification Compliance | • IEEE 802.3an 10GBASE-T 10Gbps Ethernet • IEEE 802.3bz NBASE-T 5/2.5Gbps Ethernet • IEEE 802.3ab 1000BASE-T Gigabit Ethernet • IEEE 802.3u 100BASE-Tx Fast Ethernet • IEEE 802.3x Flow Control |
| Connector | RJ45 Copper |
| Data Transfer Rates | 10/5/2.5/1Gbps and 100Mbps |
| Network Operation Mode | Full Duplex |
| Supported Features | • 9 KB Jumbo Frame • TCP/UDP/IP Checksum Offloading • Auto-negotiation between 100Mb/s, 1Gb/s, 2.5Gb/s, 5Gb/s, and 10Gb/s |
- Bảo hành: 60 tháng.
