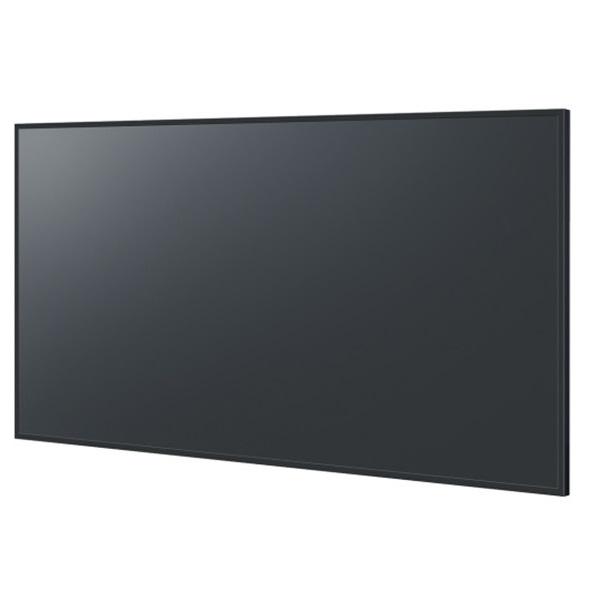

Màn hình D-LED 43 inch PANASONIC TH-43EQ1
- Màn hình chuyên dụng 43 inch.
- Tỉ lệ: 16 : 9.
- Loại màn hình: VA Panel/ D-LED.
- Độ phân giải: 4K (3840 x 2160).
- Độ sáng: 350 cd/m².
- Độ tương phản: 4000 : 1.
- Góc nhìn ngang/dọc: 178°.
- Tuổi thọ tấm nền: 50.000 giờ.
- Cổng kết nối: HDMI x 2, RGB, DVI-D, Video, Audio, IR In/ Out, USB.
- Điều khiển: D-sub 9 pin, RS-232C, LAN.
- Loa: 20W.
- Chế độ lắp dọc (Potrait mode).
- Hoạt động: 18/7.
- Xem trực tiếp từ USB (hình/video).
- Kích thước: 969 x 560 x 61 mm.
- Trọng lượng: 9 kg.
Đặc tính kỹ thuật
| Model | TH-43EQ1 |
| Screen size (diagonal) (inch) | 43-inch |
| Screen size (diagonal) (mm) | 1079 mm |
| Aspect Ratio | 16:09 |
| Panel Type | VA Panel/D-LED |
| Effective display area (W x H) (mm) | 941 x 529 mm |
| Effective display area (W x H) (inch) | 37.0 x 20.8 inch |
| Resolution | 3840 x 2160 |
| Brightness (typ.) | 350 cd/m² |
| Contrast Ratio | 4000:01:00 |
| Response Time | 8 ms (G to G) |
| Terminals | HDMI In | HDMI TYPE-A Connector x 2 (HDCP2.2 supported) |
| Terminals | DVI-D IN/AUDIO IN (L/R) | DVI-D 24-pin x 1, DVI Revision 1.0 Compatible (HDCP 1.1 supported) / Stereo Mini Jack (M3) x 1 (Shared with Video/PC In) |
| Terminals | PC IN/AUDIO IN (L/R) | Mini D-sub 15-pin x 1 (Compatible with DDC 2B) / Stereo Mini Jack (M3) x 1 (Shared with Video/DVI-D In) |
| Terminals | USB | USB Connector (TYPE A) x 1, DC 5 V/2 A (USB 3.0 supported) |
| Terminals | Serial | D-sub 9-pin x 1 (Input), RS-232C Compatible |
| Terminals | LAN | RJ45 x 1, 10BASE-T/100BASE-TX/1000BASE-T, Compatible with PJLink™ |
| Terminals | IR In/Out | Stereo Mini Jack (M3) x 1 / x 1 |
| Built-in Speaker | 20 W [10 W + 10 W] |
| Power Requirements | 110-127 V AC, 50/60 Hz, 220-240 V AC, 50/60 Hz |
| Power Consumption | 162 W |
| Power Off Condition | Approx. 0.3 W |
| Standby Condition | Approx. 0.5 W |
| Dimensions (W x H x D) (mm) | 969 x 560 x 61 mm |
| Dimensions (W x H x D) (inch) | 38.2 x 22.1 x 2.4 inch |
| Bezel width (mm) | 11.9 mm (T/R/L),14.9 mm (B) |
| Bezel width (inch) | 0.5 inch (T/R/L),0.6 inch (B) |
| Weight (kg) | Approx.9 kg |
| Weight (lbs.) | 19.9 lbs. |
| Wall-hanging pitch (mm) | 200 x 200 mm VESA Compliant |
| Wall-hanging pitch (inch) | 7.9 x 7.9 inch VESA Compliant |
| Orientation | Landscape/Portrait |
| Tilting angle | 0-20 degrees forward/backward with landscape/portrait setting |
| Operating Environment | 0°C to 40°C (32°F to 104°F) / for up to 1400 m (4593 ft) altitude,0°C to 35°C (32°F to 95°F) / Altitude 1400-2800 m [4593 ft to 9186 ft] |
| Operating Time | 18 h/day |
| Terminals | Audio Out | Stereo Mini Jack (M3) x 1 / Variable Output (-∞ - 0 dB) (at 1 kHz 0 dB Input, 10 kΩ Loaded) |
| Viewing angle [(T/B)/(L/R)] | 178° / 178° (CR≧10) |
| Terminals | Video/AV In | 4-pole Mini Jack (M3) x 1 (Audio: Stereo Mini Jack (M3) x 1(Shared with DVI-D/PC In)) |
| Panel Surface Treatment | Anti-glare type (Haze 2%) |
- Bảo hành: 12 tháng.
