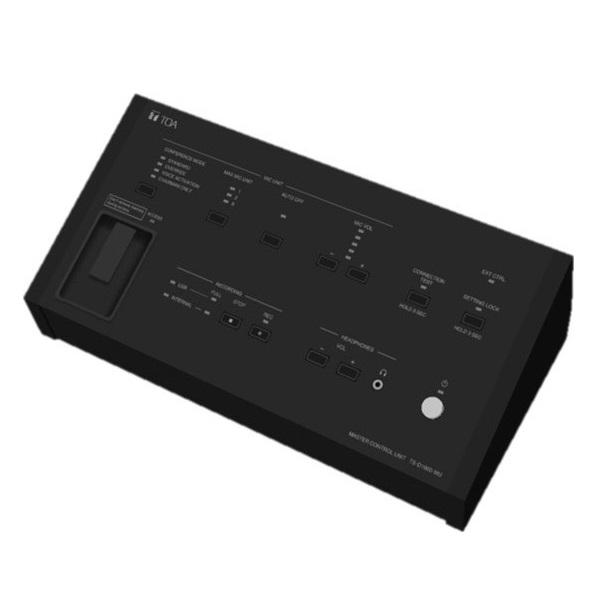

Master Control Unit TOA TS-D1000-MU
- Power Source: 100-240 VAC, 50/60Hz (use of supplied AC adapter).
- Power Consumption:60W or less.
- Audio Transmission System: Time division multiplexing (TDM), 10 channels 16 bit PCM, 32 kHz sampling frequency.
- MIC Input: -54 dB, 600Ω, unbalance, ø6.3 phone jack (2 pins).
- Chairman/Delegate Units Terminal: RJ45 connector x2.
- Dimensions (WxHxD): 361×100.4×184.2 mm.
- Weight: 2.2kg.
Specifications
| Model | TS-D1000-MU |
| Power Source | 100 – 240V AC, 50/60Hz (use of supplied AC adapter) |
| Power Consumption | 60W or less |
| Audio Transmission System | Time division multiplexing (TDM), 10 channels 16 bit PCM, 32 kHz sampling frequency |
| MIC Input | -54 dB, 600Ω, unbalance, ø6.3 phone jack (2 pins) |
| Output | LINE: -10dB, 10kΩ, unbalance, ø6.3 phone jack (2P) REC: -10dB, 10kΩ, unbalance, RCA pin jack, monaural HEADPHONE: ø3.5 mini jack, monaura |
| EQ Insert Input / Output Terminal | -10dB, 10kΩ, unbalance, RCA pin jack |
| Video Conference System Input/ Output Terminal | -10dB, 10kΩ, unbalance, RCA pin jack |
| No. of Connectable Chairman / Delegate Units | 32 units |
| No. of Connectable Sub Control Units | 5 units |
| Maximum Cable Distance | 50m (between this unit and Chairman/Delegate unit at the end of daisy chain) 1m (between Master control unit and sub control units) (Use the cable supplied with sub control unit.) |
| Maximum No. of Open Microphone | 2 chairman units, 8 delegate units |
| Chairman/Delegate Units Terminal | RJ45 connector x2 |
| Sub Control Units Terminal | RJ45 connector |
| LED Indicator | Power indicator, Conference mode indicator, No. of open microphones indicators, Microphone auto off indicator, Monitor speaker of conference units volume indicators, Connection test indicator, External control indicator, Setting lock indicator, Recording status indicator, USB access status indicator, Internal memory status indicator, USB memory status indicator, Remaining internal memory capacity warning indicator, Remaining USB memory capacity warning indicator, LINK/ACT indicator, 10M/100M indicator |
| Function Key | No of open microphones selector key: 1/2/8 Microphone auto off setting key: ON/ OFF Conference mode selector key: Standard/ Override/ Voice activation/ Chairman Only Setting lock key: ON/OFF Monitor speaker of conference units volume setting key: -,+ |
| Operation Key | Connection test, Rec start, Rec stop |
| Recording Parts | USB-A |
| Recording Function | Recordings can be made to a USB memory device*3 or the internal memory. Recording format: MP3 (MPEG-1 Audio Layer-3), monaural Sampling frequency: 32 kHz, Bit rate: 128 kbps |
| Network I/F | 10BASE-T/100BASE-TX (Automatic-Negotiation) |
| Network Protocol | TCP, HTTP, DHCP, ARP (APIPA), UDP (mDNS) |
| Network Connector | RJ45 connector |
| Operating Temperature | 0°C to +40°C |
| Operating Humidity | 90% RH or less (no condensation) |
| Finish | Panel: Surface-treated steel plate, black, 30% gloss, paint |
| Dimensions | 361 (W) × 100.4 (H) × 184.2 (D) mm |
| Weight | 2.2kg |
| Accessory | AC adapter (Cord length: 1.8m DC cord, and 2m detachable AC cord) × 1 |
| Option | Rack mounting bracket: MB-TS920 |
- Sản xuất tại Việt Nam.
- Bảo hành: 12 tháng.
