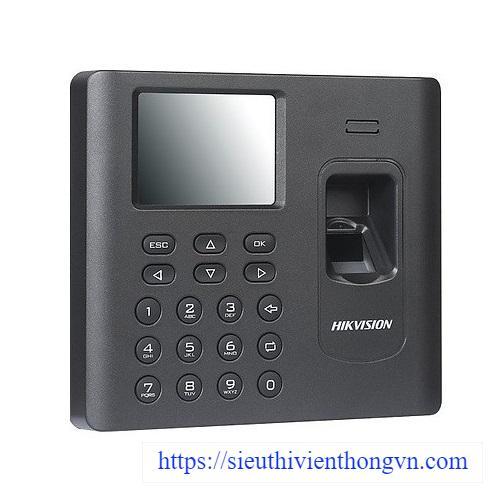

Máy chấm công vân tay HIKVISION DS-K1A802EF-1 (SH-K2A802EF-1)
- Máy chấm công vân tay màn hình LCD, tích hợp module đọc thẻ EM.
- Lưu trữ 800 thẻ, 800 vân tay và 50,000 sự kiện chấm công.
- Hỗ trợ tính năng chấm công, tạo báo cáo tự động, module vân tay quang học.
- Giao tiếp Uplink: TCP/IP.
Thông số kỹ thuật
| System Parameters | |
| Fingerprint Recognition Duration | < 1s |
| Operation System | Linux |
| Storage | 800 cards, 50,000 events, 150,000 attendance records |
| FRR (False Rejection Rate) | ≤0.01% |
| Card Reading Distance | 1 ~ 5cm |
| iVMS-4200 | Support |
| FAR (False Accept Rate) | ≤0.001% |
| Fingerprint Comparing Mode | 1:1 and 1:N, N=3000 |
| Card Reading Mode | Supports EM Card, Including Cards with Special Shapes; Supports Reading Card in Metal Environment |
| Card Reading Response Duration | < 1 s |
| Fingerprint Recognizer | Optical Fingerprint Recognizer Module |
| Fingerprint Capacity | 800 |
| Device Interfaces | |
| Transmission Rate | LAN: 10/100 Mbps Self-adaptive |
| USB Interface | USB2.0, Type A |
| General | |
| LCD Screen | 2.8-inch 320 x 240 LCD-TFT Display Screen |
| Key Board | Physical Keys (No Back Light) |
| Power Supply | 12 VDC/1 A |
| Audio | 1 Buzzer and 1 Loudspeaker |
| Appearance Color | Black (Included), Gold (Optional), Silver (Optional), White (Optional) |
| Installation | Surface Mounting, Metal Door Mounting, Desk Stand |
| Application Situation | Indoor |
| Working Humidity | 10% to 90% (Non-Condensing) |
| Working Temperature | -10° C to 55° C (14° F to 131° F) |
| Dimensions (L×W×H) | 140mm × 155mm × 30mm (5.51' × 6.01' × 1.18') |
- Bảo hành: 12 tháng.
