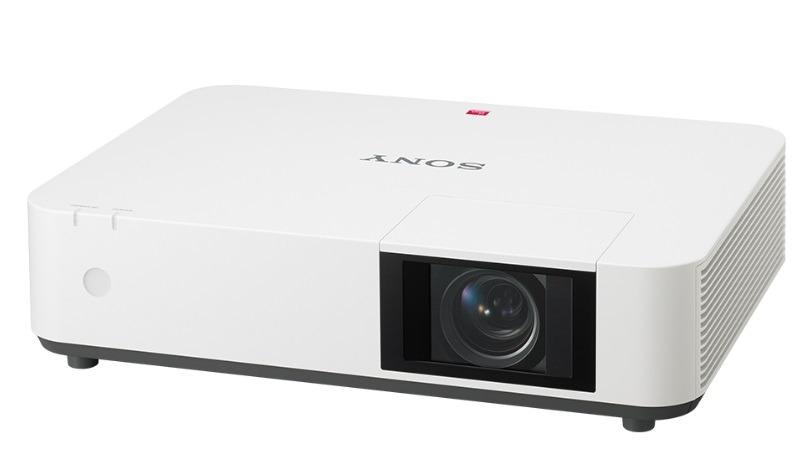

Máy chiếu SONY VPL-PWZ11
- Cường độ sáng: 5000 Ansi Lumens.
- Công nghệ trình chiếu: 3 LCD system.
- Nguồn sáng: Laser diode.
- Độ phân giải máy chiếu: WXGA (1280 x 800).
- Tuổi thọ bóng đèn: 20.000 giờ.
- Very high image quality with Sony's advanced BrightEra 3LCD projection engine and Z-Phosphor laser light source: The Z-Phosphor laser light source is coupled with Sony's acclaimed BrightEra 3LCD projection engine to ensure high 5000 lumen image brightness with vivid, natural colour reproduction.
- Crisp, detail-packed WXGA resolution images: See fine detail in PC presentations, videos or multimedia signage with WXGA (1280 x 800) 16:10 resolution.
- Up to 20,000 hours operation with virtually no maintenance.
- Save time with every presentation.
- Supports HDBaseT.
- Slim, attractive blend-in design.
- Simple set-up with friendly new Installation menu.
- Constant Bright maintains the same brightness throughout the 20,000 hours (at light output mode 'Middle') hours recommended life span.
- Advanced picture refinement technologies.
- Hassle-free automatic filter cleaning.
- Energy saving features.
- 360° free-angle installation capability: Enjoy greater installation flexibility: position the projector freely at any angle – or its side or even upside down.
Đặc tính kỹ thuật
| Display system | |
| Display system | 3 LCD system |
| Display device | |
| Size of effective display area | 0.76” (19.3 mm) x 3 BrightEra LCD Panel, Aspect ratio: 16:10 |
| Number of pixels | 3,072,000 (1280 x 800 x 3) pixels |
| Projection lens | |
| Focus | Manual |
| Zoom - Powered/Manual | Manual |
| Zoom - Ratio | Approx. x 1.45 |
| Throw ratio | 1.28:1 to 1.88:1 |
| Lens shift - Powered/Manual | Manual |
| Lens shift - Range Vertical | +20% to +55% |
| Lens shift - Range Horizontal | +/- 10% |
| Light source | |
| Type | Laser diode |
| Filter cleaning/replacement cycle (Max.) | |
| Filter cleaning/replacement cycle (Max.) | 20,000 H (service maintenance) |
| Screen size | |
| Screen size | 40' to 300' (1.02 m to 7.62 m) |
| Light output | |
| Mode: Standard | 5,000 lm |
| Color light output | |
| Mode: Standard | 5,000 lm |
| Contrast ratio (full white/full black) | |
| Contrast ratio (full white / full black) | ∞ :１ |
| Speaker | |
| Speaker | 16 W (monaural) |
| Displayable scanning frequency | |
| Horizontal | 15 kHz to 92 kHz |
| Vertical | 48 Hz to 92 Hz |
| Display resolution | |
| Computer signal input | Maximum display resolution: 1920 x 1200 dots *2 |
| Video signal input | NTSC, PAL, SECAM, 480/60p, 576/50i, 720/60p, 720/50p, 1080/60i, 1080/50i The following items are available for HDMI input only; 1080/60p, 1080/50p, 1080/24p |
| Color System | |
| Color System | NTSC3.58, PAL, SECAM, NTSC4.43, PAL-M, PAL-N, PAL60 |
| Keystone correction (Max.) | |
| Horizontal | +/- 30 degrees |
| Vertical | +/- 20 degrees |
| INPUT OUTPUT (Computer/Video/Control) | |
| INPUT A | RGB / Y PB PR input connector:Mini D-sub 15 pin (female) Audio input connector: Stereo mini jack |
| INPUT B | HDMI input connector: HDMI 19-pin, HDCP support Audio input connector: HDMI audio support |
| INPUT C | HDMI input connector: HDMI 19-pin, HDCP support Audio input connector: HDMI audio support |
| INPUT D | HDBaseT interface connector: RJ45, 4 play (Video, Audio, LAN, Control) |
| VIDEO IN | Video input connector: BNC Audio input connector: Shared with INPUT A |
| OUTPUT | Audio output connector: Stereo mini jack |
| REMOTE | D-sub 9-pin (male) / RS232C |
| LAN | RJ45, 100BASE-TX (Shared with INPUT D) |
| USB | TYPE-A |
| USB | TYPE-B |
| Acoustic Noise | |
| Lamp Mode: Standar/Middle/Low | 36 dB/28 dB/25 dB |
| Operating temperature/ Operating humidity | |
| Operating temperature/ Operating humidity | 0°to 40°C (32°F to 104°F) / 20 % to 80 % (no condensation) |
| Dimensions (W x H x D) | |
| Dimensions (W x H x D) (without protrusions) | 510 x 113 x 354.6 mm (20 3/32 x 4 7/16 x 13 31/32 inches) |
- Bảo hành 2 năm cho máy, 1000 giờ hay 12 tháng cho bóng đèn chiếu (tùy theo điều kiện nào đến trước).
