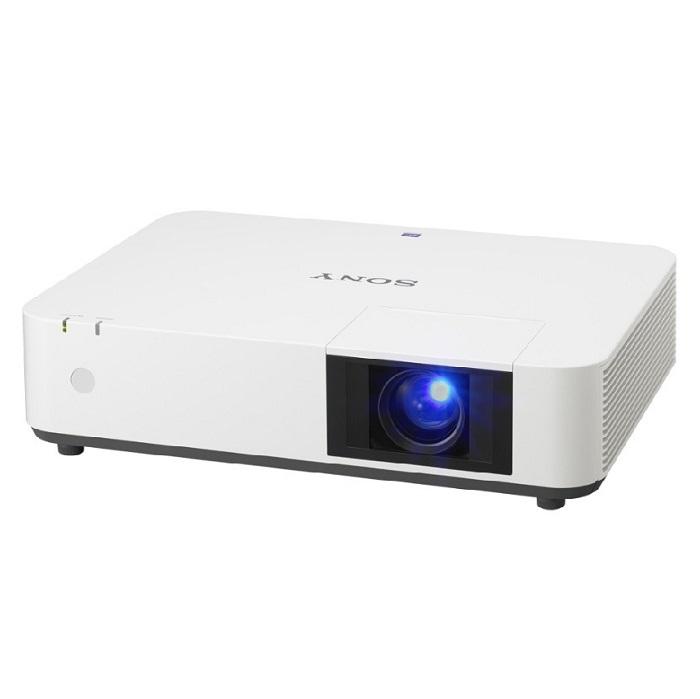

Máy chiếu Laser SONY VPL-PXZ11
- Cường độ sáng: 5.000 Ansi Lumens.
- Công nghệ trình chiếu: 3 LCD system.
- Nguồn sáng Laser diode.
- Tuổi thọ bóng đèn: 20.000 giờ.
- Độ tương phản: ∞:1.
- Khả năng trình chiếu: Từ 40inch tới 300inch (1.02m - 7.62m).
- Đầu vào: 1xVGA, 2xHDMI, 2xStereo mini Jack (1-In,1-Out), 1xComposite, 1xRJ45, 1xHDBT, 1xRS232C.
- Công nghê BrightEra™ giúp tăng cường ánh sáng.
Đặc tính kỹ thuật
| Display system | |
| Display system | 3 LCD system |
| Display device | |
| Size of effective display area | 0.79” (20.1 mm) x 3 BrightEra LCD Panel, Aspect ratio: 4:3 |
| Number of pixels | 2,359,296 (1024 x 768 x 3) pixels |
| Projection lens | |
| Focus | Manual |
| Zoom - Powered/Manual | Manual |
| Zoom - Ratio | Approx. x 1.45 |
| Throw ratio | 1.28:1 to 1.88:1 |
| Lens shift - Powered/Manual | Manual |
| Lens shift - Range Vertical | Lens shift - Range Vertical |
| Lens shift - Range Horizontal | +/- 10% |
| Light source | |
| Type | Laser diode |
| Filter cleaning/replacement cycle (Max.) | |
| Filter cleaning/replacement cycle (Max.) | 20,000 H (service maintenance) |
| Screen size | |
| Screen size | 40inch to 300inch (1.02 m to 7.62 m) |
| Light output | |
| Mode: Standard | 5,000 lm |
| Color light output | |
| Mode: Standard | 5,000 lm |
| Contrast ratio (full white / full black) *1 | |
| Contrast ratio (full white / full black) | ∞ :１ |
| Speaker | |
| Speaker | 16 W (monaural) |
| Displayable scanning frequency | |
| Horizontal | 15 kHz to 92 kHz |
| Vertical | 48 Hz to 92 Hz |
| Display resolution | |
| Computer signal input | Maximum display resolution: 1920 x 1200 dots *2 |
| Video signal input | NTSC, PAL, SECAM, 480/60i, 576/50i, 480/60p, 576/50p, 720/60p, 720/50p, 1080/60i, 1080/50i, 1080/60p, 1080/50p, 1080/24p |
| Color System | |
| Color System | NTSC3.58, PAL, SECAM, NTSC4.43, PAL-M, PAL-N, PAL60 |
| Keystone correction (Max.) | |
| Horizontal | +/- 30 degrees |
| Vertical | +/- 20 degrees |
| Input/Output (Computer/Video/Control) | |
| Input A | RGB / Y PB PR input connector:Mini D-sub 15 pin (female) Audio input connector: Stereo mini jack |
| Input B | HDMI input connector: HDMI 19-pin, HDCP support Audio input connector: HDMI audio support |
| Input C | HDMI input connector: HDMI 19-pin, HDCP support Audio input connector: HDMI audio support |
| Input D | HDBaseT interface connector: RJ45, 4 play (Video, Audio, LAN, Control) |
| Video In | Video input connector: BNC Audio input connector: Shared with INPUT A |
| Output | Audio output connector: Stereo mini jack |
| Remote | D-sub 9-pin (male) / RS232C |
| LAN | RJ45, 100BASE-TX (Shared with INPUT D) |
| USB | TYPE-A |
| USB | TYPE-B |
| Acoustic Noise | |
| Lamp Mode: Standard/Middle/Low | 36 dB/28 dB/25 dB |
| Dimensions (W x H x D) | |
| Dimensions (W x H x D) (without protrusions) | 510 x 113 x 354.6 mm (20 3/32 x 4 7/16 x 13 31/32 inches) |
- Bảo hành 2 năm cho máy, 1000 giờ hay 12 tháng cho bóng đèn chiếu (tùy theo điều kiện nào đến trước).
