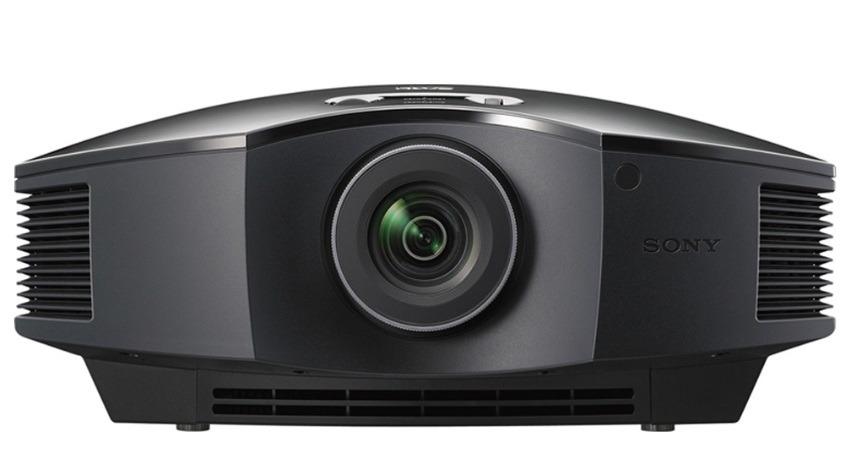

Máy chiếu SONY VPL-HW65ES
- Cường độ sáng: 1800 Ansi Lumens.
- Công nghệ trình chiếu: SXRD panel, projection system.
- Độ phân giải máy chiếu: WUXGA (1920x1200).
- Khả năng trình chiếu: Từ 40inch tới 300inch (1,016mm to 7,624mm).
- Tuổi thọ bóng đèn: Lên tới 6000 (H).
Đặc tính kỹ thuật
| Display System | |
| Display System | SXRD panel, projection system |
| Display device | |
| Size of effective display area | 0.61inch x 3 |
| Number of pixels | 6,220,800 (1920 x 1080 x 3) pixels |
| Projection lens | |
| Focus | Manual |
| Zoom | Manual (Approx. x1.6) |
| Lens shift | Manual, Vertical: +/- 71%, Horizontal: +/- 25% |
| Light source | |
| Light source | High-pressure mercury lamp, 215W type |
| Recommended lamp replacement time | |
| Recommended lamp replacement time | 6000 H (Lamp mode: Low) |
| Filter replacement cycle (Max.) | |
| Filter replacement cycle (Max.) | Same time as the lamp replacement is recommended |
| Screen size | |
| Screen size | 40inch to 300inch (1,016 mm to 7,624 mm) |
| Light output | |
| Light output | 1800 lm (Lamp mode: High) |
| Colour light output | |
| Colour light output | 1800 lm (Lamp mode: High) |
| Contrast ratio | |
| Contrast ratio | 120,000:1 (Dynamic Contrast) |
| Displayable scanning frequency | |
| Horizontal | 19 kHz to 72 kHz |
| Vertical | 48 Hz to 92 Hz |
| Display resolution | |
| Computer signal input | Maximum display resolution: 1920 x 1080 dots (HDMI Input only) |
| Video signal input | 480/60p, 576/50p, 720/60p, 720/50p, 1080/60i, 1080/50i The following items are available for HDMI input only. 1080/60p, 1080/50p, 1080/24p |
| OSD languages | |
| OSD languages | 17-languages (English, Dutch, French, Italian, German, Spanish, Portuguese, Russian, Swedish, Norwegian, Japanese, Simplified Chinese, Traditional Chinese, Korean, Thai, Arabic, Polish) |
| INPUT OUTPUT (Computer/Video/Control) | |
| HDMI1/HDMI2 | Digital (RGB/Y Pb/Cb Pr/Cr) |
| Trigger | Minijack, DC 12 V Max. 100 mA |
| Remote | RS-232C, D-sub 9-pin (female) |
| IR IN | Mini Jack |
| USB | DC 5V, Max. 500 mA |
| Acoustic noise | |
| Acoustic noise | 22 dB |
| Operating temperature/Operating humidity | |
| Operating temperature / Operating humidity | 5°C to 35°C (41°F to 95°F) / 35% to 85% (no condensation) |
| Dimensions (W x H x D) (without protrusions) | |
| Dimensions (W x H x D) (without protrusions) | 407.4 x 179.2 x 463.9 mm |
| Mass | |
| Mass | Approx. 9 kg / 20 lb |
- Bảo hành 2 năm cho máy, 1000 giờ hay 12 tháng cho bóng đèn chiếu (tùy theo điều kiện nào đến trước).
