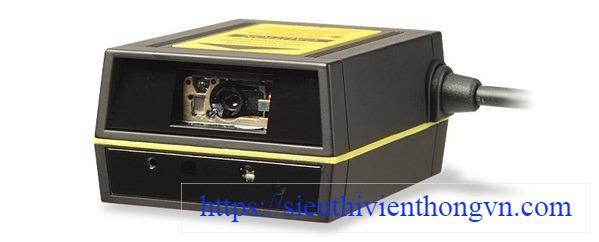

Máy đọc mã vạch Zebex Z-5152SR
- Công nghệ chụp ảnh, công nghệ cao.
- Đọc các mã vạch 1D và GS1 Databar.
- Chế độ quét: Tự động hoặc bấm nút.
- Giao tiếp: USB (RS232 & PS/2 option).
- Điểm nổi bật: Độ bền cao, kiểu dáng module, ứng dụng chủ yếu trong các dây chuyền sản xuất.
Đặc tính kỹ thuật
| Model | Z-5152SR |
| Aiming Element | 650 nm visible laser diode (VLD) |
| Illumination Element | 625 ±5 nm |
| Optical System | 752H x 480V pixels (wide VGA) |
| Field of View | 39.6° horizontal / 25.7° vertical |
| Focusing Distance | 20.3 cm / 8 inch |
| Sensitivity | 360° (omnidirectional rotational sensitivity) |
| Print Contrast | 25% @ UPC/EAN 100% |
| Indicator | Green LED |
| Programmable Operation | Power mode, beeper tone, focus control, image control |
| Image Format | BMP(*.bmp), TIFF(*.tif), JPEG(*.jpg) |
| System Interface | RS-232, USB1.1 |
| Dimension | 66.9 x 52.9 x 32.0 mm |
| Weight | 210 g |
| Cable | Standard 2M straight |
| Input Voltage | 5VDC±10% |
| Power Consumption | 1.4W |
| Operating Current | 280 mA typical |
| Light Level | Max. 100,000 Lux (fluorescence) |
- Sản xuất tại Đài Loan.
- Bảo hành: 12 tháng.
