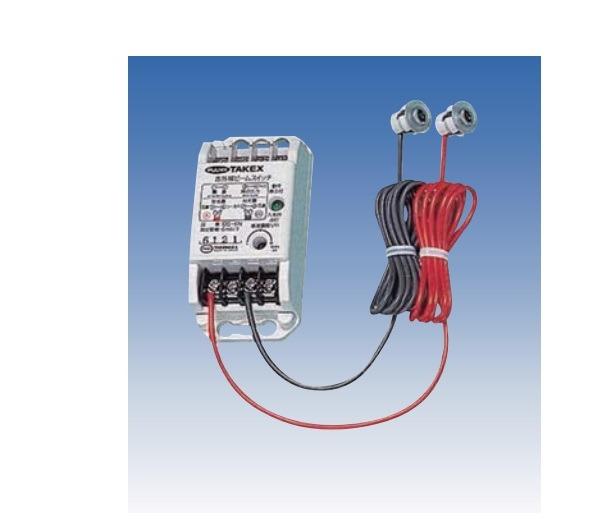

Miniature Beam Sensor TAKEX DS-6ND

- Miniature beam sensor for indoor 6m type, N.O.

- Protection distance: 20ft. (6m) or less.

Features

- Single beam;

- Miniaturized control;

- Built-in sensitivity control;

- Sensor code can be cut to length.

Specification

- Detection System: Near infrared pulsed beam interruption.

- Alarm Output:

   + Dry contact relay output: N.O;

   + Reset time: Detection time delay time (approx.1sec.);

   + 30V (AC/DC) 0.3A Max.

- Supply Voltage: 10 to 30VDC (non-polarity).

- Current Consumption: 50mA.

- Ambient Temperature: -25°C to +55°C (-13°F to 131°F).

- Mounting Position: Indoor, semi-outdoor.

- External Dimensions-WHD:

   + SENS: 15 dia. x 16 mm;

   + AMP: 45 x 94 x 29 mm (1.77 x 3.7 x 1.14 inch).

- Weight:

   + SENS: 100g (3.5oz) inc. cable;

   + AMP: 70g (2.5oz).

- Bảo hành: 12 tháng.
