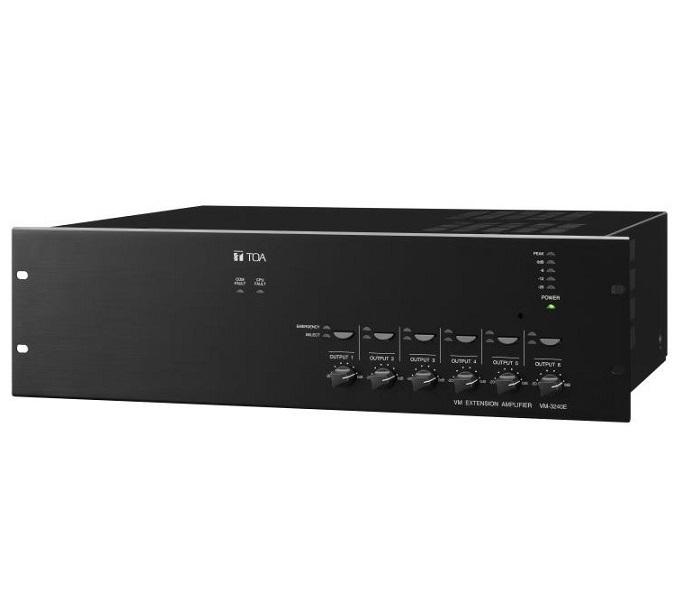

Power Source

230 VAC, 50/60 Hz

Power Consumption

600W (with rated output signal), 260W (according to EN60065)

Rated Output

240W

Frequency Response

50 Hz - 20 kHz, ±3 dB (at 1/3 rated output)

Distortion

0.7 % or less (at rated output, 1 kHz)

S/N Ratio

85 dB or more

Input

External amplifier input: 100 V line, removable terminal block (14 pins)

Output

Speaker output 1 - 2: Max. (240 W) per output

Speaker output 3 - 6: Max. (120 W) per output

Speaker output 1 - 6: Total within 240 W, removable terminal block (14 pins)

Allowable minimum load: 500 Ω (20 W) at 100 V line for speaker line failure detection

Direct output: Direct output from internal or external amplifier, removable terminal block (16 pins)

VM Link

Input: Connecting the VM-3240VA or VM-3360VA, RJ45 female connector

Output: Connecting the VM-3240E or VM-3360E, RJ45 female connector

Maximum distance: 800 m (874.89 yd)

Link cable: Category 5 Shielded Twisted-Pair straight cable (CAT5-STP)

EXT PA Link

Connecting the VP-2241, RJ45 female connector

Maximum distance: 5 m (16.4 ft)

Link cable: Category 5 Shielded Twisted-Pair straight cable (CAT5-STP)

General Control

Input 1 - 8: No-Voltage make contact input, open voltage: 24 VDC, short-circuit current: 2 mA or less, removable terminal block (14 pins)

Output 1 - 8: Isolated open collector output, withstand voltage: 30 VDC, operating current: 10 mA or less, removable terminal block (14 pins)

Emergency Control

Input 1 - 5: No-Voltage make contact input, open voltage: 24 VDC, short-circuit current: 2 mA or less, RJ45 female connector

Input 6: Isolated voltage input, Inactive: -24 V ±20 %, Active: +24 V ±20 %, RJ45 female connector

Status out: Relay contact output, withstand voltage: 40 VDC, operating current: 2 - 300 mA, RJ45 female connector

ATT Control

Relay contact 1-6, 125 VAC or 30 VDC, total under 5 A, removable terminal block (16 pins)

Power Input/Output

Power in: Connecting the VX-2000DS only (operating range: 20 - 40 VDC)

PS out: 28 VDC/18 A

M4 screw terminal, distance between barriers: 11 mm (0.43')

Output

24 VDC, Maximum feeding current 0.3 A

Ds Link

Connecting the VX-2000DS, RJ45 female connector

Maximum distance: 5 m (16.4 ft)

Link cable: Category 5 Shielded Twisted-Pair straight cable (CAT5-STP)

Finish

Panel: Aluminum, hairline, black

Case: Surface-treated steel plate, black, paint

Dimensions

482 x 132.6 x 407 mm

Weight

16.5 kg

Accessory

Power cable (2 m (6.56 ft)) …1, Link cable (3 m (9.84 ft)) …2, Plastic foot …4, Plastic foot mounting screw …4, Removable terminal plug (14 pins) …3, Removable terminal plug (16 pins) …1
