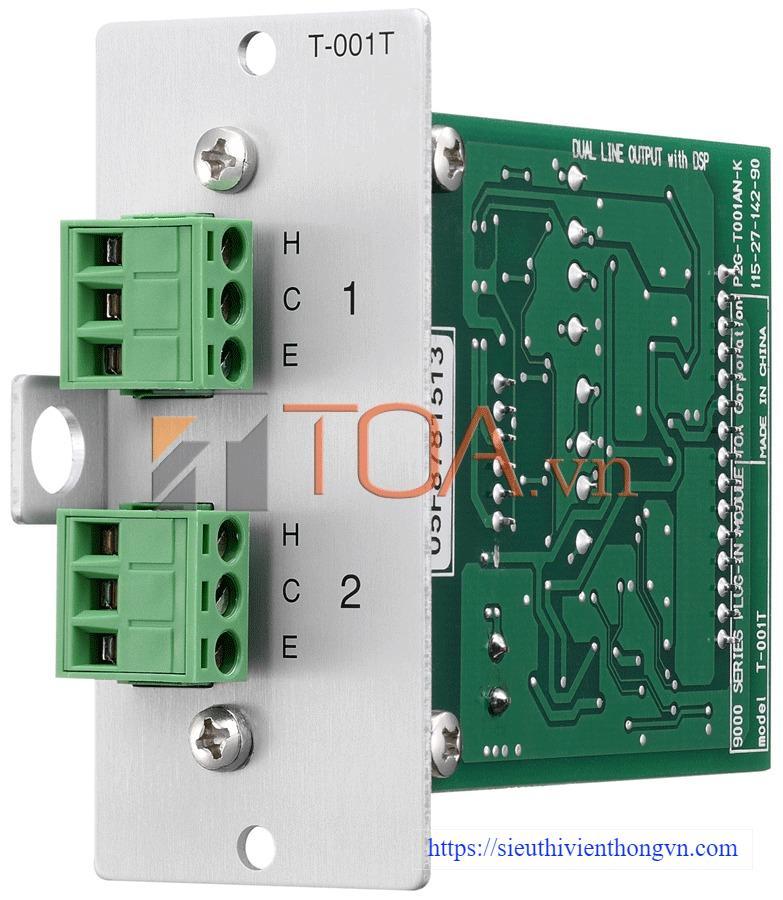

Module điều khiển dùng cho seri 9000 TOA T-001T
The T-001T is a plug-in module designed for use with the 9000 Series amplifiers and can provide two independent balanced outputs. It can drive load of 600 Ω up to +16 dB. It can process effect for TONE/ EQ/ COMPRESSOR to two outputs independently.
Specifications
| Model | T-001T |
| Power Source | +24 VDC, -24 VDC, +6 VDC |
| Current Consumption | 35 mA (at +24 V DC), 35 mA (at -24 V DC), 60 mA (at +6 V DC) |
| Output | 2 channels, max. +20 dB (at 10 kΩ load), 600 Ω, electronically-balanced, removable terminal block (3 pins) |
| Frequency Response | 20 Hz - 20 kHz, +1, -3 dB |
| Total Harmonic Distortion + N | 0.005 % (at 1 kHz, 20 Hz - 20 kHz BPF, 5 V output, 10 kΩ load) |
| S/N Ratio | Over 73 dB (at 20 Hz - 20 kHz BPF) |
| Residual Noise | Under -91 dB (at 20 Hz - 20 kHz BPF, VOL: -70 dB) |
| Cross Talk | Over 87 dB (at 20 kHz) |
| D/A Converter | 24 bit DAC |
| Sampling Frequency | 48 kHz |
| Parametric Equalizer | 10 bands, Frequency: 20 Hz - 20 kHz, 31 points, Variable range: ±12 dB, Q: 0.3 - 5 |
| Speaker Equalizer | 10 (setup software has 30 TOA speaker presets) |
| Compressor | Depth: 1 – 5 |
| Delay | 0 - 40 ms (1 ms step), maximum 40 ms (CH 1 + CH 2), mixer mode only |
| Dimensions | 35 (W) × 78 (H) × 91.5 (D) mm |
| Weight | 82g |
- Sản xuất tại Trung Quốc.
- Bảo hành: 12 tháng.
