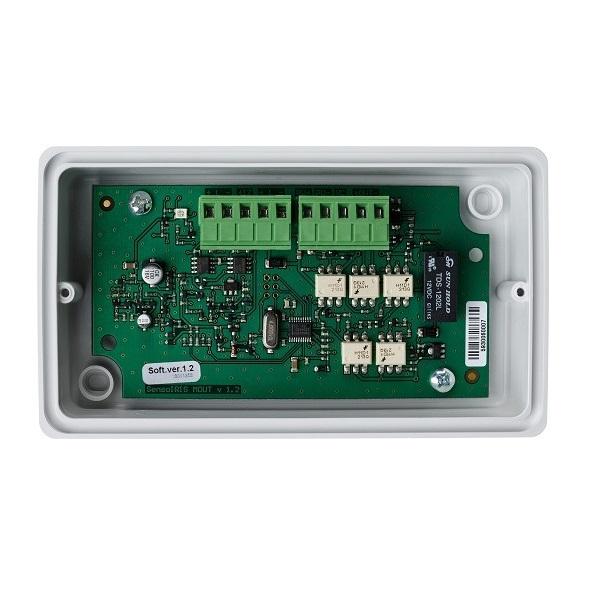

Module điều khiền TELETEK SensoIRIS MOUT
- SensoIRIS MOUT is an addressable monitored output module for connecting of conventional sounders. The module is designed for application in addressable fire alarm systems, supporting TTE communication protocol. SensoIRIS MOUT has a built-in isolator.
- The module monitors and transfers to control panel the status of the output – short circuit, interruption or missing of power supply in the circuit.
- SensoIRIS MOUT is powered on from the fire panel and can be controlled via the communication protocol.
- The module is mounted is a separate small plastic box suitable for wall mounting.
- Provides interface between a zone of conventional sirens and an addressable control panel IRIS or SIMPO.
- Loop powered.
- Built-in isolator.
- Placed in plastic box with transparent cover for easy inspection.
Đặc tính kỹ thuật
| Model | SensoMAG FRL-1 |
| Operating Voltage Range | 15 – 32VDC |
| Permissible voltage ripple | 3.0Vpp@27VDC |
| Output electrical characteristics (max.) | DC 28V/ 0.75A; AC 120V/ 0.5A |
| Max. current consumption in STAND-BY mode | 270μA@27VDC |
| Wire Gauge for terminals | 0.4mm² – 2.5mm² |
| Operating temperature | -10°C to +60°C |
| Protection | IP40 |
| Weight | ~230g |
- Bảo hành: 12 tháng.
