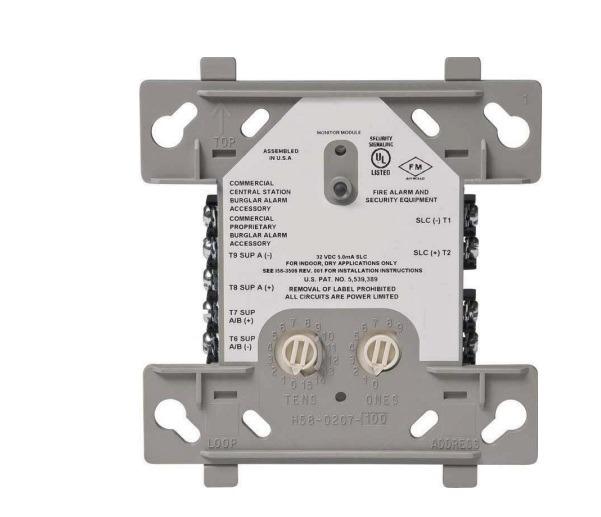

Module giám sát NOTIFIER FMM-1

- FMM-1 is a standard-sized module (typically mounts to a 4-inch [10.16 cm] square box) that supervises either a Style D (Class A) or Style B (Class B) circuit of dry-contact input devices.

Thông số kỹ thuật

- Nominal operating voltage: 15 to 32VDC.

- Maximum current draw: 5.0mA (LED on).

- Average operating current: 375μA (LED flashing), 1 communication every 5 seconds, 47k EOL.

- Maximum IDC wiring resistance: 1500 Ohms.

- Maximum IDC Voltage: 11 Volts.

- EOL resistance: 47K Ohms.

- Temperature range: 32°F to 120°F (0°C to 49°C).

- Humidity range: 10% to 93% noncondensing.

- Dimensions: 4.5-inch (11.43 cm) high x 4-inch (10.16 cm) wide x 1.25-inch (3.175 cm) deep. Mounts to a 4-inch (10.16 cm) square x 2.125-inch (5.398 cm) deep box.

- Bảo hành: 12 tháng.
