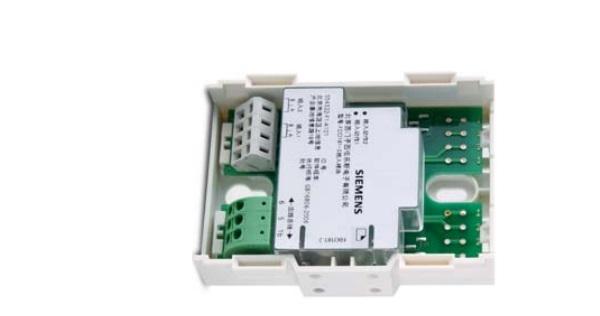

Module giám sát SIEMENS FDCI181-2
- 2 monitored digital input.
- Input lines are monitored for open line and short/open circuit (terminal resistors is mandatory).
- Microprocessor-controlled signal evaluation.
- Prevention of noise interference through intelligent analysis of input signals.
- LED display of input status.
- Automatic address setting, without encoder settings or Dip-switch.
- Power supply via FD18-BUS.
- Communication with controller via FD18-BUS(detection line).
- Directly used in dry areas, Applicable in dusty and humid areas when installed in FDCH221 housing.
- “Sticker Method” easy for commissioning.
Thông số kỹ thuật
| Model | FDCI181-2 |
| Operating voltage | 12 … 32 VDC |
| Operating current (Quiescent) | 0.33 mA |
| Activation current | 0.45 mA |
| Monitoring resistors | 3.3KΩ (1/4w)/680Ω (1/4w) |
| Operating temperature | 0 ... +42 °C |
| Storage temperature | -20 ... +75 °C |
| Humidity | ≤95 % |
| Communication protocol | FD18-BUS |
| Load factors | 3 |
| Connection terminals | 1.0 ... 1.5 mm2 |
| Color | - Housing: white, RAL 9010 - Cover: transparent |
| Protection category EN60529 / IEC529/ GB4208-93 | With housing FDCH221: IP65 |
| Approval (for Russian) | TR RF N123-FZ |
- Xuất xứ: Trung Quốc.
- Bảo hành: 12 tháng.
