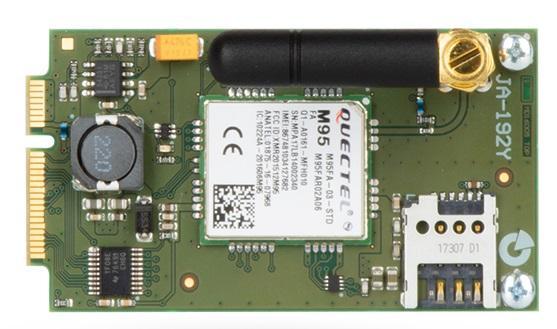

Module GSM JABLOTRON JA-192Y
-The GSM communicator module is designed for the JA-103K or JA-107K alarm control panel belonging to the JABLOTRON 100+ system.
-The control panel fitted with a JA-192Y communicates through a mobile network with a central monitoring station, allows remote control via the web and mobile applications and sends alarm SMSes and voice messages.
-It allows the system to be remotely set up using the F-Link settings program.
Đặc tính kỹ thuật
| Power supply | via the control panel bus 12 V (9 ... 15 V) |
| Average current consumption | about 5 mA (depends on the GSM strength) |
| Peak current consumption | 175 mA |
| Working range of the GSM module | 850/900/1800/1900 MHz |
| Dimensions | 70 x 37 x 25 mm |
| Classification | EN 50131-1 ed. 2+A1+A2, EN 50131-3, EN 50136-2, ANSI SIA DC-09 |
| Environment according to | EN 50131-1 II. indoor, general |
| Operation temperature range | -10 °C to +40 °C |
| It also meets the requirements of | EN 62368-1, ETSI EN 301 511, EN 50130-4 +A1, ETSI EN 301 489-1, ETSI EN 301 489-7, EN 55032, ETSI EN 301 419-1, EN 50581 |
-Xuất xứ tại Czech Rep, EU.
-Bảo hành: 12 tháng.
