Module kết nối đầu báo thường TELETEK SensoIRIS MC-Z
- SensoIRIS MC-Z is an addressable conventional zone module, designed for application in addressable fire alarm systems, supporting TTE communication protocol. The module monitors the state of connected conventional fire line and reports for its status to the control panel.
- SensoIRIS MC-Z is powered on from the fire panel and can be controlled via the communication protocol.

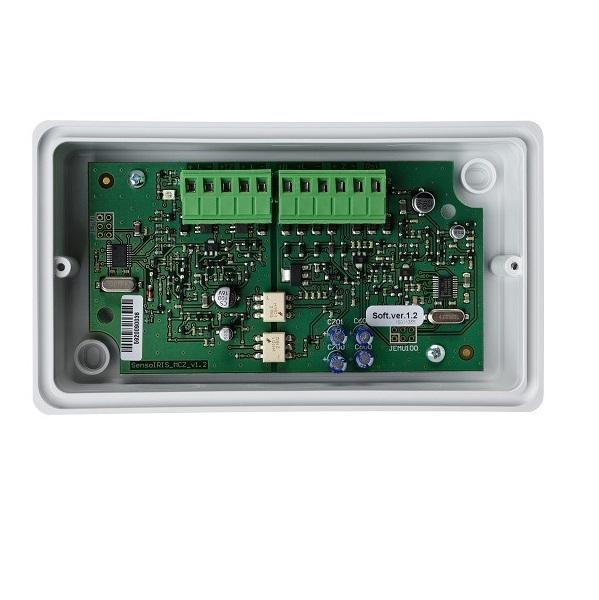

- The module is mounted is a separate small plastic box suitable for wall mounting, with transparent cover for visual inspection.
- Interface between a zone of conventional detectors and an addressables IRIS TTE loop expander.
- Max number of detectors in one zone – 32.
- Loop powered.
- Built in isolator.
- Placed in plastic box with transparent cover for easy inspection.
Đặc tính kỹ thuật
| Model | SensoIRIS MC-Z |
| Operating Voltage Range | 15 – 32VDC |
| Permissible voltage ripple | 3.0Vpp@27VDC |
| Max. Consumption with external power supply | 150μA@27VDC |
| Max. Current consumption, loop power supply | 5.5mA |
| Wire Gauge for terminals | 0.4mm2 – 2.0mm2 |
| Operating temperature | -10°C to +60°C |
| Protection | IP40 |
| Weight | ~230g |
- Bảo hành: 12 tháng.
