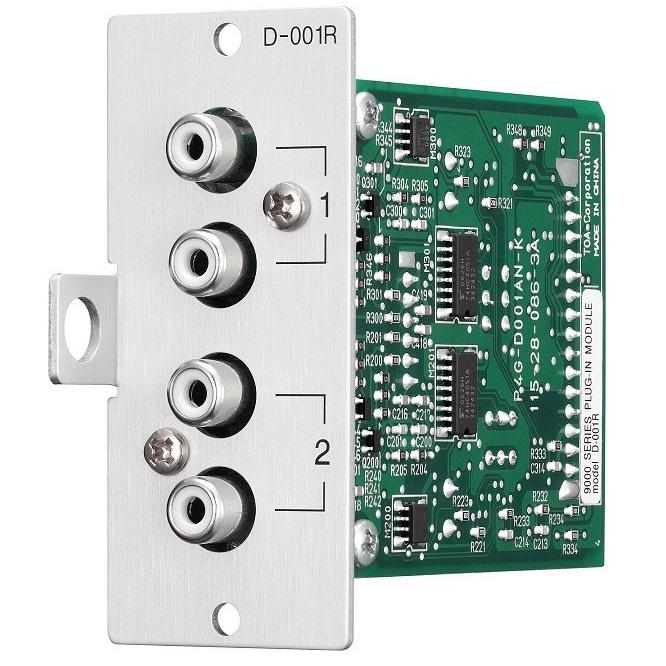

Mođun điều khiển TOA D-001R
The D-001R is a line input plug-in module designed for use with the 9000 Series amplifiers. It has 2-channel unbalanced inputs of RCA jacks. Input signals to both channels are mixed together. The D-001R can process effect for TONE/EQ/COMPRESSOR to two inputs independently.
Đặc tính kỹ thuật
| Power Source | +24VDC, -24VDC, +6VDC |
| Current Consumption | 20 mA (at +24VDC), 20 mA (at -24VDC), 60 mA (at +6 VDC) |
| Input | 2 channels, 2RCA/ch mixed, 10 kΩ, unbalanced, RCA pin jack |
| Input Sensitivity | -60, -54, -48, -42, -36, -30, -24, -18, -10 dB* (selectable) |
| Frequency Response | 20 Hz - 20 kHz, +1, -3 dB |
| Total Harmonic Distortion + N | 0.008 % (at 1 kHz, 20 Hz - 20 kHz BPF, Input sensitivity: -10 dB) |
| S/N Ratio | Over 70 dB (at 20 Hz - 20 kHz BPF, Input short, Input sensitivity: -10 dB) |
| Cross Talk | Over 75 dB (at 20 kHz, Input sensitivity: -10 dB) |
| A/D Converter | 24 bit ADC |
| Sampling Frequency | 48 kHz |
| Tone Control | Bass: ±12 dB (at 100 Hz) |
| Treble: %%p12 dB (at 10 kHz) | |
| Parametric Equalizer | 10 bands, Frequency: 20 Hz - 20 kHz, 31 points, Variable range: ±12 dB, |
| Q: 0.3 - 5 | |
| High-pass Filter | -12 dB/oct, Variable frequency range: 20 Hz - 20 kHz, 31 points |
| Low-pass Filter | -12 dB/oct, Variable frequency range: 20 Hz - 20 kHz, 31 points |
| Compressor | Depth: 1 - 5 |
| Operating Temperature | -10 ℃ to +40 ℃ (14 ゜F to 104 ゜F) |
| Finish | Panel: Aluminum, hair-line |
| Dimensions | 35 (W) x 78 (H) x 91.5 (D) mm (1.38' x 3.07' x 3.6') |
| Weight | 82 g (0.18 lb) |
| Accessory | Module mounting screw …2 |
-Sản xuất tại Trung Quốc.
-Bảo hành: 12 tháng.
