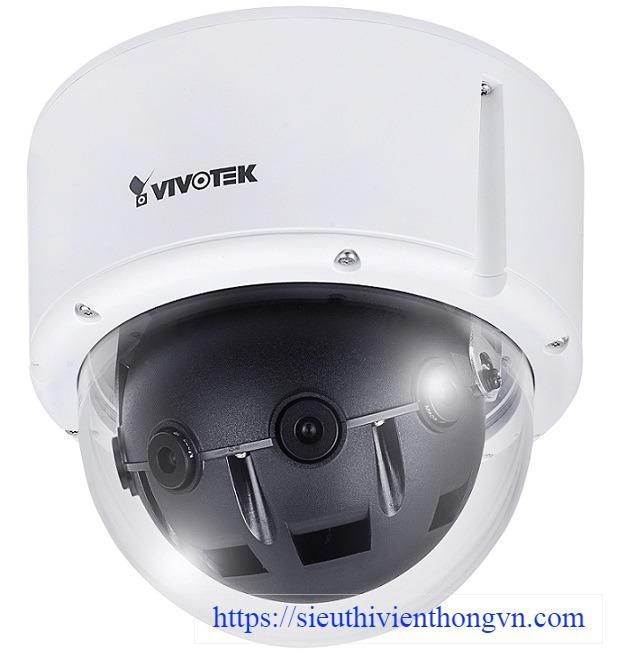

Camera IP Dome 12.0 Megapixel Vivotek MS8392-EV
-Cảm biến hình ảnh: 1/2.8 inch CMOS.
-Chuẩn nén hình ảnh: H.264 và MJPEG.
-Độ phân giải: 12 Megapixel.
-Góc quan sát: 180º (Panaramic View).
-Hỗ trợ khe cắm thẻ nhớ microSD/SDHC/SDXC.
-Ống kính: 6mm (fixed-focal).
-Chức năng camera quan sát ngày và đêm (IR-CUT).
-Chức năng chống ngược sáng WDR Enhanced.
-Hỗ trợ Smart Stream.
-Cổng kết nối: RJ45.
-Hỗ trợ hệ điều hành: Microsoft Windows 8/7/Vista/XP/2000.
-Hỗ trợ trình duyệt Web: Mozilla Firefox 7~43 (streaming only), Internet Explorer 7/8/9/10/11.
-Tiêu chuẩn chống thấm nước: IP66 (thích hợp sử dụng trong nhà và ngoài trời).
-Tiêu chuẩn chống va đập: IK10.
-Nguồn điện: 24VAC.
-Chức năng cấp nguồn qua mạng PoE (Power over Ethernet).
-Trọng lượng: 1242.2g.
Đặc tính kỹ thuật
| Model | MS8392-EV |
| System Information | |
| CPU | Multimedia SoC (System-on-Chip) |
| Flash | 128MB |
| RAM | 1GB |
| Camera Features | |
| Image Sensor | 1/2.8 inch Progressive CMOS |
| Maximum Resolution | 7552 x 1416 |
| Lens Type | Fixed-focal |
| Focal Length | f = 6 mm |
| Aperture | F1.6 |
| Field of View | 180° (Horizontal) |
| 34º (Vertical) | |
| Shutter Time | 1/5 sec. to 1/32,000 sec. |
| WDR Technology | WDR Enhanced |
| Day/Night | Removable IR-cut filter for day & night function |
| Minimum Illumination | 0.23 Lux @ F1.6 (Color) |
| < 0.01 Lux @ F1.6 (B/W) | |
| Tilt Range | 15° ~ 90° |
| Pan/Tilt/Zoom Functionalities | ePTZ: 48x digital zoom (4x on IE plug-in,12x built in) |
| On-board Storage | Slot type: MicroSD/SDHC/SDXC card slot Seamless Recording |
| Video | |
| Compression | H.264 & MJPEG |
| Maximum Frame Rate | 7 fps @ 7552 x 1416 |
| Maximum Streams | 4 simultaneous streams |
| S/N Ratio | 63 dB |
| Dynamic Range | 60 dB |
| Video Streaming | Adjustable resolution, quality and bitrate, Configurable video cropping for bandwidth saving Smart Stream |
| Image Settings | Time stamp, text overlay, flip & mirror, scheduled profile settings, configurable brightness/contrast/saturation/sharpness, white balance, exposure control, gain, backlight compensation, privacy masks |
| Audio | |
| Compression | G.711, G.726 |
| Interface | External microphone input |
| External line output | |
| Network | |
| Users | Live viewing for up to 10 clients |
| Protocols | IPv4, IPv6, TCP/IP, HTTP, HTTPS, UPnP, RTSP/RTP/RTCP, IGMP, SMTP, FTP, DHCP, NTP, DNS, DDNS, PPPoE, CoS, QoS, SNMP, 802.1X, NTCIP, ARP, SSL, TLS |
| Interface | 10 Base-T/100 BaseTX Ethernet (RJ-45). It is highly recommended to use standard CAT5e & CAT6 cables which are compliant with the 3P/ETL standard. |
| ONVIF | Supported, specification available at www.onvif.org |
| Intelligent Video | |
| Video Motion Detection | Five-window video motion detection |
| Alarm and Event | |
| Alarm Triggers | Motion detection, manual trigger, digital input, periodical trigger, system boot, recording notification, camera tampering detection, audio detection |
| Alarm Events | Event notification using HTTP, SMTP, FTP and NAS server, SD Card. File upload via HTTP, SMTP, FTP, NAS server and SD card |
| General | |
| Connectors | RJ-45 cable connector for Network/PoE connection |
| Audio input | |
| Audio output | |
| 24VAC power input | |
| Digital input x 1 | |
| Digital output x 1 | |
| LED Indicator | System power and status indicator |
| Power Input | 24VAC |
| IEEE 802.3at PoE Class 4 | |
| Power Consumption | 24VAC: |
| Max. 41.5W/8.5W (Heater on/off) | |
| IEEE 802.3at PoE: | |
| Max. 23.5W/8.5W (Heater on/off) | |
| Weight | 1242.2 g |
| Casing | Weather-proof IP66-rated and Vandal-proof IK10-rated housing |
| Safety Certifications | CE, LVD, FCC Class A, VCCI, C-Tick, UL |
| Operating Temperature | AC 24V: |
| Starting Temperature: -40°C ~ 50°C (-40°F ~ 122°F) | |
| Working Temperature: -50°C ~ 50°C (-58°F ~ 122°F) | |
| Starting Temperature: -20°C ~ 50°C (-4°F ~ 122°F) | |
| Working Temperature: -20°C ~ 50°C (-4°F ~ 122°F) | |
| Humidity | 90% |
| System Requirements | |
| Operating System | Microsoft Windows 8/7/Vista/XP/2000 |
| Web Browser | Mozilla Firefox 7~43 (streaming only) |
| Internet Explorer 7/8/9/10/11 | |
| Other Players | VLC: 1.1.11 or above |
| Quicktime: 7 or above | |
-Bảo hành: 36 tháng.
